CinemaSnap MX 235 Side Masking Screen
The Best Home Theatre Solution Available
The ultimate home theatre experience is CinemaScope, just as the movie studios intended. With the new CinemaSnap 235 you can have the best of both worlds: 2.35:1 CinemaScope for Blu-ray discs, and, by using the motorised side masking system, reshape the screen to 16:9 HDTV for widescreen TV broadcasts.
2.35:1 CinemaScope to 16:9 HDTV at the push of a button. Designed to work with projectors that use anamorphic lens technology.
For your home theatre there is nothing that compares with the perfect lay flat of a fixed frame screen and the Matrix White or Micro Perforated surface delivers the additional resolution and colour saturation that has become an industry hallmark for cinema perfection. Combined with 235 side masking, you have the best home theatre solution available.
Key Features
- Wall mounted screen system with side masking for dual format CinemaScope to HDTV formats
- 84” diagonal up to 180” diagonal - Custom sizes & formats available upon request
- Hi Res Matrix White - Gain 1.1
- Aluminium construction with flocked frame for projector over-scan reduction
- 78 mm side and bottom borders (165 mm top border)
- Original movie aspect ratio 2.35:1

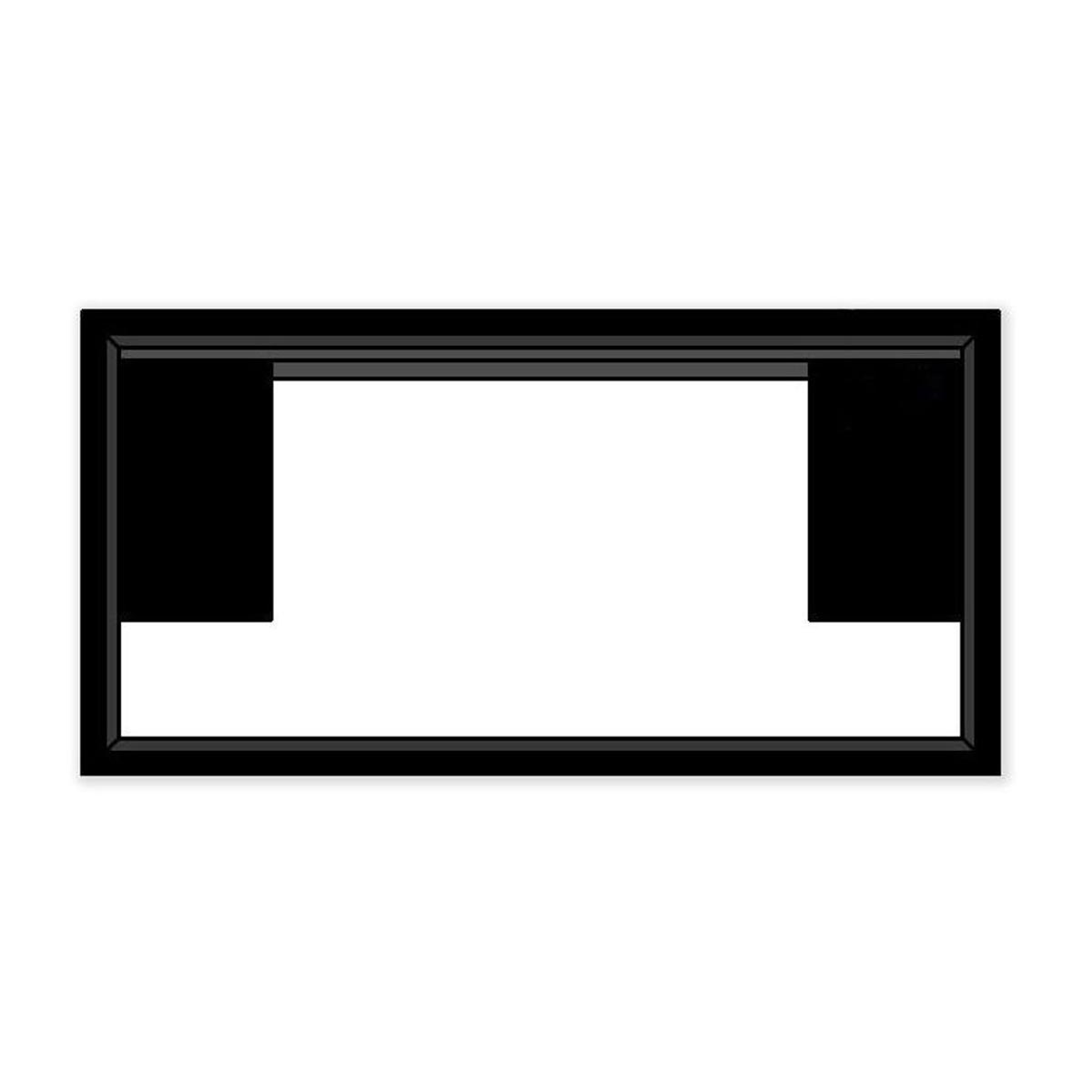

- Integrated side masking for 16:9
- Perfect lay flat
- Flush sitting masking, with no shadow-line
- Designed and manufactured in Australia
Screen Specifications
| Screen Size (2.35:1 / 16:9) | Viewable Area (W x H) | Screen Size Inc. Frame (W x H) |
| 84" | 1965 / 1485 x 835 mm | 2121 x 1078 mm |
| 92" | 2155 / 1625 x 915 mm | 2311 x 1158 mm |
| 96" | 2245 / 1700 x 955 mm | 2401 x 1198 mm |
| 100" | 2340 / 1770 x 995 mm | 2496 x 1238 mm |
| 110" | 2575 / 1950 x 1095 mm | 2731 x 1338 mm |
| 120" | 2810 / 2125 x 1195 mm | 2966 x 1438 mm |
| 130" | 3045 / 2305 x 1295 mm | 3201 x 1438 mm |
| 140" | 3280 / 2480 x 1395 mm | 3436 x 1638 mm |
| 150" | 3515 / 2660 x 1495 mm | 3671 x 1738 mm |
| 160" | 3750 / 2835 x 1595 mm | 3906 x 1838 mm |
| 170" | 3980 / 3015 x 1695 mm | 4136 x 1938 mm |
| 180" | 4215 / 3190 x 1795 mm | 4371 x 2038 mm |
