ElectroMotion FX2
ElectroMotion FX2 Surround Speakers

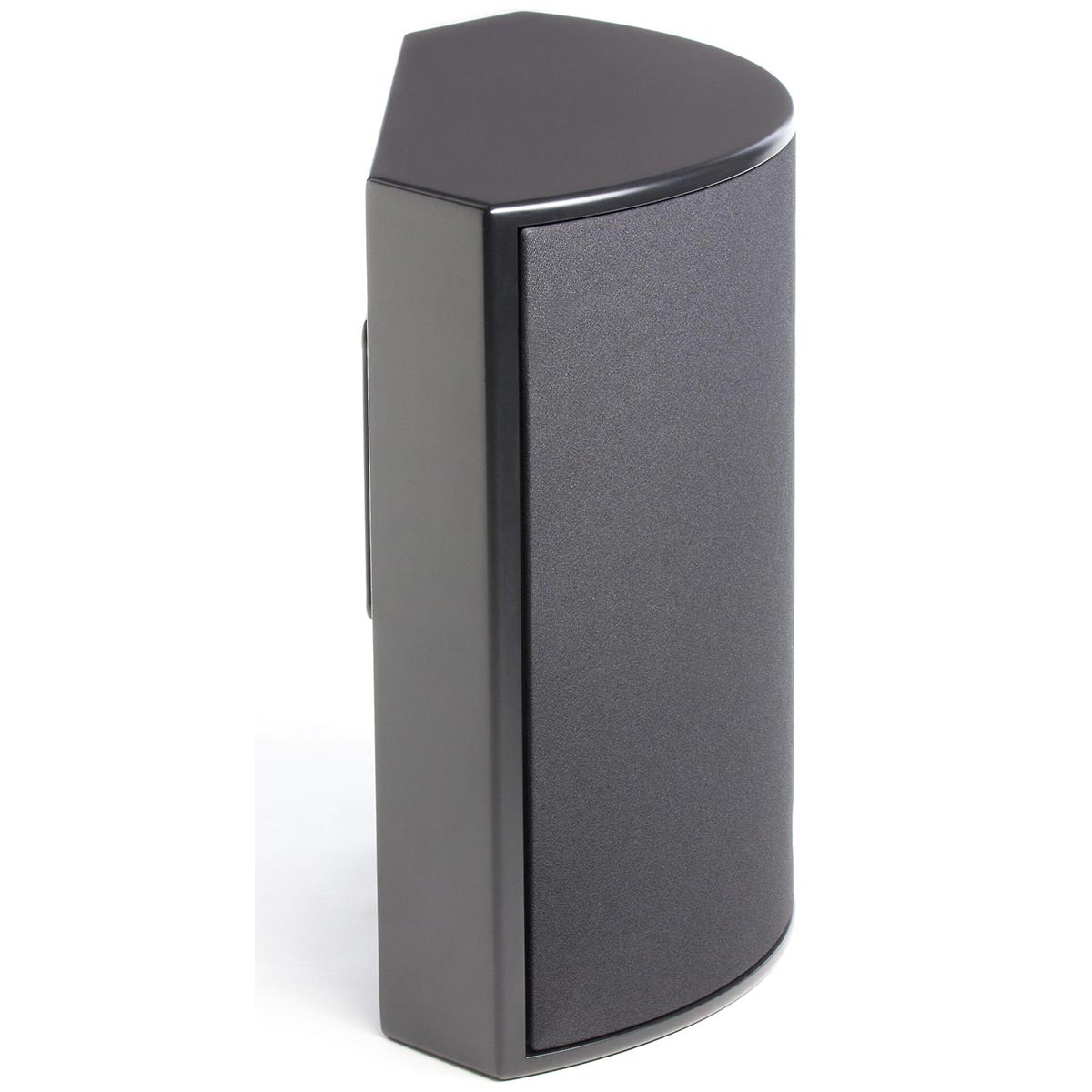

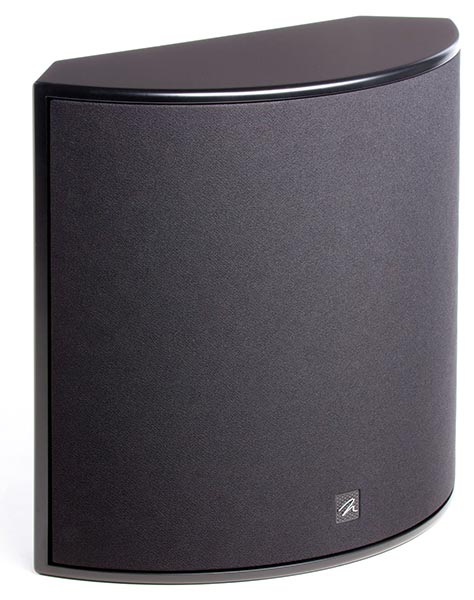

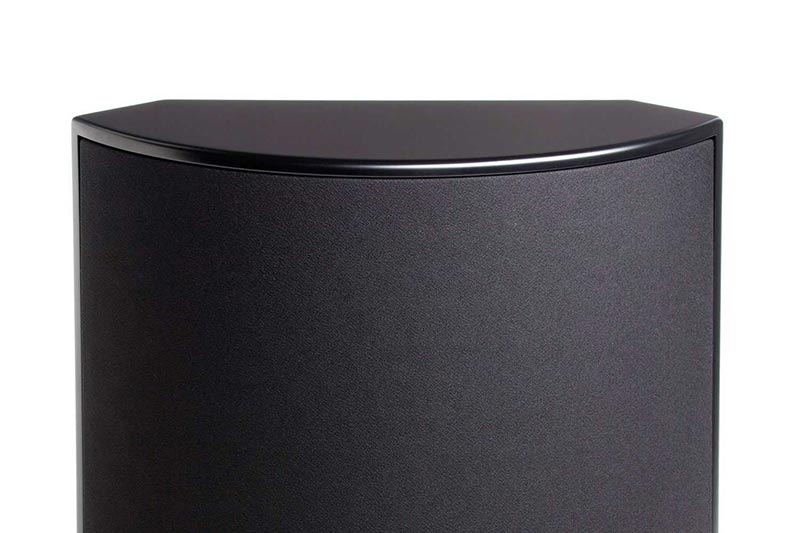

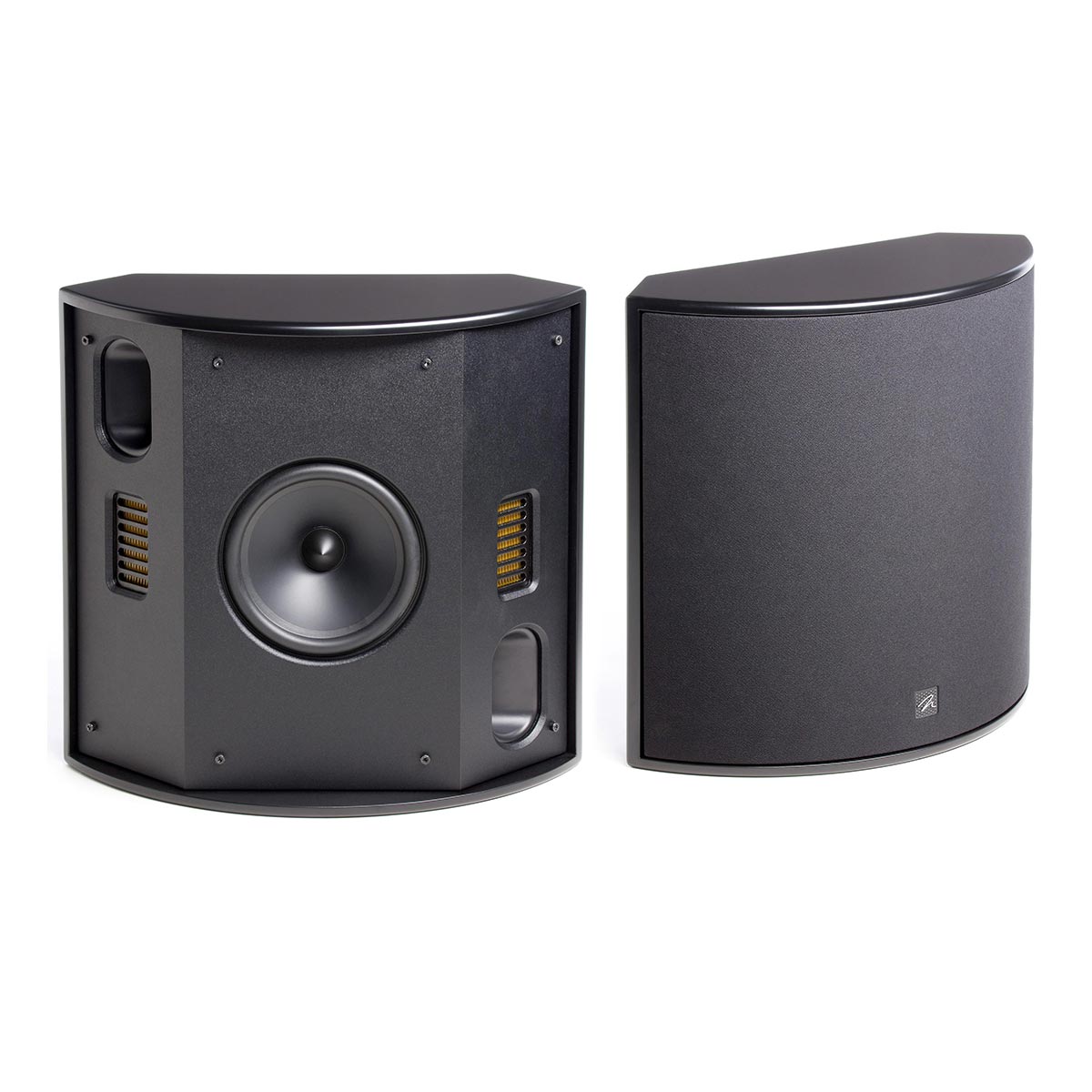

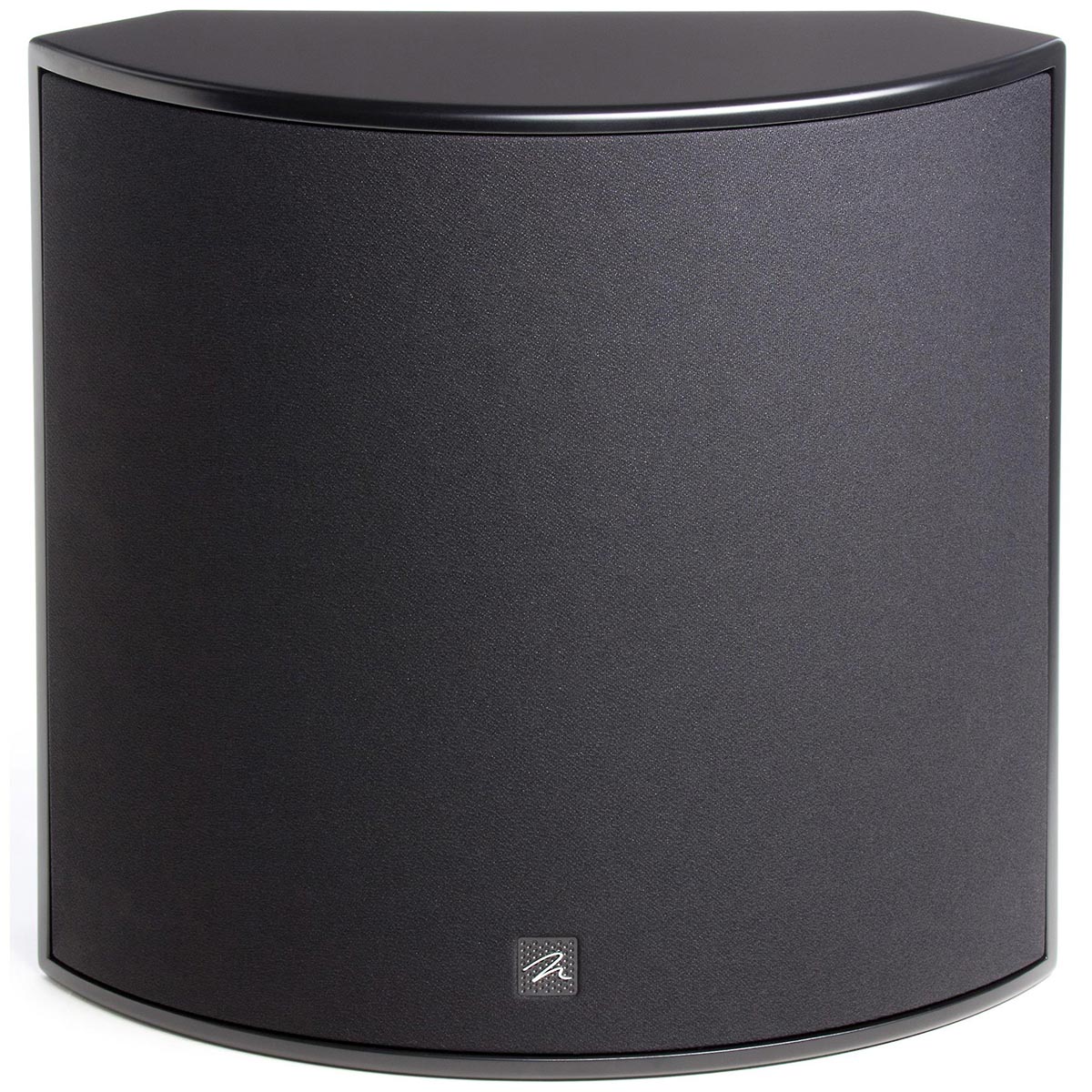

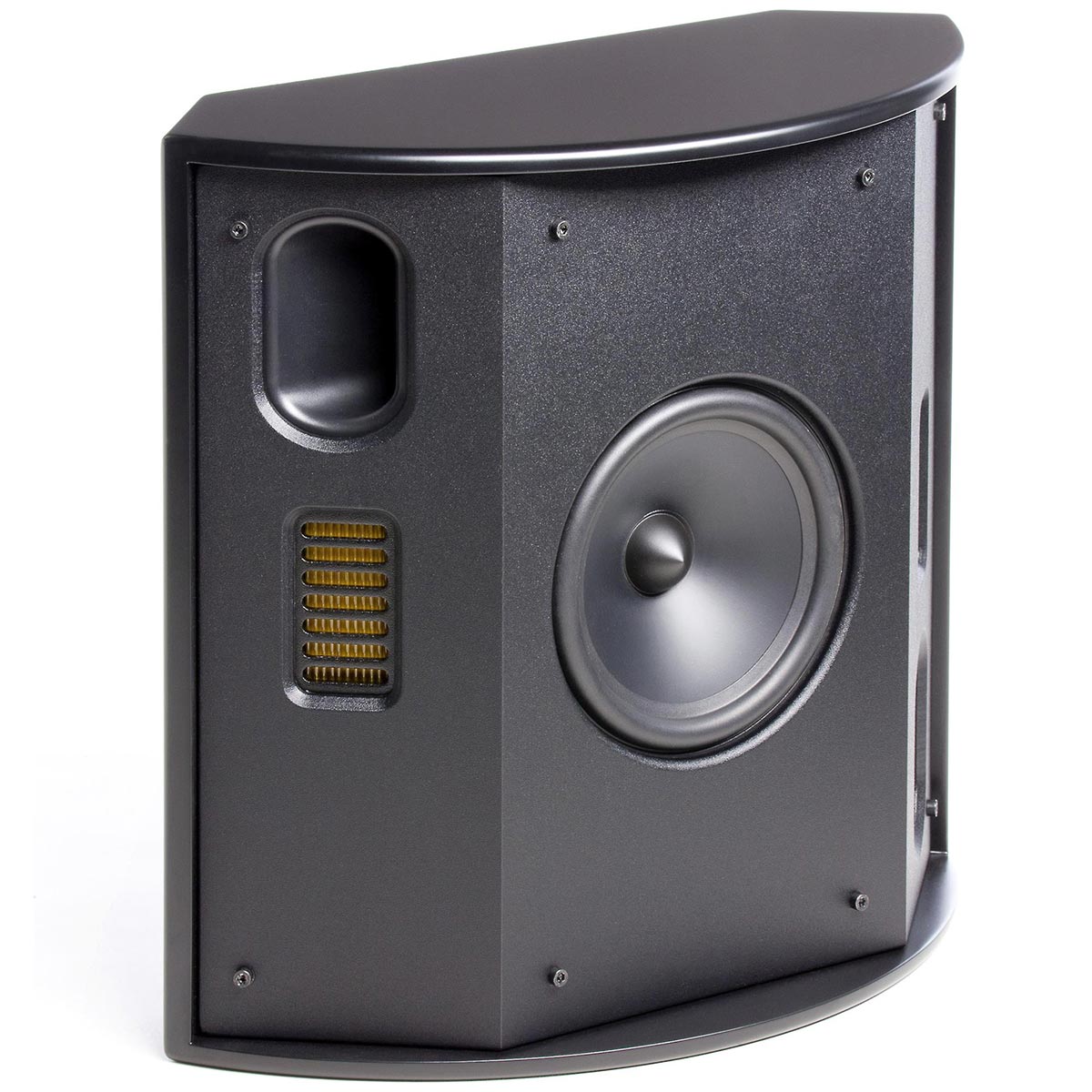

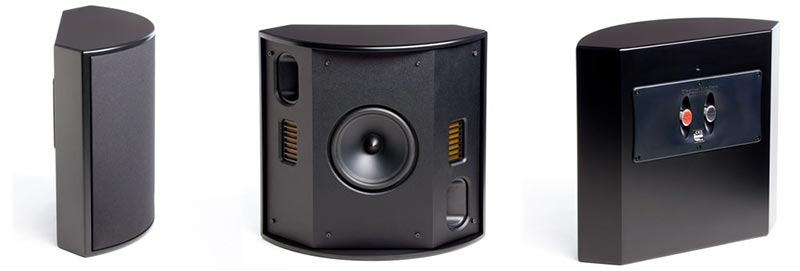

The EM-FX2 features dual Folded Motion XT tweeters in a wide-dispersion array ideally suited for surround channel applications. A single 6.5-inch doped fibre-cone woofer provides powerful low-frequency extension. Available in a black satin finish, the EM-FX2 is designed to corner mount, wall mount or angle-wall mount for versatile surround sound placement in any room.

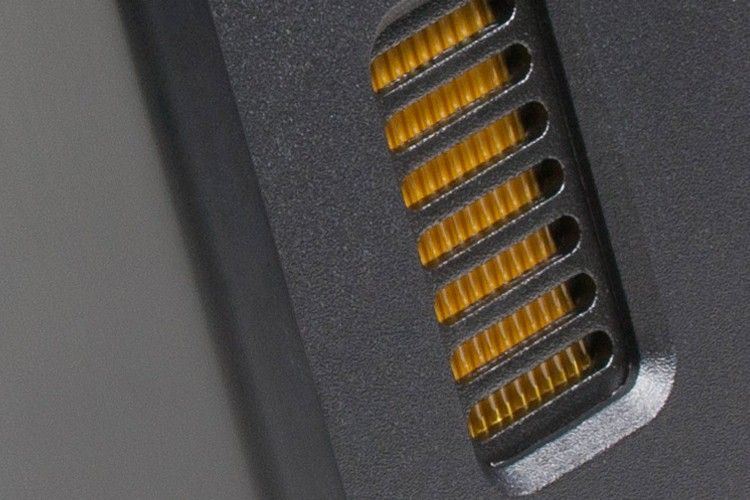

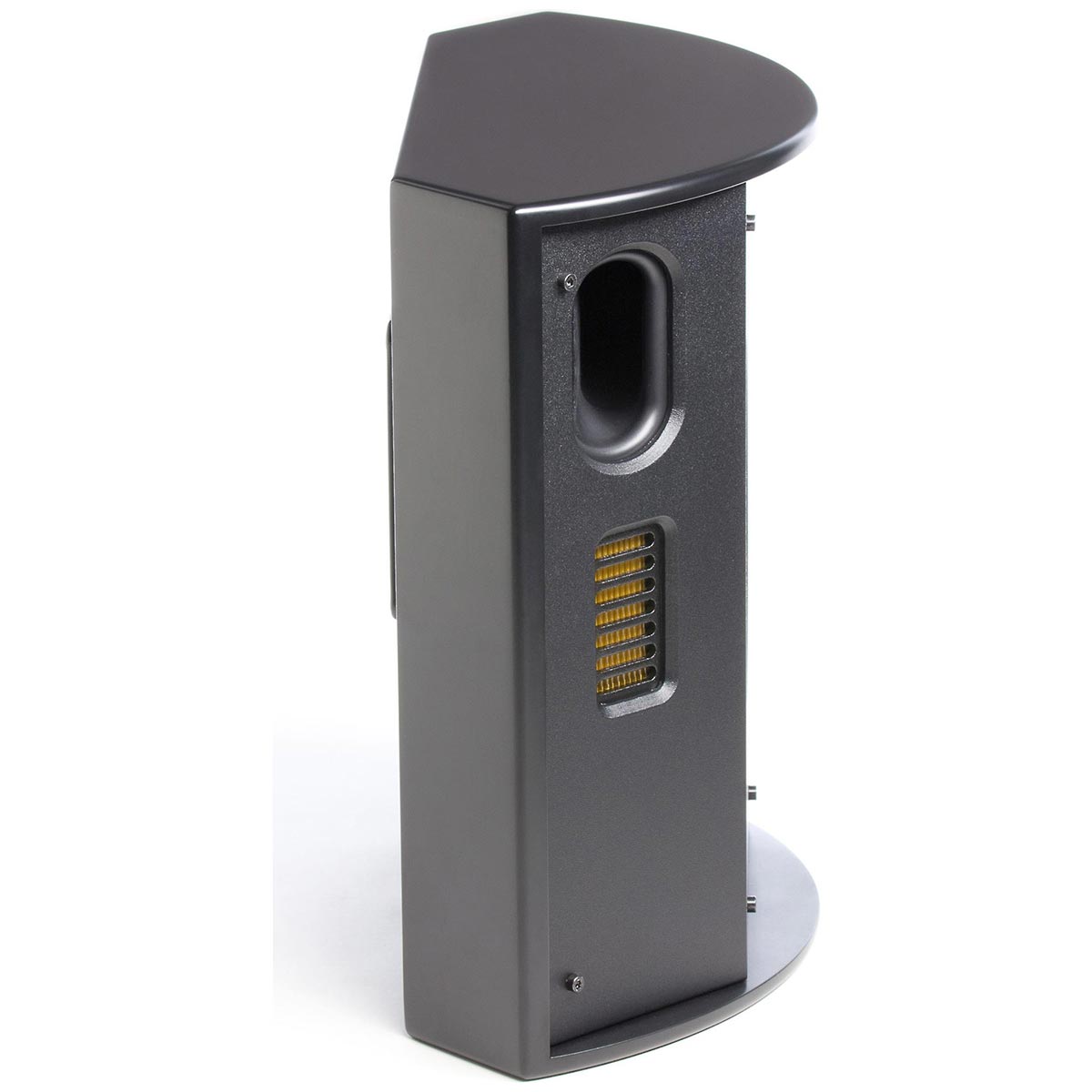

Folded Motion XT Tweeter
MartinLogan's larger, low distortion Folded Motion XT tweeter boasts a radiating surface 40% larger than those found in the award-winning Motion® Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless centre channel performance.
Slender Profile
When mounted on a flat wall, the EM-FX2 protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.
| Specifications | |
| Frequency Response | 55 Hz – 25 kHz ±3 dB |
| Recommended Amplifier Power | 20 — 200 watts per channel |
| Horizontal Dispersion | 160° |
| Vertical Dispersion | 30° |
| Sensitivity | 93 dB @ 2.83 volts/metre |
| Impedance | 5 ohms (Compatible with 4, 6, or 8 ohm rated amplifiers) |
| Crossover Frequency | 2,300 Hz |
| High Frequency Transducer | Two 1.25" x 2.4" (3.2 cm x 6.1 cm) Folded Motion XT Transducers with 4.5" x 2.75" (11.4 cm x 7 cm) diaphragm |
| Low Frequency Transducer | 6.5" (16.5 cm) paper cone with cast aluminium basket. Ported. |
| Components | Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection. |

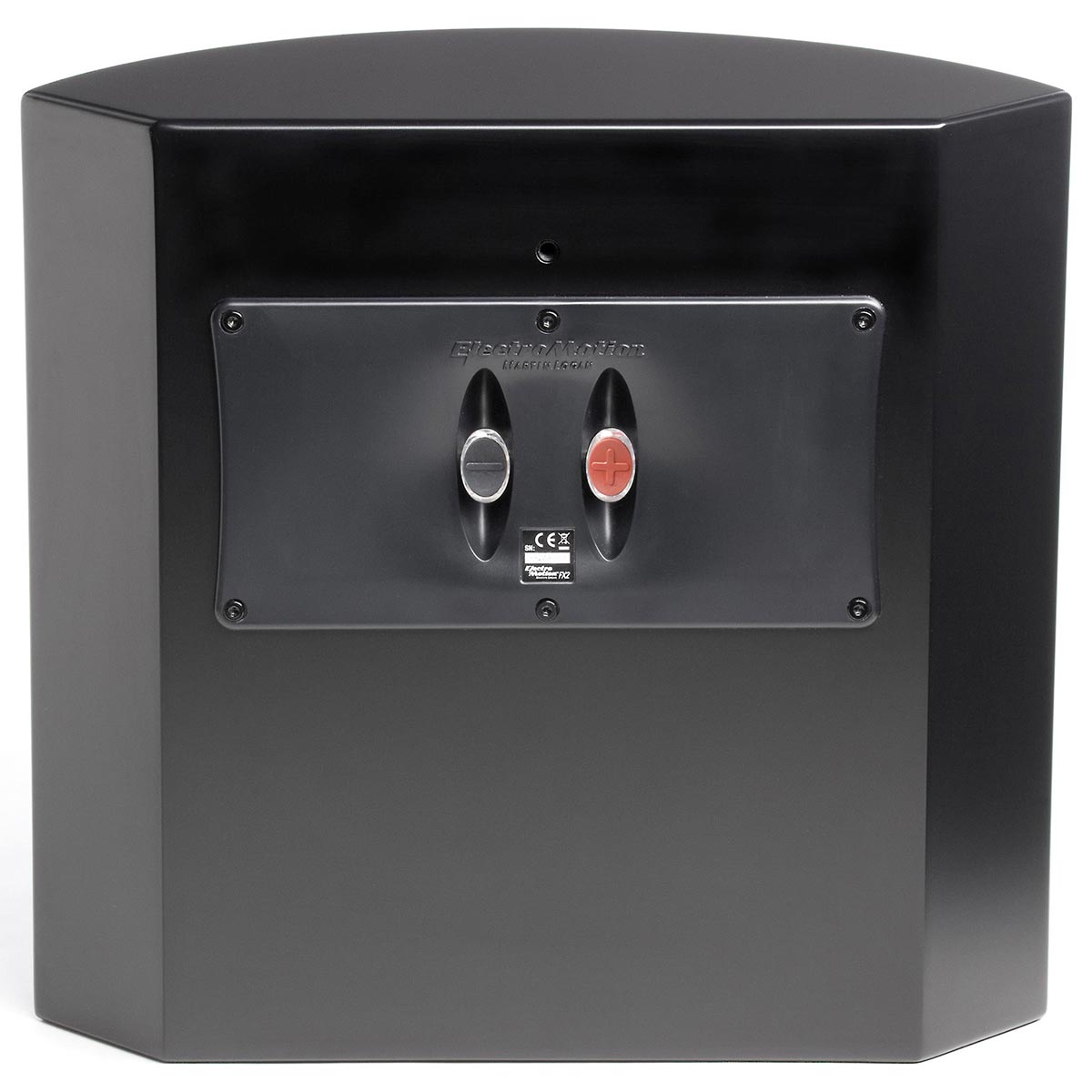

| Inputs | Push style with banana jacks |
| Weight | 16 lb (7.3 kg) |
| Dimensions | 14.9" x 14" x 6.8" (37.9 cm x 35.5 cm x 17.2 cm) |
