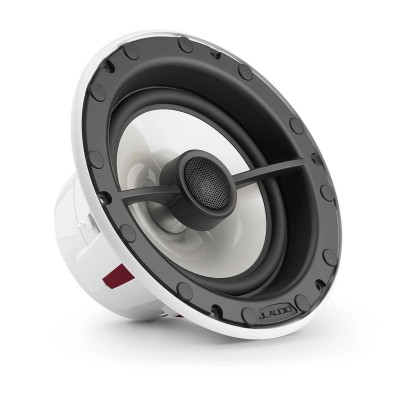

7.7-inch (196 mm) Pavilion™ Outdoor In-Ceiling Speaker, Flush-Mount Coaxial
Pavilion™ Outdoor In-Ceiling Speaker - 7.7-inch Coaxial (80 W, 4 Ω) - White Trim Ring, Flush-Mount Grille
Pavilion™ in-ceiling speakers are engineered to deliver remarkable audio performance and durability in outdoor residential applications. Each model features a low-profile mounting bezel with an integrated tweeter bridge and a flush-mount grille for a discreet visual appearance.
For ease of installation, all Pavilion™ speakers utilise an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials. The fine mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor.
An oversized 7.7-inch, DMA-optimised, long excursion woofer design delivers increased output and a 1.0-inch (25 mm) pure silk dome tweeter, specially treated to withstand the harshest outdoor environments, delivers crystal-clear high-frequency sound, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, guarded against the elements. Also included, is an automatic, solid-state tweeter protection circuit to minimise the possibility of tweeter failure.
Although PV-FX7 Coaxial Speakers can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 80-160 W of continuous power per channel.
Production of all Pavilion™ loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Sold individually.
| General Specifications | |
| Continuous Power Handling (RMS) | 80 W |
| Recommended Amplifier Power (RMS)) | 40 - 160 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 45 Hz - 25 KHz ± 3 dB |
| Coaxial Physical Specifications | |
| Frame Outer Diameter (A) | 232 mm / 9.13" |
| Bolt Hole Circle Diameter (B) | 208 mm / 8.18" |
| Frontal Grille Protrusion* (C) | 10 mm / 0.38" |
| Mounting Hole Diameter (D) | 194 mm / 7.625" |
| Mounting Depth (E) | 108 mm / 4.26" |
| Net Weight | 2.43 kg / 5.35 lb |
* Frontal grille protrusion measured from mounting surface.
