WSS130
Marking the entry point into the Super Slim in-wall speaker range, the WSS130 is perfectly suited to multi-room audio and home cinema installations. A 25 mm Gold Dome tweeter augments MMP II cone drivers, enabling a smooth overall sonic character.
The WSS line offers a refreshingly simple ‘good, better, best’ menu. The Super Slim WSS speakers offer unique flexibility, performance, and elegant aesthetics to achieve perfect results for the most technical demanding applications.

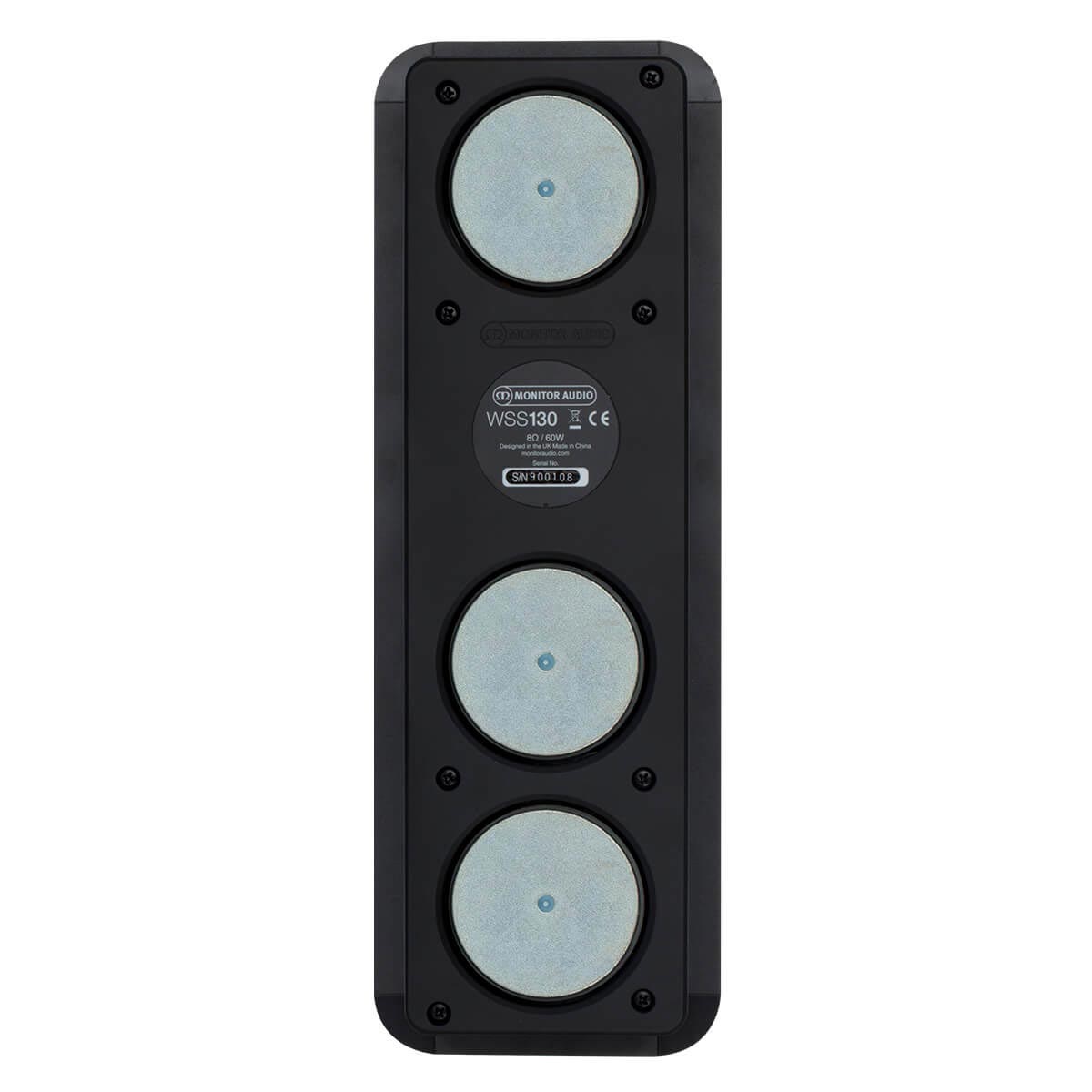

The WSS130 is the entry-point, and is ideal for general home theatre and music applications. Featuring three bass/mid-range drivers plus one tweeter, the speakers have been smartly designed to enable the performance of a significantly larger monitor. The three-driver layout is key here, as it helps keep the frontal profile look slender, as well as deliver a depth of a mere 50 mm. The WSS130 features MMP II cone drivers, augmented by a 25 mm Gold Dome tweeter. This MMP cone technology allows for a simple crossover design and smooth overall sound character.
The WSS130 includes Monitor Audio’s patented ‘tri-grip’ mounting system meaning you get a robust fixing. This system has been proven over the last decade in the CT and WT ranges, so you know it works brilliantly. All three models share the same footprint and pre-constriction bracket, providing simplicity as well as the option of specifying a higher performance model in the range before completion.
| Specifications | |
| Frequency Response (-6 db) | 75 Hz – 30 kHz |
| Nominal Impedance | 8 Ohms |
| Sensitivity (1 W @ 1 m) | 87 dB |
| Maximum SPL | 105.6 dBA |
| Power Handling (RMS) | 60 W – Full Range (100 W with Crossover set to 100 Hz @ 12 dB/Octave) |
| Recommended Amplifier Requirements | 10 – 100 W |
| Drive Unit Complement | 3 x 3" MMP II Cone Bass-Mid Drivers, 1 x 25 mm (1") C-CAM Gold Dome Tweeter |
| Crossover Recommendation Using AVR/Processor | 100 Hz at a Minimum of 12 dB/Octave (24 dB/Octave Optimum) |
| Overall Dimensions (Including Grille) | 385 x 140.5 mm (15 x 5 1/2") |
| Overall Depth (Including Grille) | 54.25 mm (2 1/8") |
| Mounting Depth | 50 mm (2") |
| Cut-Out Dimensions | 346 x 101 mm (13 1/2 x 4") |
| Connection | Gold Plated Sprung Push Terminals – For Bare Wire Connection up to 3 mm2 |
| Fixing Type | 6 Position Tri-Grip Dog Leg Fixings |
| Construction Material | Mineral Filled ABS Plastic, RoHS 2 Compliant. Painted Steel Grille |
| Weight | 1.4 kg (3 lb 2 oz) |
| Pre-Construction Bracket | WB3 Pre-Construction Bracket (Dark Blue) |
| Sold As | Single Unit |
