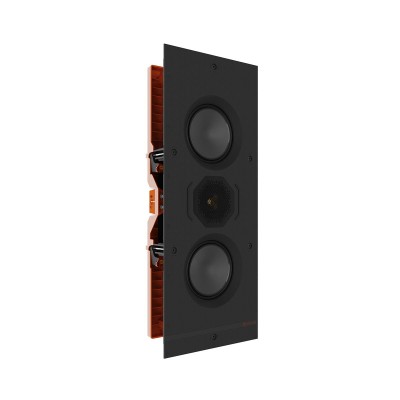

W1M
This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 2 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
| Specifications | |
| System Format | 2-Way |
| Channels | 1 |
| Frequency Response, Installed (-6 dB) | 40 Hz – 30 kHz |
| Nominal Impedance | 6 Ohm |
| Minimum Impedance (20 Hz – 20 kHz) | 4.8 Ohm @ 15 kHz |
| Sensitivity (2.83 Vrms @ 1 m, Installed) | 87 dB |
| Maximum Peak SPL (Single Speaker @ 1 m Z-Weighted) | 113 dB |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6 dB Crest Factor) | 75 W |
| Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) | 30 – 110 W |
| Drive Unit Complement | 2 x 5" (127 mm) C-CAM Mid-Bass Driver, 1 x 1" (25 mm) C-CAM Tweeter |
| Crossover Frequency | LF/HF: 2.75 kHz |
| Mounting Depth | 85 mm (3 3/8") |
| Cut-Out (L x W) | 527 x 198 mm (20 3/4" x 7 13/16") |
| External Dimensions (Including Grille (H x W x D)) | 540 x 211 x 90 mm (2 11/4" x 8 5/16" x 3 9/16") |
| Weight (Each) | 3.4 kg (7 lb 8 oz) |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte Black & Orange |
| Sold As | Single Unit |
