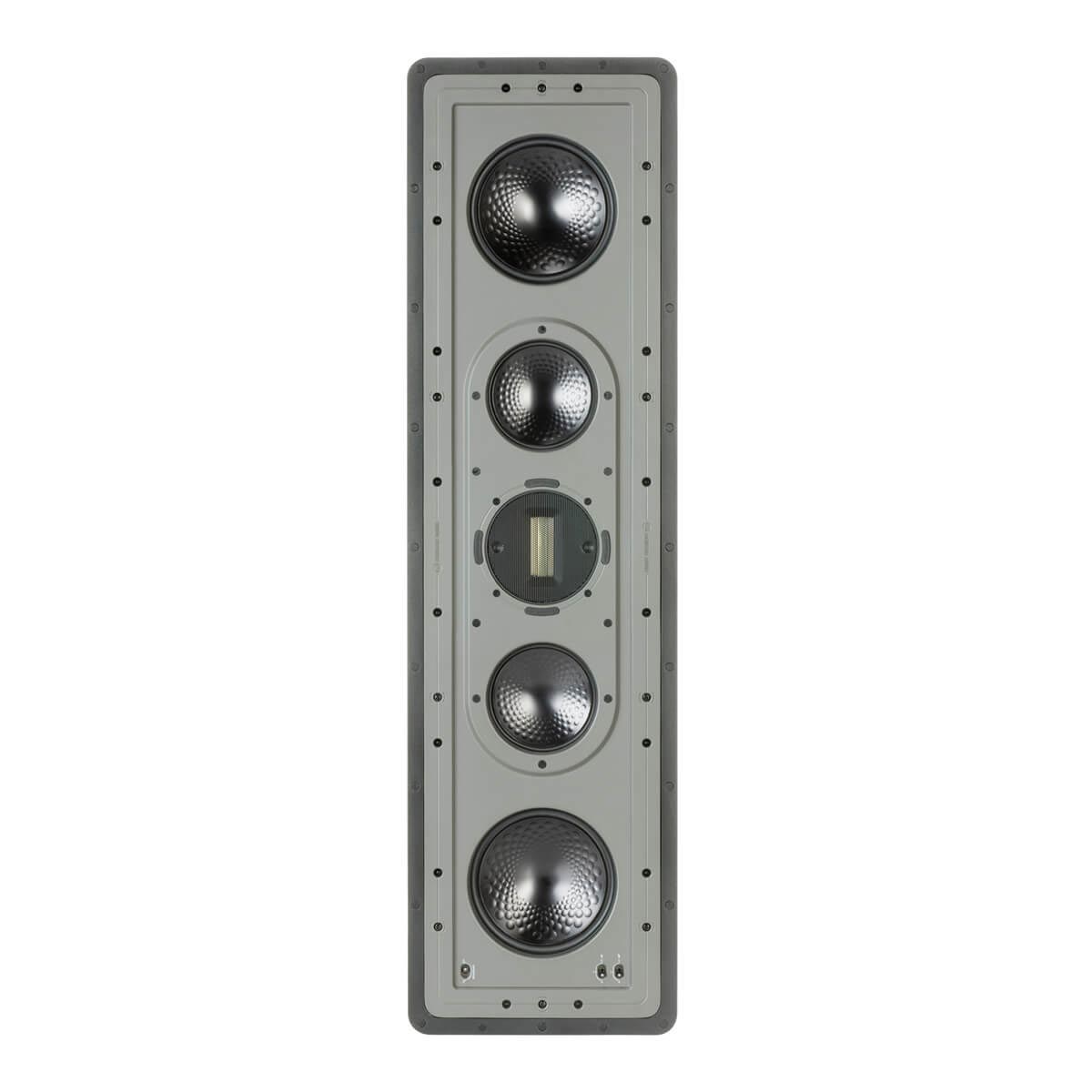

CP-IW460X
The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.
The CP-IW460X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material with RST (Rigid Surface Technology) deployed in dual 6.5" bass drivers and twin 4" mids astride a high frequency, air motion ribbon tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet with die-cast Aluminium baffle.
Important: Do not paint the CP-IW260X and CP-IW460X grilles, as spare scrims are not supplied.
Key Features

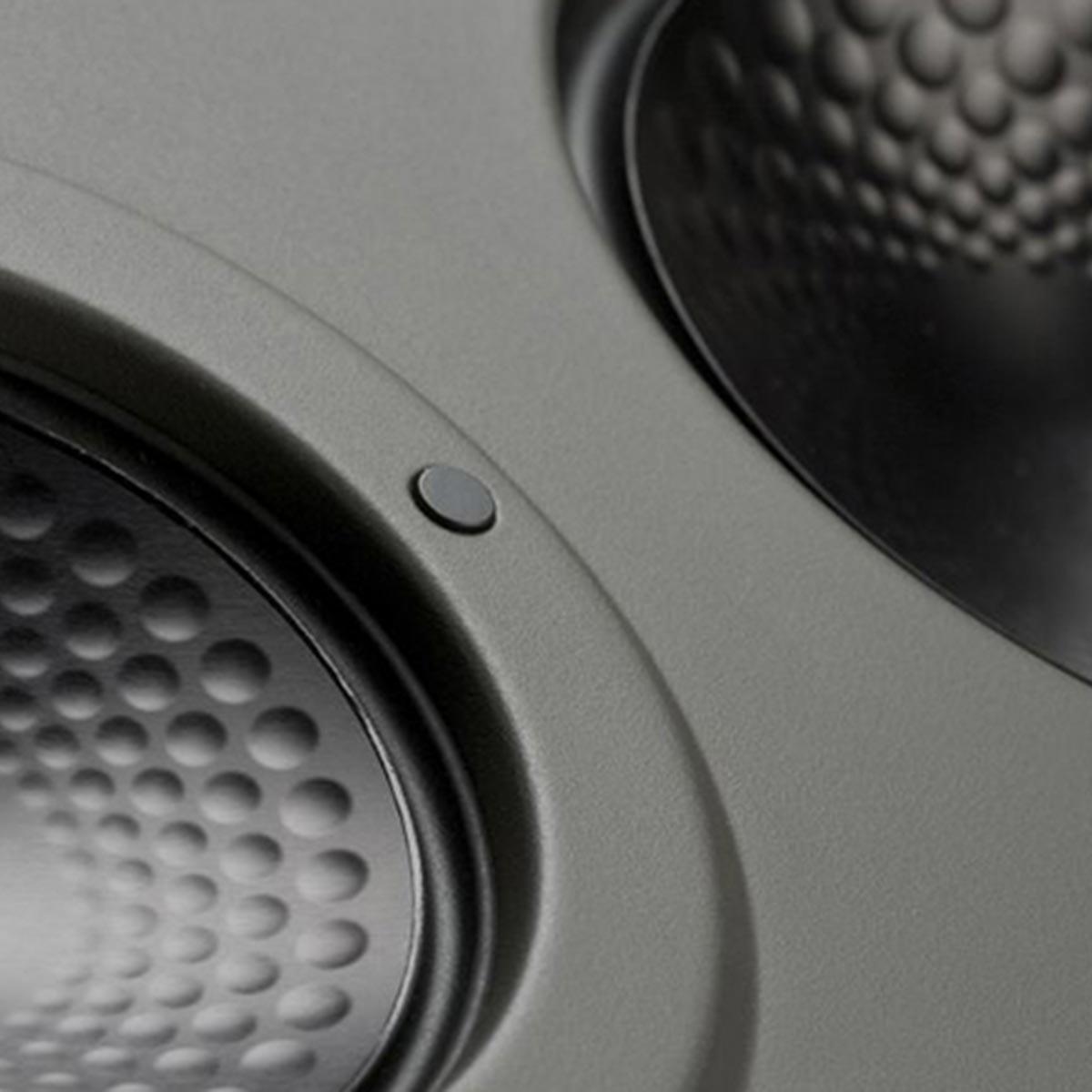

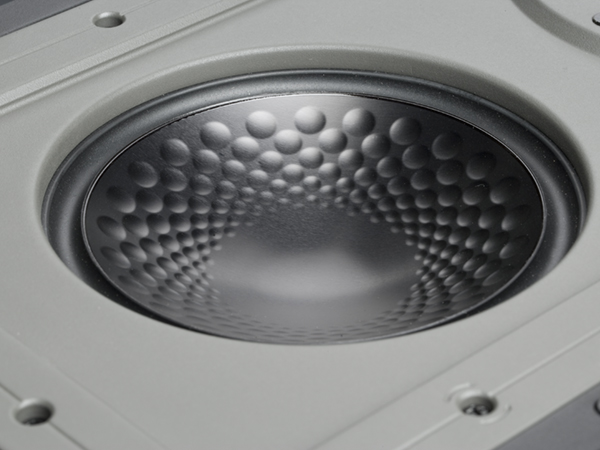

- Dual 6.5” C-CAM bass drivers featuring RST ‘dimpled’ cone technology
- Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
- Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies
- C-CAM Ribbon High Frequency transducer

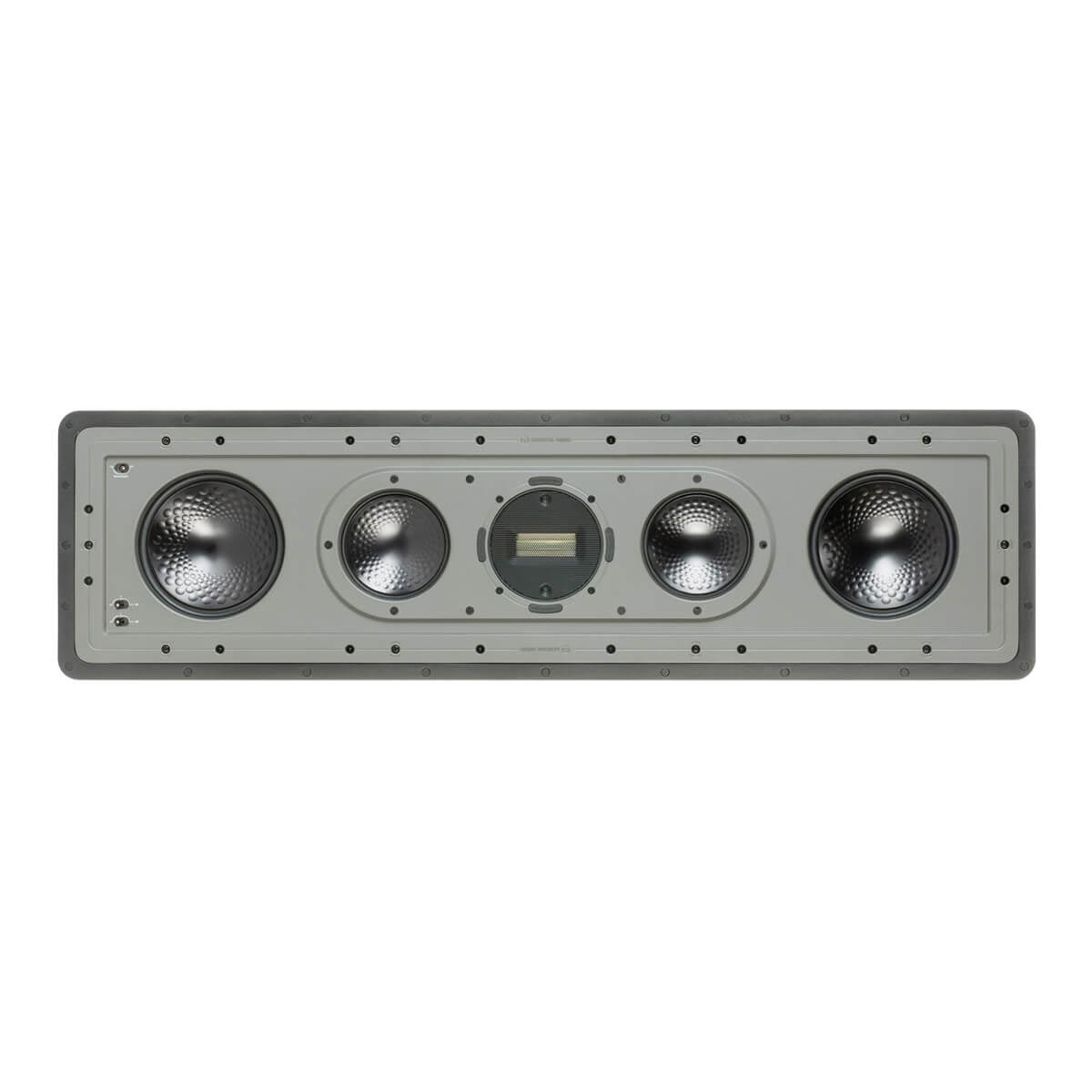

- Innovative HF rotating system to facilitate portrait or landscape orientation
- Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
- Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
- High overall efficiency and maximum SPL for powerful home theatre installations
- High power handling
- Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
- High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
- Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
- Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
| Specifications | |
| Frequency Response | 50 Hz – 60 kHz (-6 dB Typical In Room Response) |
| Nominal Impedance | 6 Ohms |
| Sensitivity (1 W @ 1 m) | 89 dB |
| Maximum SPL | 113.8 dBA |
| Power Handling (RMS) | 150 W |
| Recommended Amplifier Requirements | 60 – 150 W |
| Crossover Frequency | L.F: 500 Hz @ 12 dB/Octave, M.F: 500 Hz @ 12 dB/Octave & 3 kHz @ 18 dB/Octave, H.F: 3 kHz @ 18 dB/Octave |
| Drive Unit Complement | 2 x 6.5” C-CAM Bass Drivers with RST Cone Technology, 2 x 4” C-CAM Mid-Range Drivers with RST Cone Technology, 1 x C-CAM H.F Ribbon Transducer |
| Adjustment Controls | Boundary Compensation (On/Off), MF Level: +1/0/-1 (dB), HF Level: +1/0/-1 (dB) |
| Overall Dimensions (H x W) | 907 x 257 mm (35 3/4 x 10 1/8") |
| Overall Depth (Including Grille) | 102 mm (4") |
| Mounting Depth | 96 mm (3 3/4") |
| Cut-Out Dimensions | 880 x 230 mm (34 21/32 x 9") |
| Fixing Type | 10 x Tri-Grip Dog Leg Fixings |
| Construction Material | Cast Polymer Enclosure with Die-Cast Aluminium Baffle (RoHS 2 Compliant) |
| Weight | 12.98 kg (28 lb 6 oz) |
| Pre-Construction Bracket | WB12 Pre-Construction Bracket (Green) |
| Sold As | Single Unit |
