DS-180CDT In-Ceiling Speaker

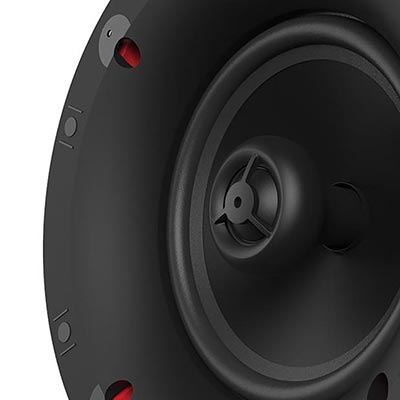

Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-180CDT features an 8” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilising the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
Key Features
- 8” Polypropylene woofer
- 1” Pivot Silk Dome tweeter
- Patented Sky Hook® Tool-Free Installation System
- Bezel-Free Magnetic Grille
Sky Hook Tool-Free Installation System
The exclusive Sky Hook® patented Cinch by Swarm Installation System engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of over-torquing. This fast, easy installation system reduces install time by up to 75%.
All New, Bezel-Free Magnetic Grille
A completely redesigned powdercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
Horn-Loaded Performance
Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
| Specifications | |
| Frequency Response | 73 Hz - 20 kHz +/- 3 dB |
| Sensitivity | 94 dB @ 2.83 V / 1 m |
| Power Handling (Continuous / Peak) | 50 W / 200 W |
| Impedance | 8 Ohms Compatible |
| High Frequency Driver | 1" (2.54 cm) Silk Dome Tweeter Mated to a Round Tractrix® Horn |
| Low Frequency Driver | 8" (20.32 cm) Polypropylene Woofer |
| Coverage Angle | 100° |
| Enclosure Material | ABS |
| Enclosure Type | Infinite Baffle |
| Cutout Diameter | 249 mm (9.8”) |
| Mounting Depth | 113 mm (4.45”) |
| Product Dimensions (H x W x D) | 273 x 273 x 115 mm (10.75” x 10.75” x 4.5”) |
| Weight | 3.36 kg (7.4 lb) |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Included Accessories | Flat Paintable Magnetic Grille |
| Installation Kit | IK-800-C II (Sold Separately) |
| Fire Rated Enclosure | ME-800-C (Sold Separately) |
