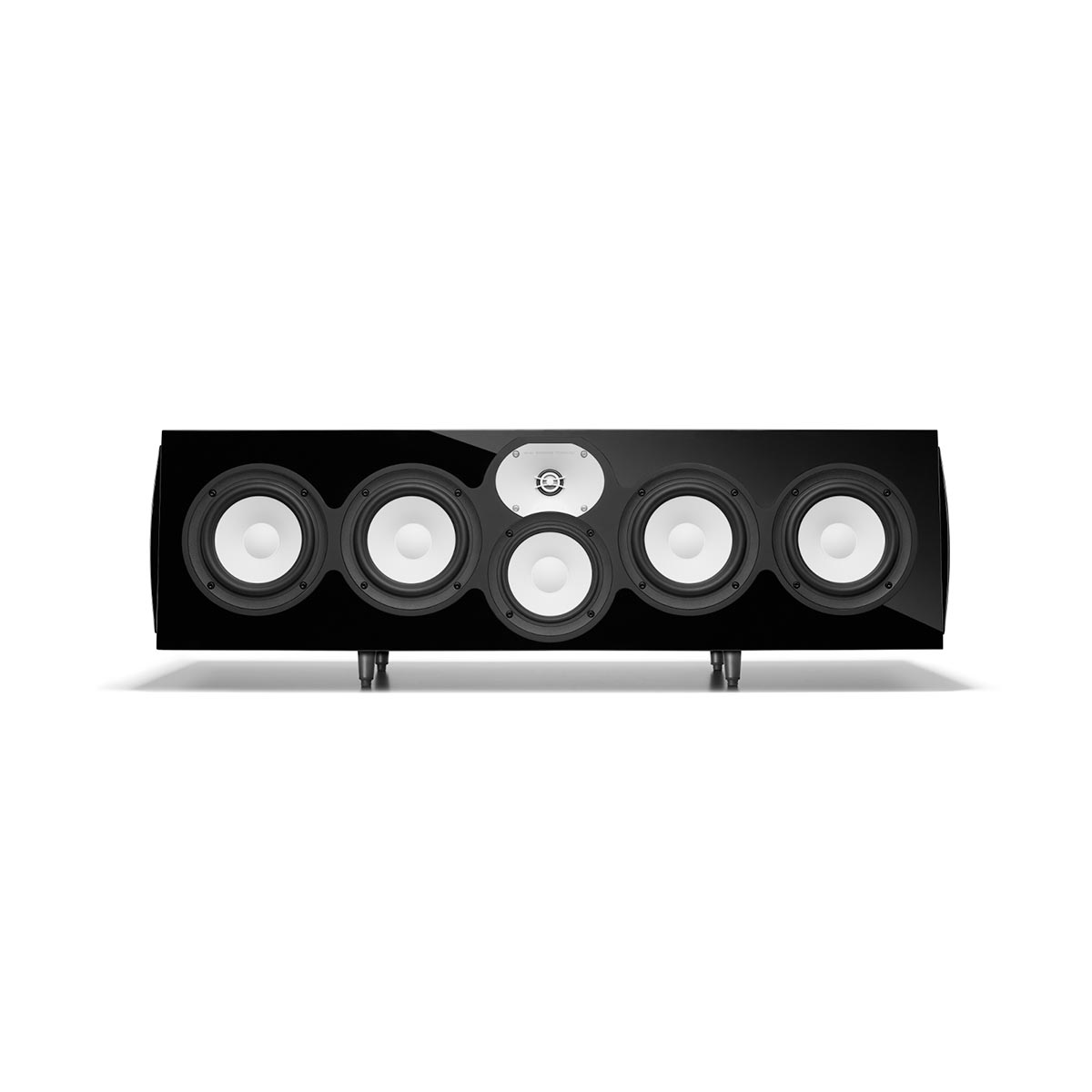

C426Be 3-Way Quadruple 6.5" Centre Channel Loudspeaker
The Revel C426Be joins our award-winning PerformaBe series as a high-performance centre channel loudspeaker for use in a multichannel home theatre environment. As part of the PerformaBe loudspeaker line, the C426Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful tweeter and 5th-generation ceramic-coated, cast-aluminium Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminium or titanium tweeters.
Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminium and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight. Beryllium tweeters are the centrepiece of the Revel PerformaBe loudspeaker series.
The 5.25-inch (130mm) midrange and quadruple 6.5-inch (165mm) aluminium cone woofers utilise Deep Ceramic Composite (DCC) cones for improved performance. DCC is a plasma electrolytic oxidation process that uses a plasma discharge to create a coarse ceramic coating on both sides of the aluminium core. The deep ceramic layers sandwiching the aluminium core provide constrained layer damping that push cone breakup modes outside of the passband allowing the driver to maintain ideal pistonic motion throughout its range. DCC cones combine with optimised motor magnetics to deliver improved mid- and low-frequency performance.
PerformaBe crossover networks utilise all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow Revel's world-class engineers to extract nuances and details from music that would otherwise be lost. Combined with traditional Revel high-order crossover slopes and proprietary Acoustic Lens waveguide geometry, transducer integration is seamless.

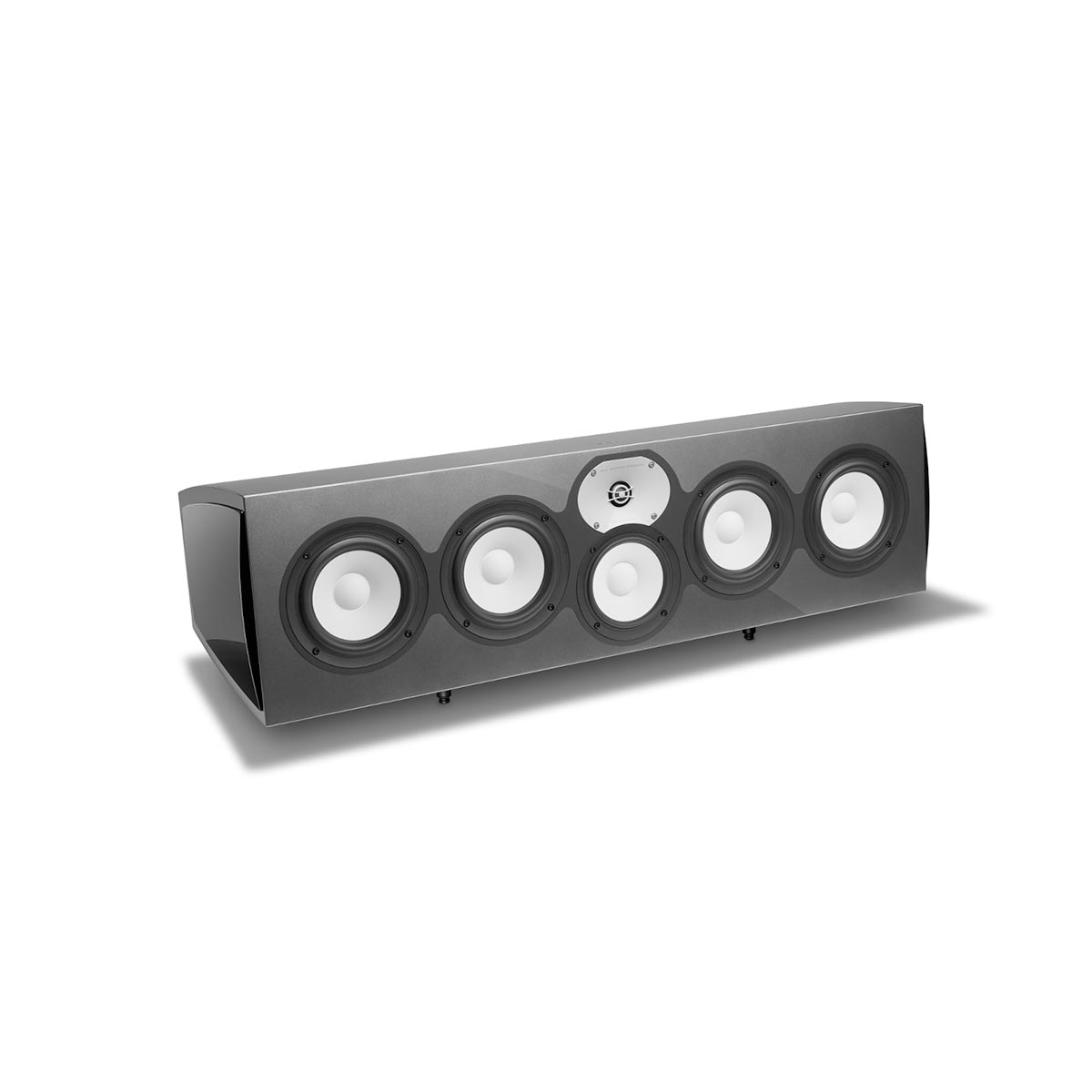

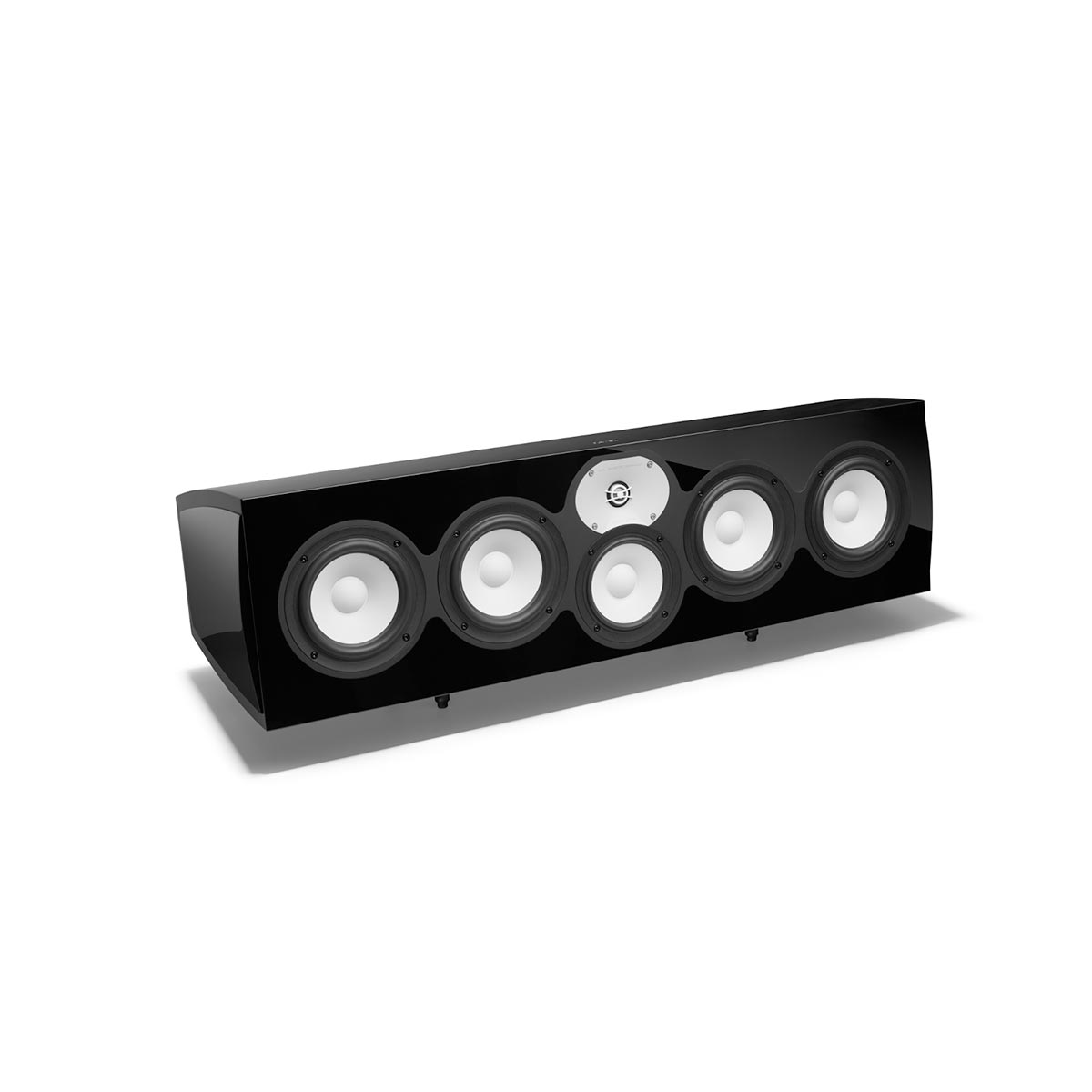

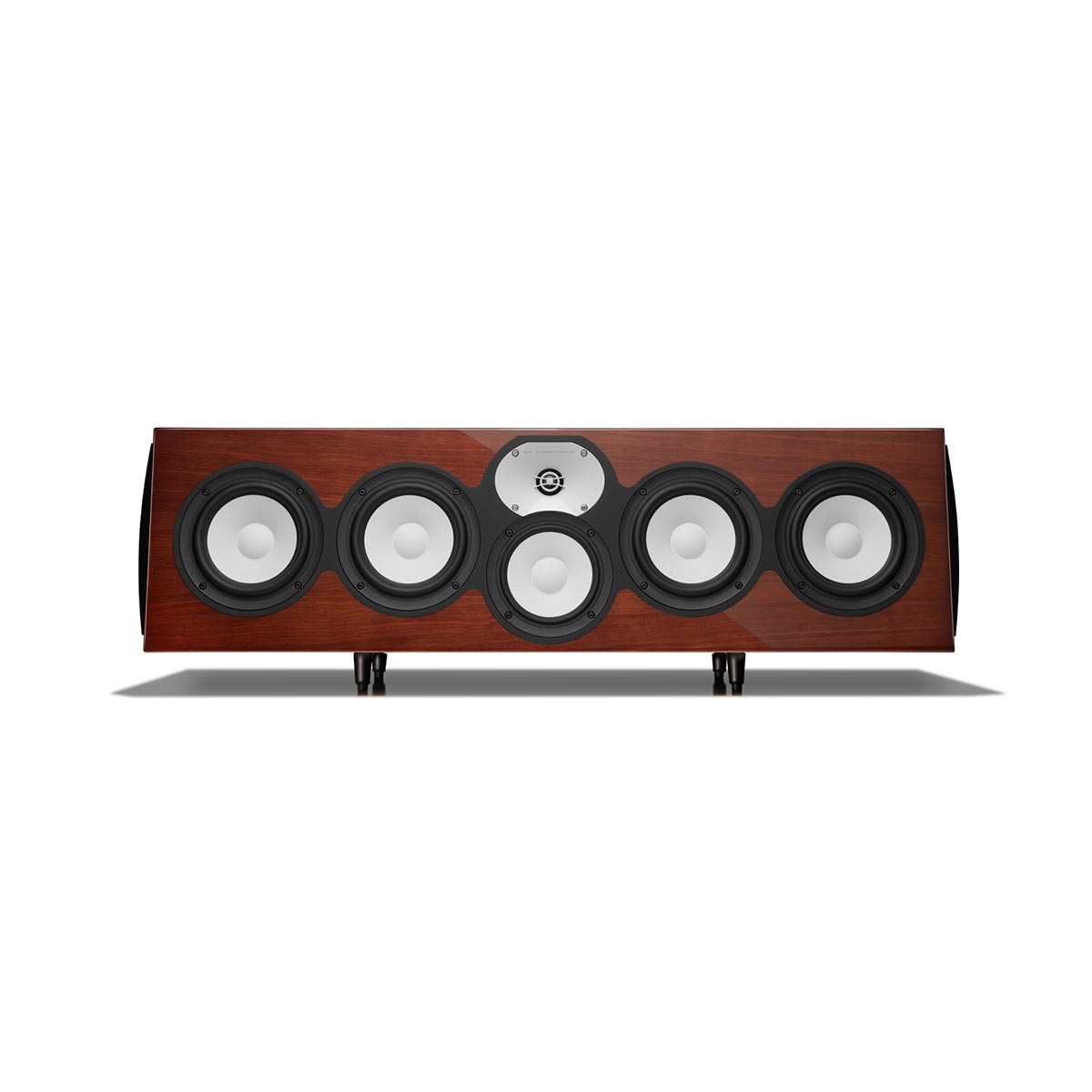

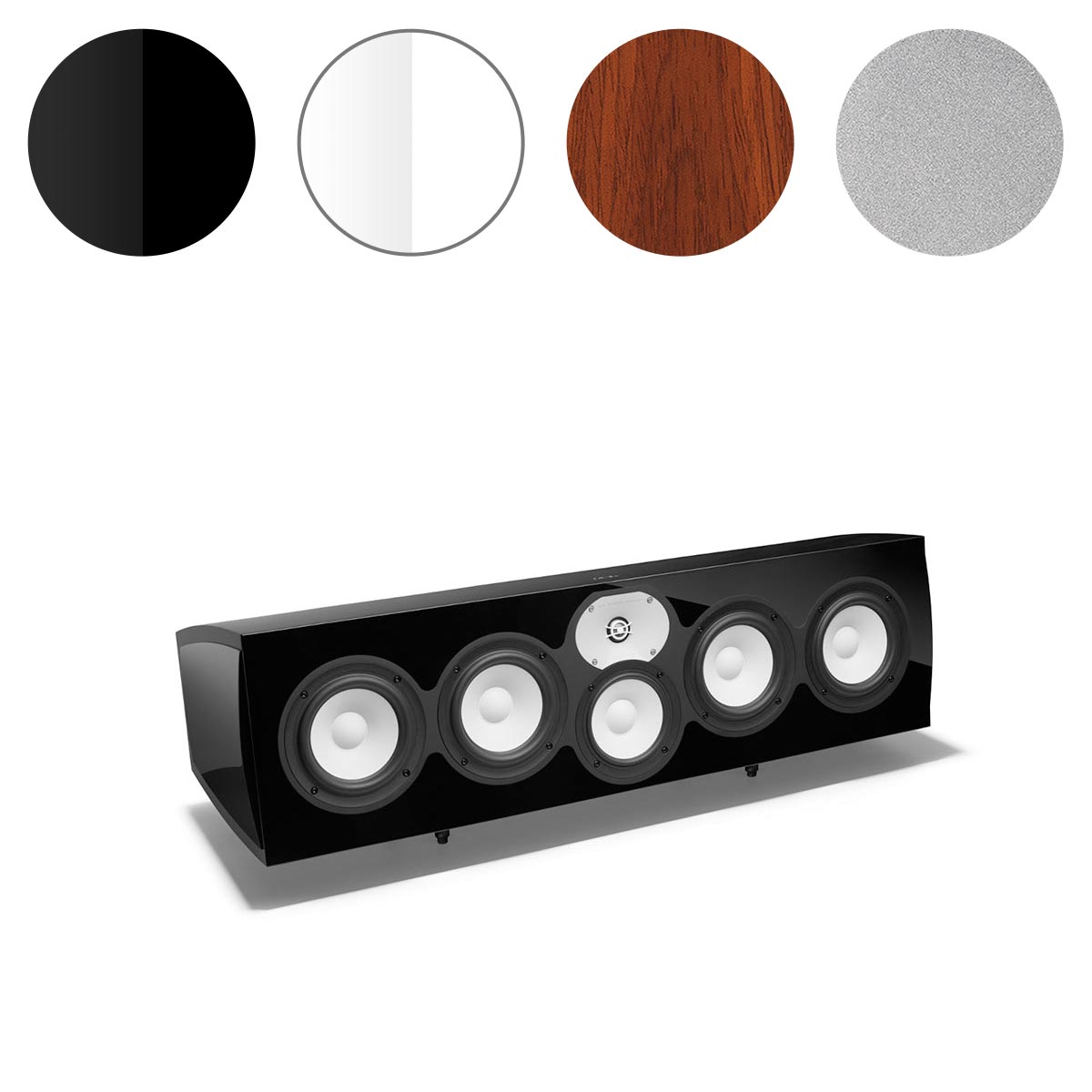

C426Be side panels are painted in stylish metallic black. The loudspeakers are available in a choice of four high-gloss finishes for seamless integration into any décor: Black, White, Walnut, and Metallic Silver.
Key Features
- 1-inch Beryllium dome tweeter
- 5th-generation acoustic lens waveguide
- Deep Ceramic Composite (DCC) cone midrange and woofers
- High-order crossovers with film capacitors and air core inductors

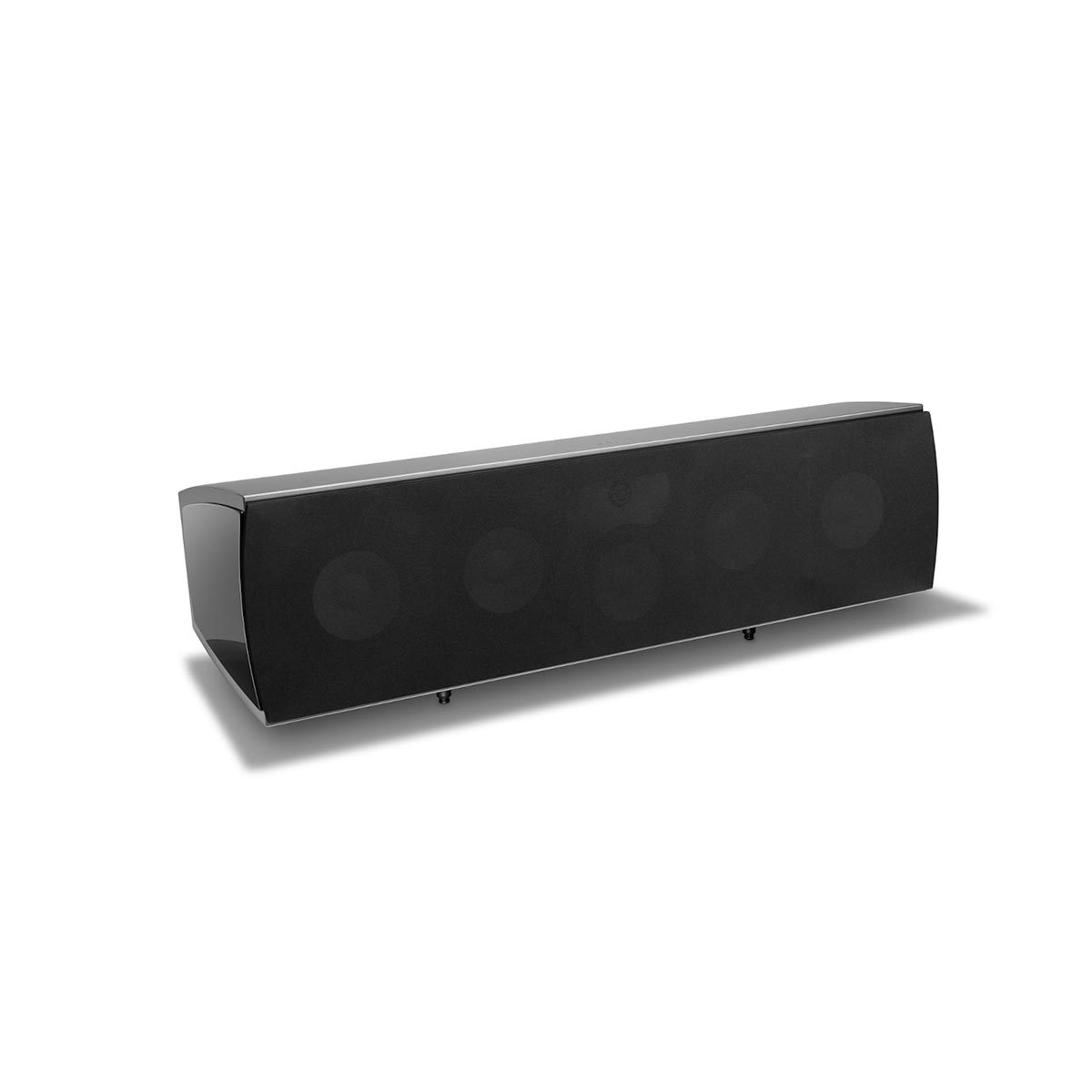

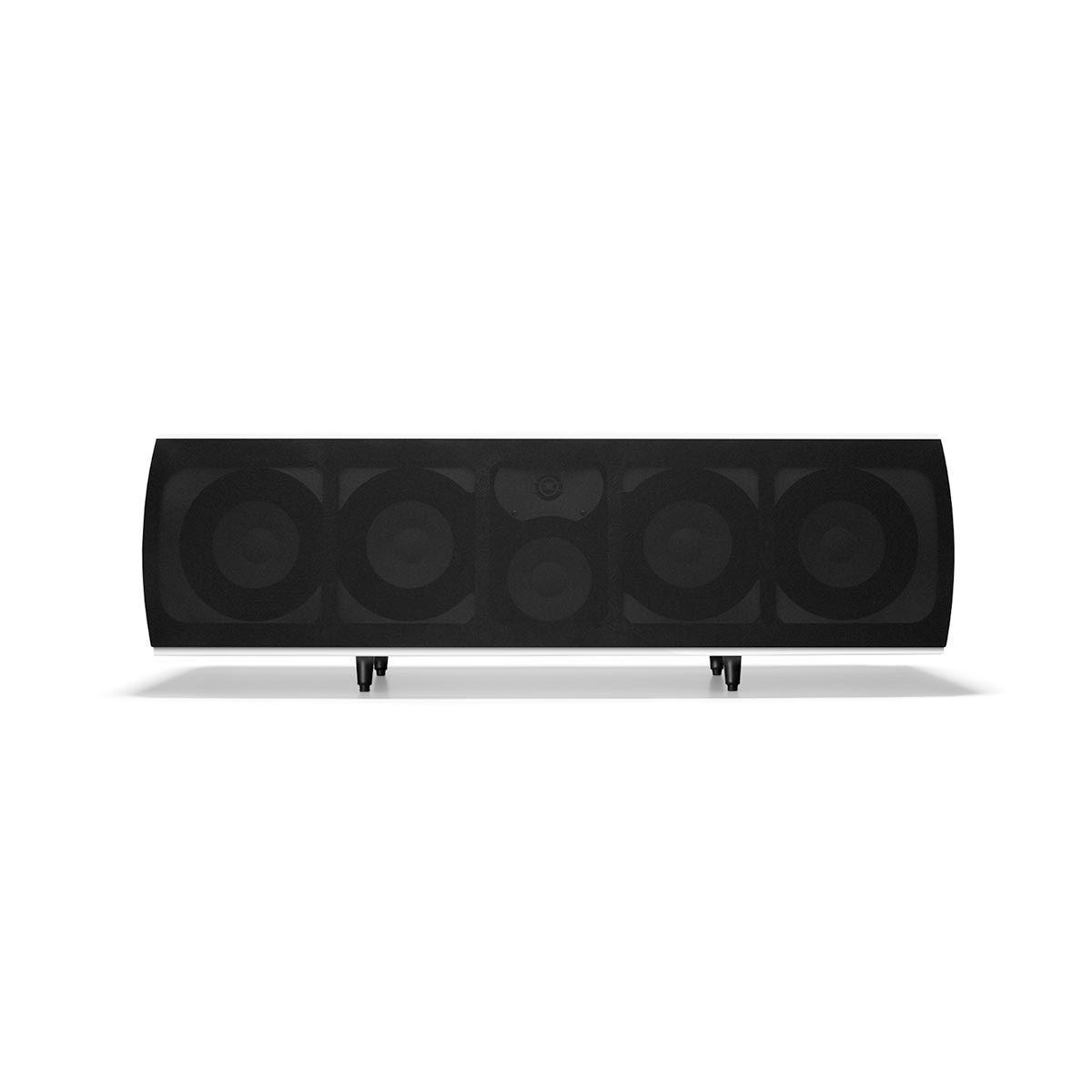

- Magnetically attached grilles
- 4 premium high-gloss finishes available
| Specifications | |
| Type | 3-Way Quadruple 6.5" Centre Channel Loudspeaker |
| High-Frequency Transducer | 1" (25 mm) Beryllium Dome with Acoustic Lens Waveguide |
| Midrange Transducer | 5.25" (130 mm) Deep Ceramic Composite (DCC) Aluminium Cone with Cast Frame |
| Low-Frequency Transducer | Four 6.5" (165mm) Deep Ceramic Composite (DCC) Aluminium Cones with Cast Frames |

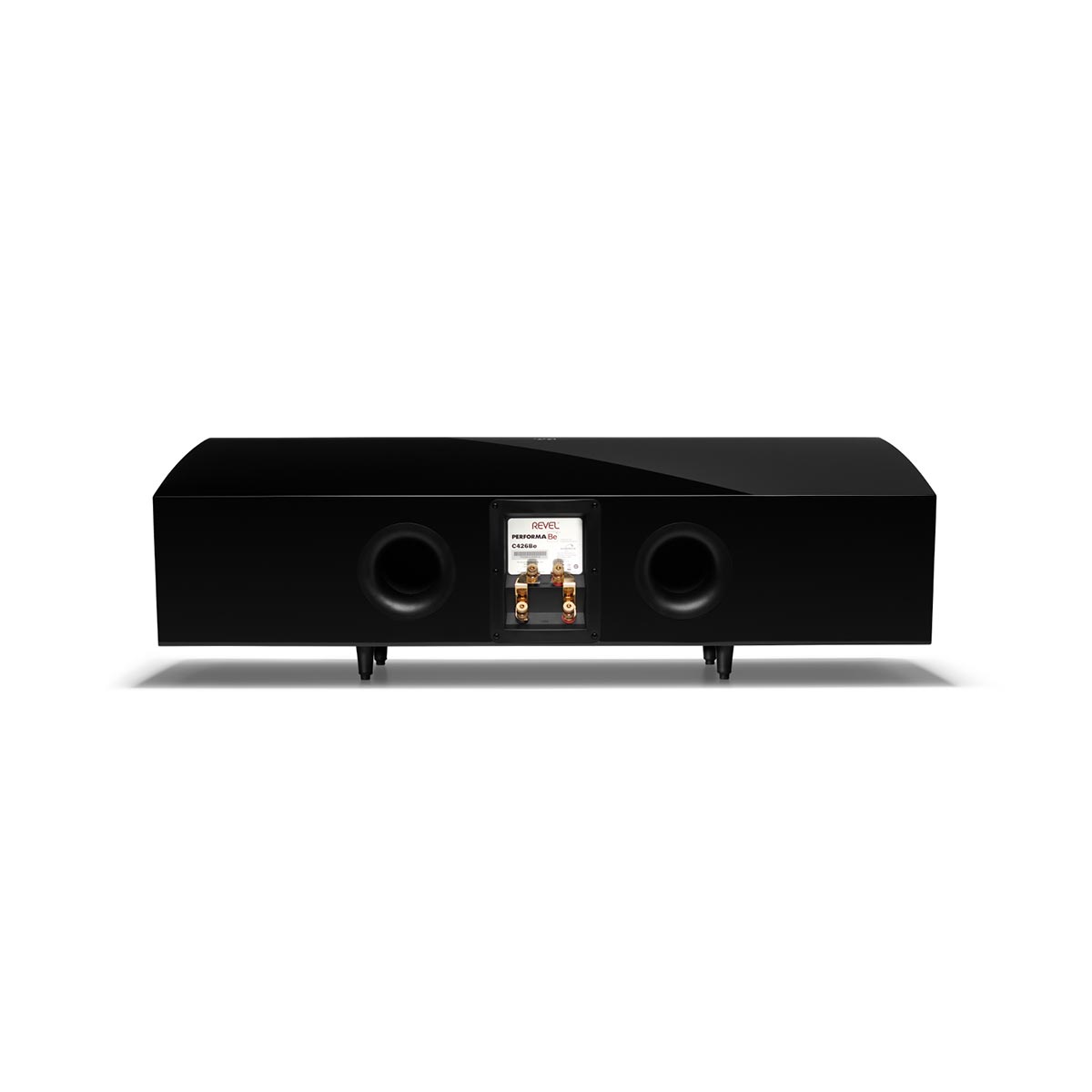

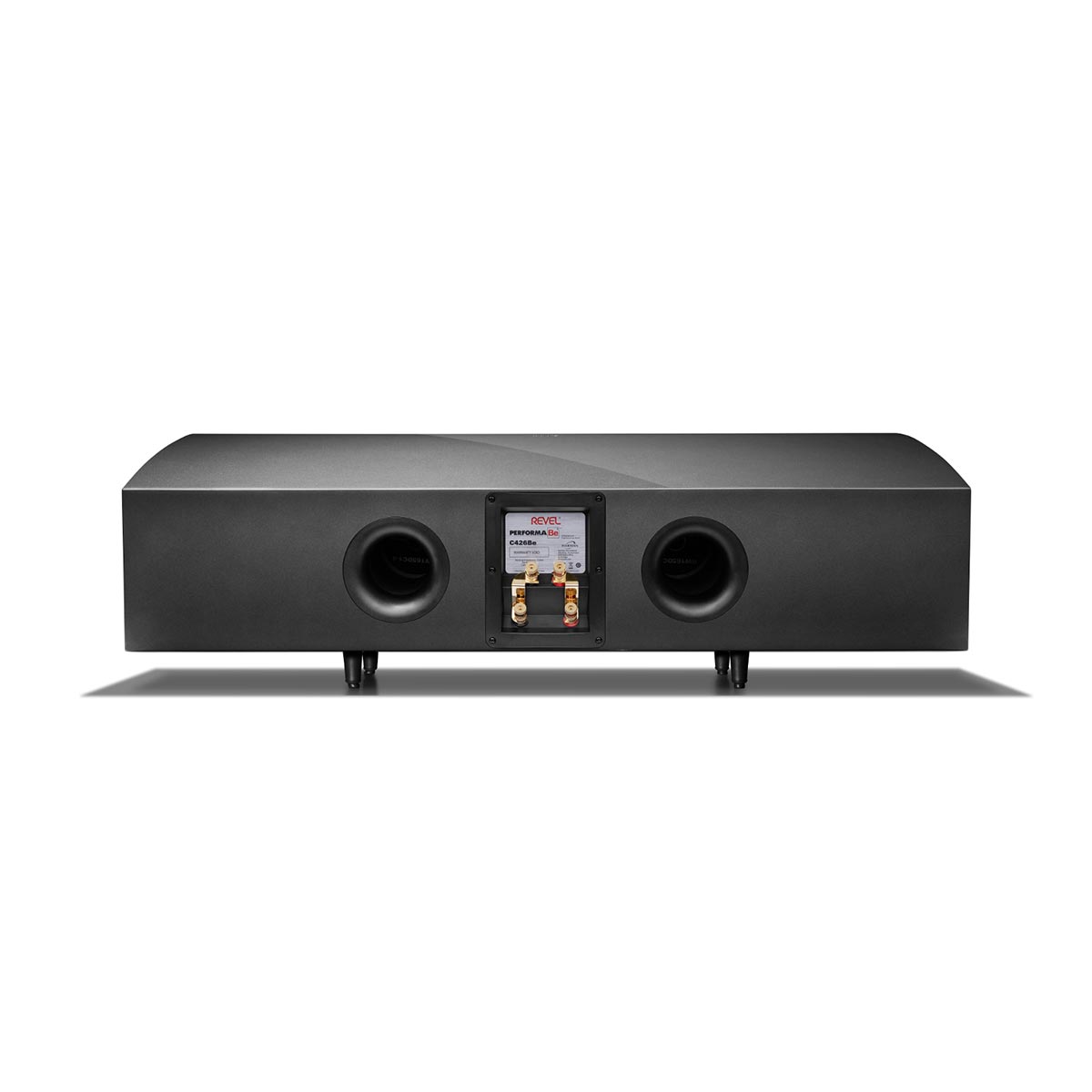

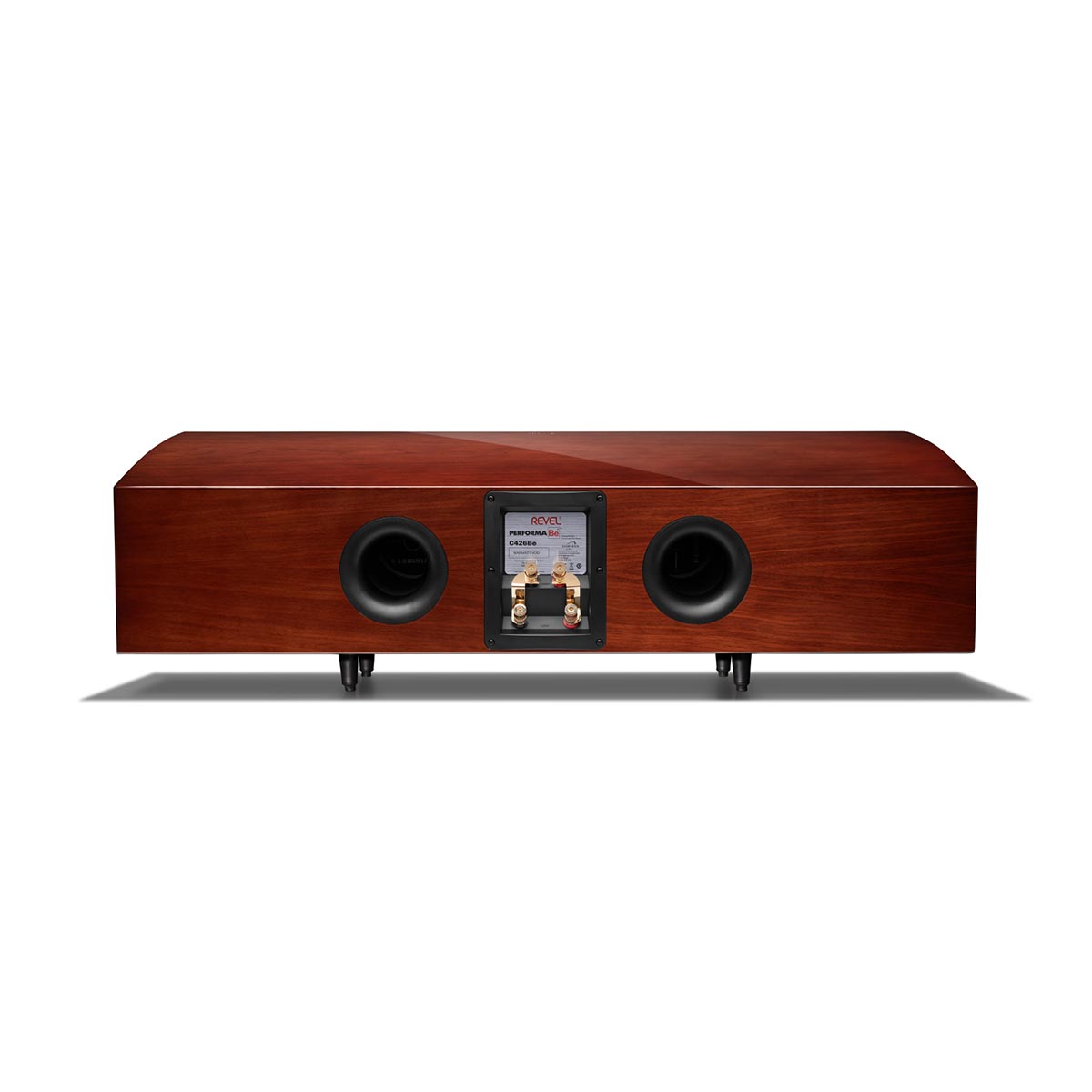

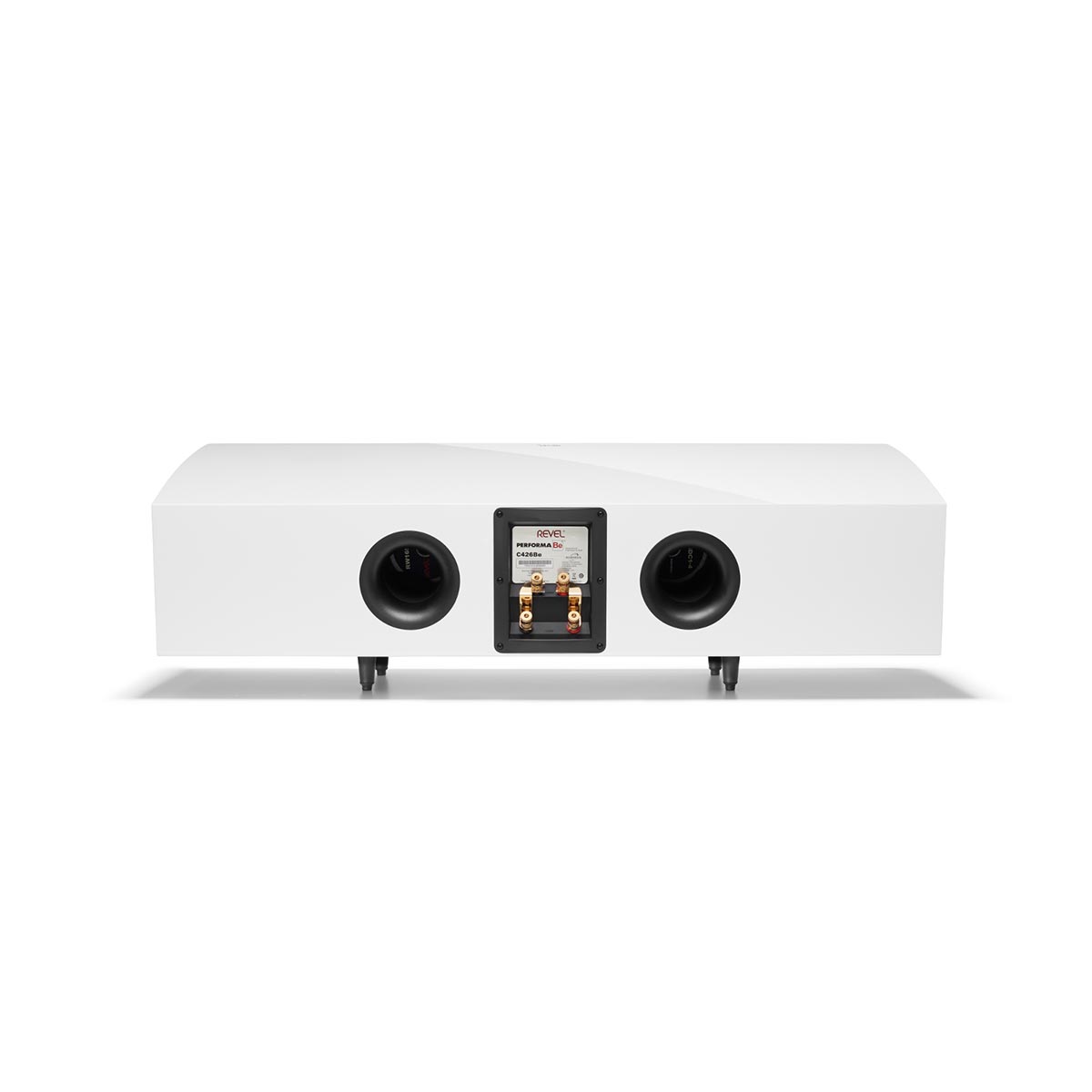

| Enclosure Type | Bass-Reflex via 2 Rear-Mounted Ports |
| Recommended Amplifier Power | 50 – 300 Watts RMS |
| Frequency Response (-6 dB) | 38 Hz - 40 kHz |
| Low-Frequency Extension | 38 Hz (-10 dB), 38 Hz (-6 dB), 41 Hz (- 3dB) |
| Sensitivity (2.83 V / 1 m) | 90 dB |
| Nominal Impedance | 8 Ohms |
| Crossover Frequencies | 210 Hz, 2,100 Hz |
| Inputs | Dual Gold-Plated Binding Posts with Shorting Straps |
| Dimensions with Base and Grille (H x W x D) | 263 x 979.7 x 358 mm (10.4" x 38.6" x 14") |
| Weight | 27.7 kg (61 lb) |
| Available High-Gloss Finishes | Black, White, Metallic Silver, and Walnut |
