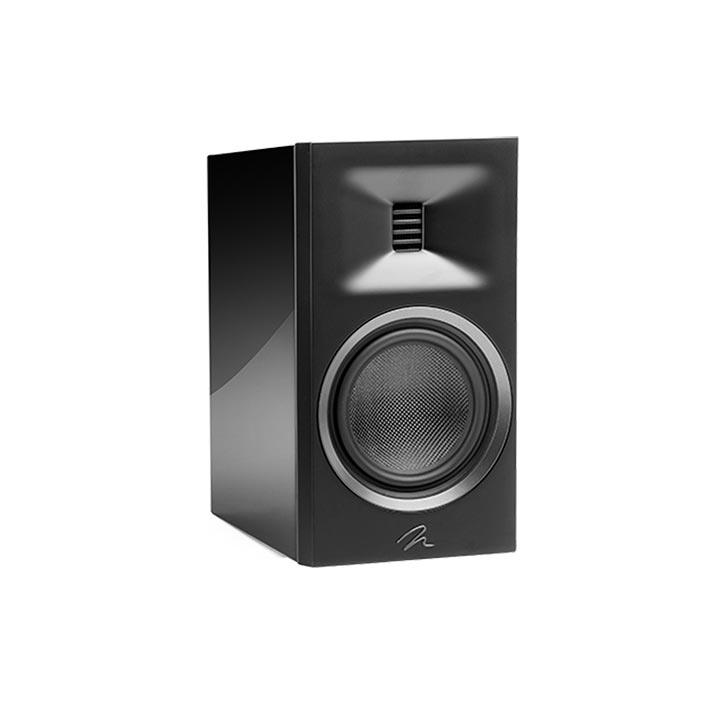

Motion B10
Distinctive Design, Elegant Execution, Beautiful Sound. Motion: Reimagined

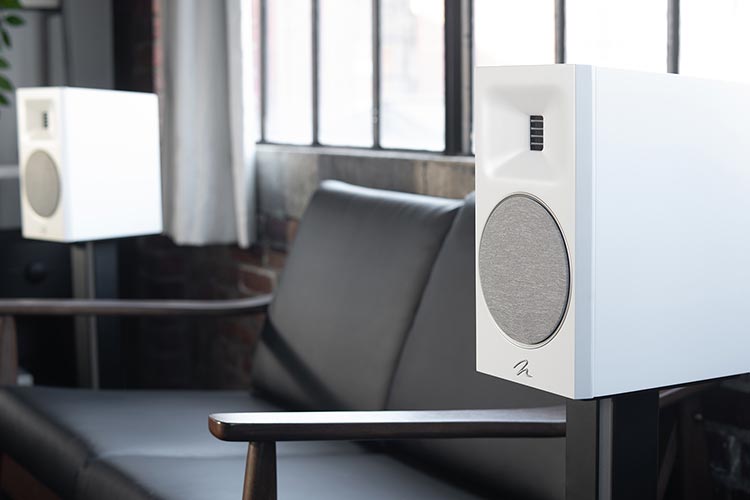

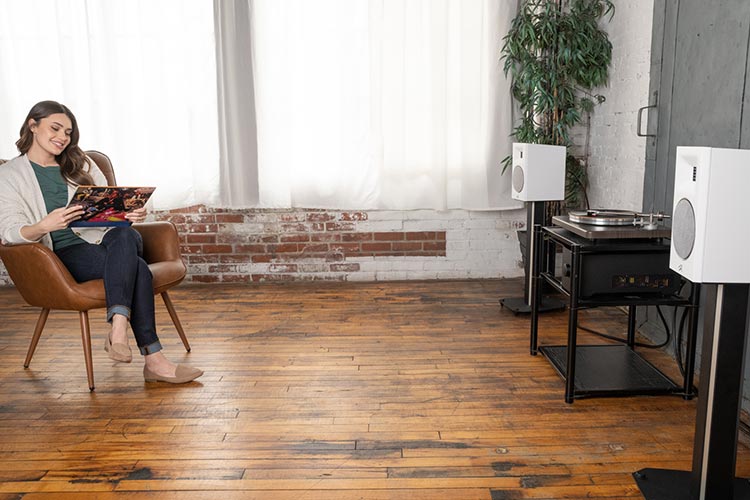

Motion® B10 offers impressive performance from its Gen2 FMT and Woven Fibreglass mid-bass, delivering musicality and scale not typical of its size. Being less than 10" deep, the Motion® B10 is a practical option for placement on a shelf, desk, cabinet or other flat surface. For those desiring a stand mount solution, our optional (sold separately) STAND25 speaker stand can bolt directly into the bottom of the speaker for maximum stability.
Motion®: Reimagined
Our most ambitious acoustic and aesthetic development in MartinLogan's 40-year history. Motion® Series defines elegance and performance by leveraging exclusive technologies and decades of experience. The result is a loudspeaker collection that is not just an upgrade of its predecessor, but a whole new level of quality and excellence.
Legendary MartinLogan Sound
MartinLogan speakers are known for their exceptional articulation, detail and realism, regardless of the listening environment. By using advanced thin-film technologies and Controlled Dispersion, MartinLogan delivers a unique and unparalleled listening experience that is not commonly found in other speakers.

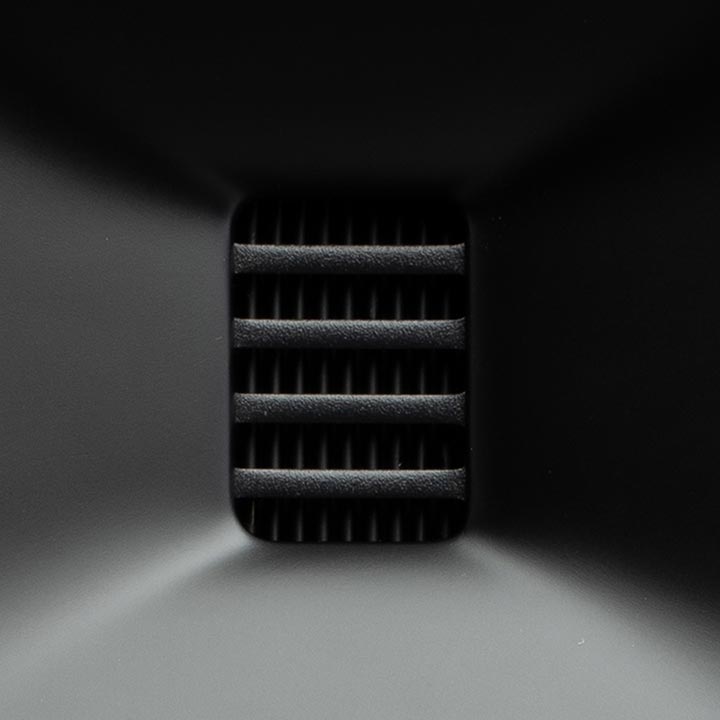

Gen2 Obsidian Folded Motion® Tweeter
Our signature thin-film tweeter technology just got better. With an upgraded motor structure, the latest Gen2 FMT provides higher output and lower distortion than ever before.

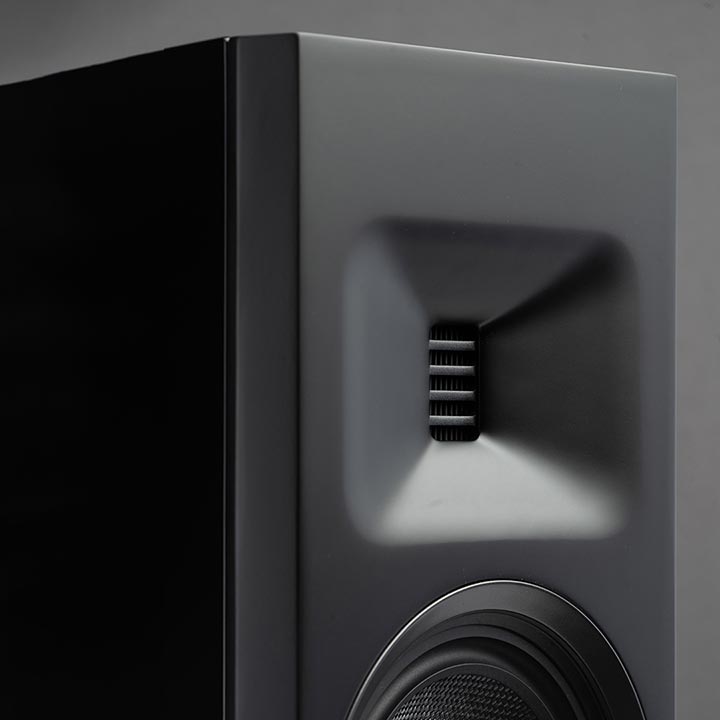

Folded Motion® Waveguide
After an extensive evaluation of nearly 50 design options, the Folded Motion® Waveguide profile was meticulously chosen to harmoniously align with the dispersion of the midrange drivers, resulting in enhanced output. The waveguide guarantees consistent sound quality regardless of the listener's position and minimises unwanted room reflections. Proper waveguide design is crucial as it helps control the sound's dispersion pattern, ensuring that the sound is evenly distributed across the listening area and resulting in optimal sound quality.

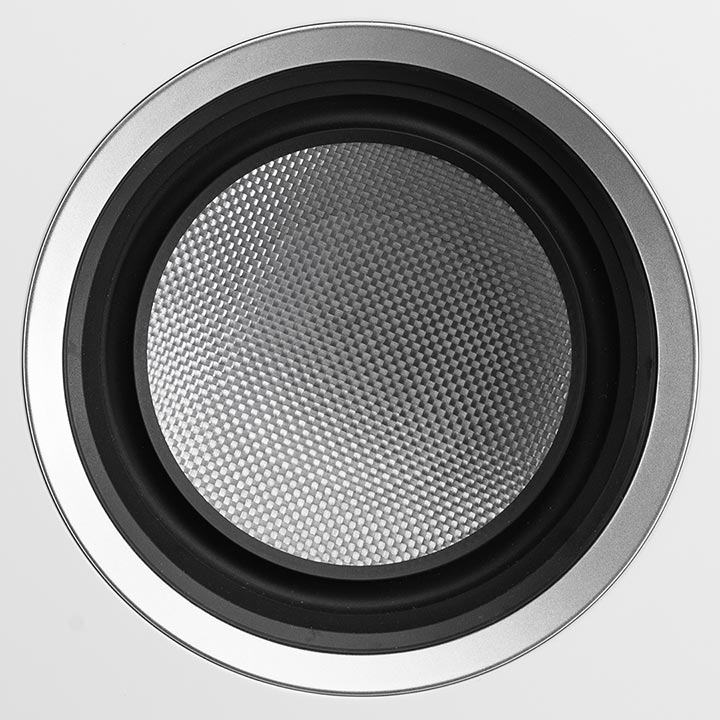

Woven-Fibreglass Midrange
The lightweight and strong Woven Fibreglass midrange in the Motion® series is perfectly suited for keeping pace with Motion’s Gen2 FMT, providing crystal clear dialogue and vocals, as well as lifelike instrumentals.
Modern Design Featuring Luxurious Finishes

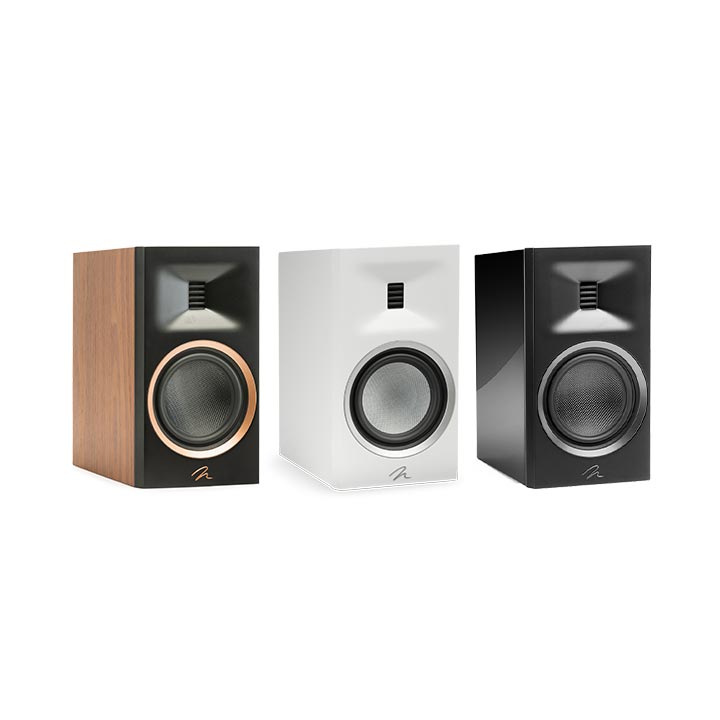

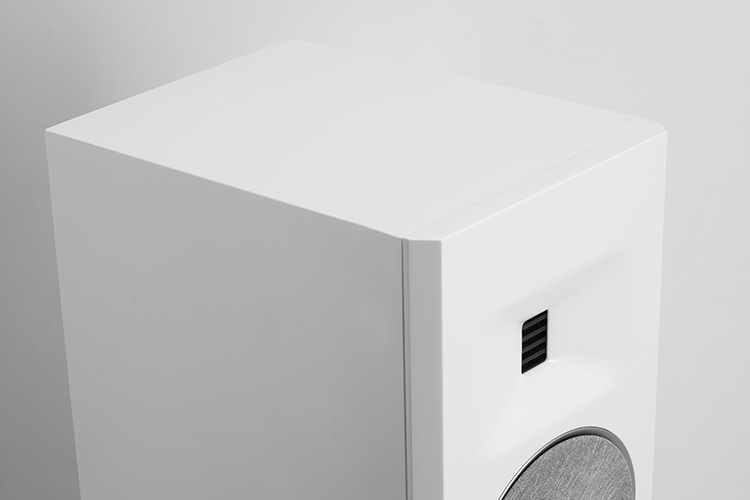

The latest Motion® speakers utilise cutting-edge technology and the highest quality materials to deliver sound quality that is truly unmatched. Their sleek, sophisticated design is an artful complement to any interior. Available in three finishes of Satin White, Walnut or Gloss Black, these speakers are an exquisite addition to any discerning individual's home. Upgrade your audio experience and enhance your space with the Motion® series.

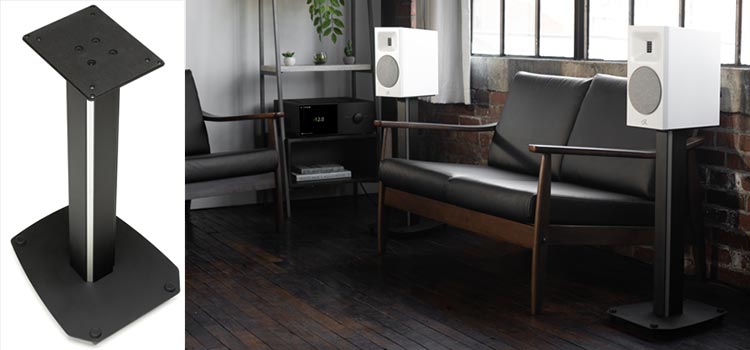

Stand 25

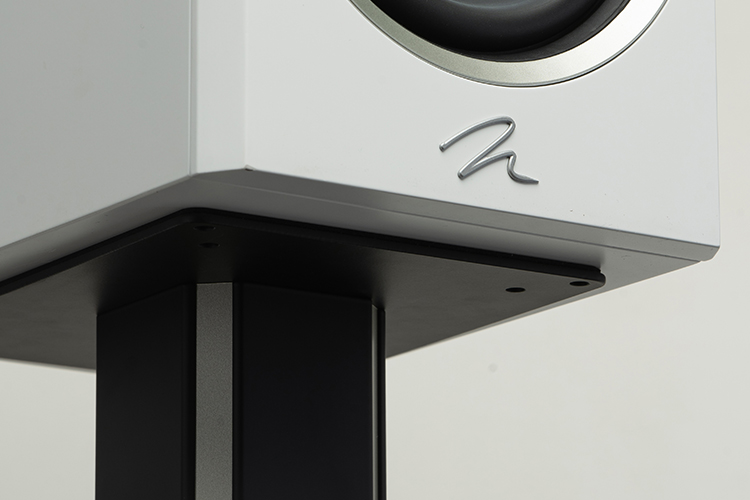

The perfect match for B10 and B100, STAND25 includes interchangeable colour trim pieces and attaches to the speaker base for maximum stability.
| Specifications | |
| Frequency Response | 56 Hz - 25 kHz ± 3 dB |
| Tweeter Dispersion (Horizontal x Vertical) | 90° x 90° |
| Recommended Amplifier Power | 20 - 200 watts |
| Sensitivity | 92 dB |
| Impedance | 5 ohms |
| High Frequency Driver | 1” x 1.4” (2.6 x 3.6 cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm. |
| Mid-Frequency Driver | 5.5” (14 cm) woven fibreglass cone with cast polymer basket. Non-resonant asymmetrical chamber format. Unibody cone construction. |
| Crossover Frequency | 2,370 Hz (2-way) |
| Cabinet | Rear ported |
| Binding Post Inputs | Custom 5-way binding posts |
| Weight | 14.5 lb (6.6 kg) |
| Dimensions (H x W x D) | 12-1/2” x 7” x 9-3/4” (31.8 x 17.8 x 24.8 cm) |
| Finish | Gloss Black, Walnut, and Satin White |
