A11MKII
The A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.

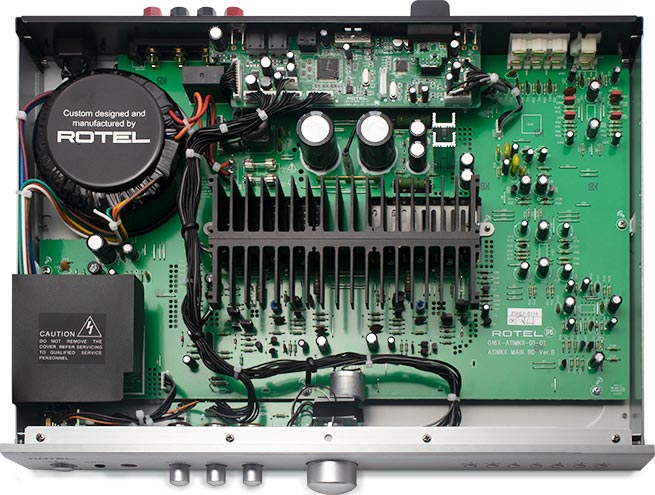

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

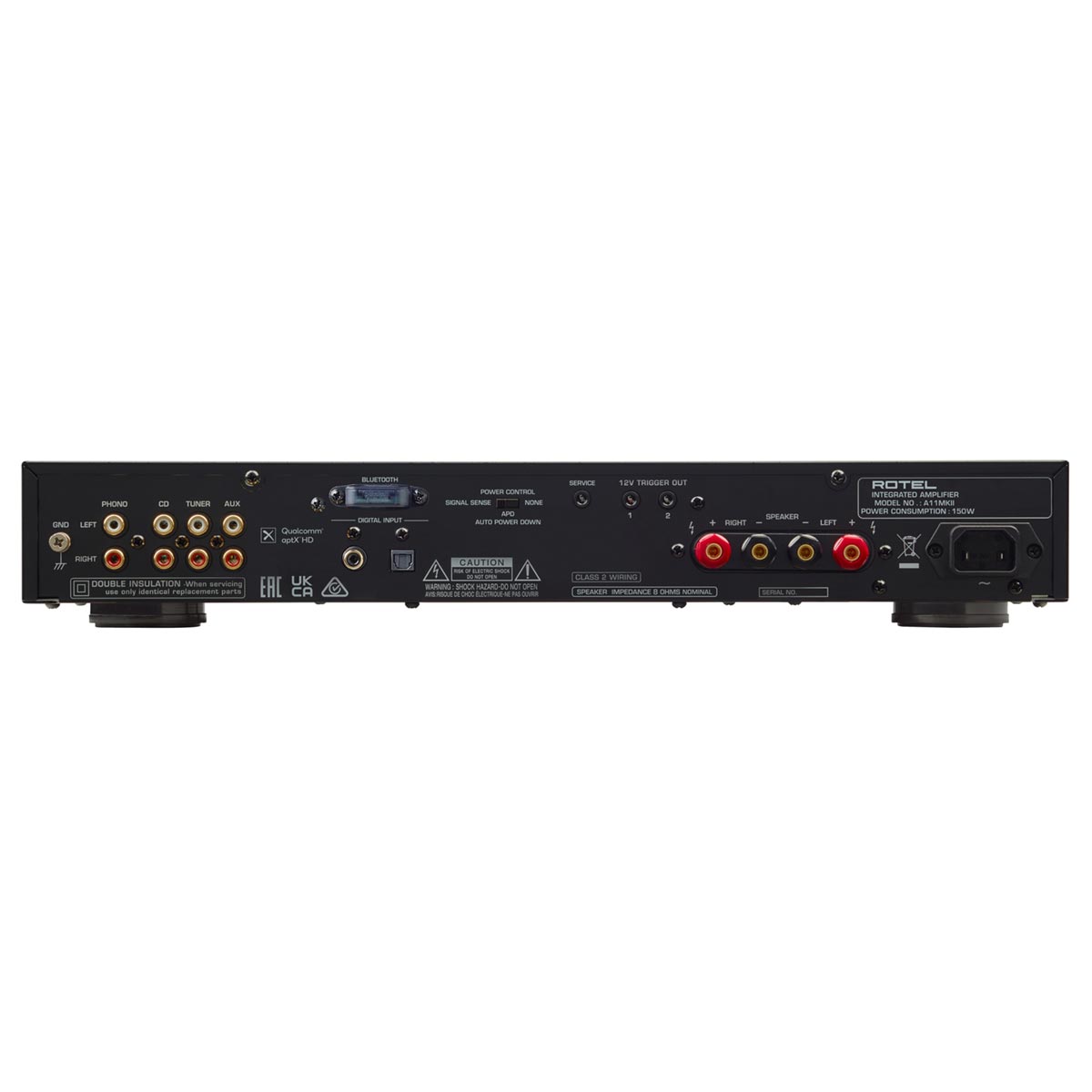

Both analogue and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX™ HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

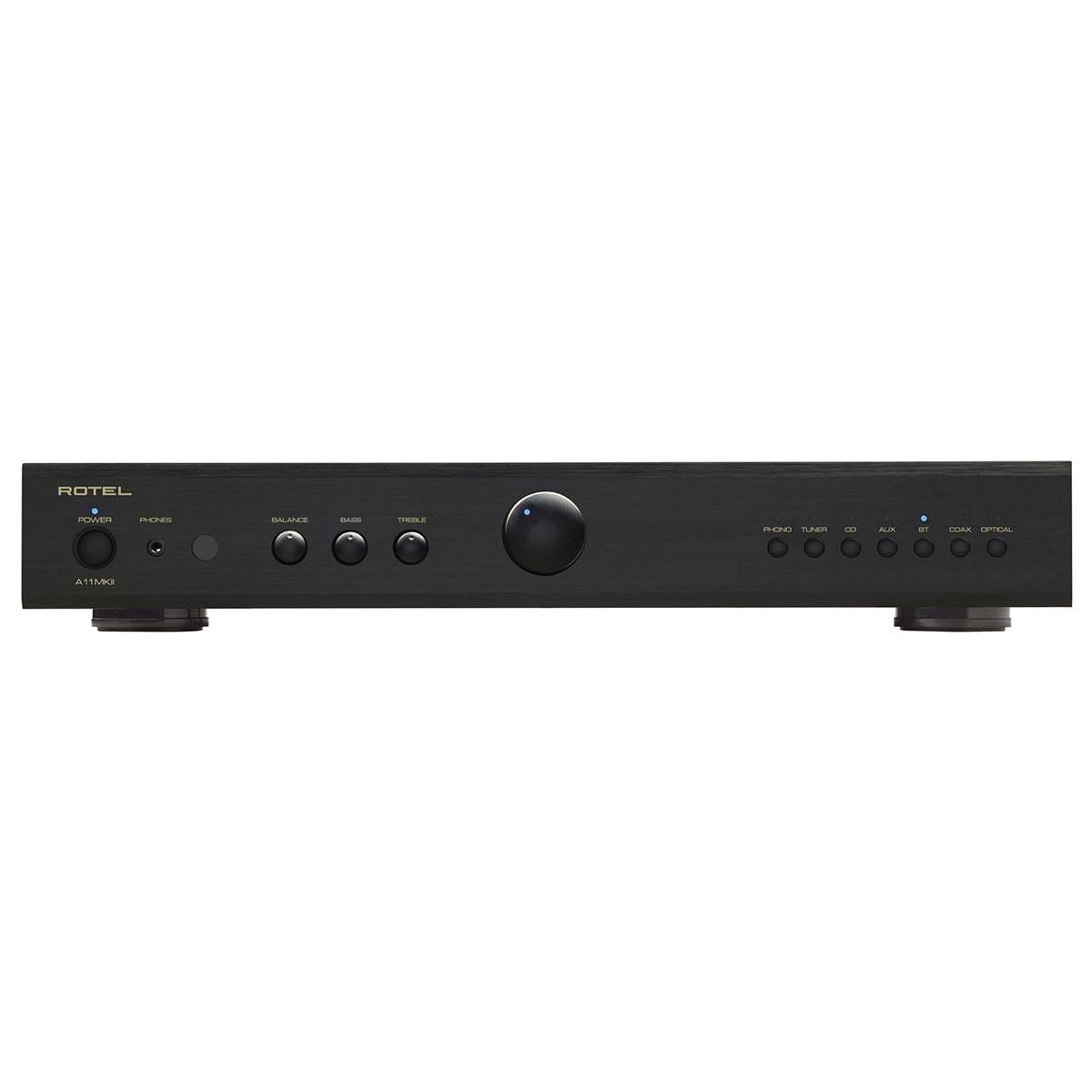

The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close. The included IR remote drives a motorized analogue volume controller for ease of use at the listening position.

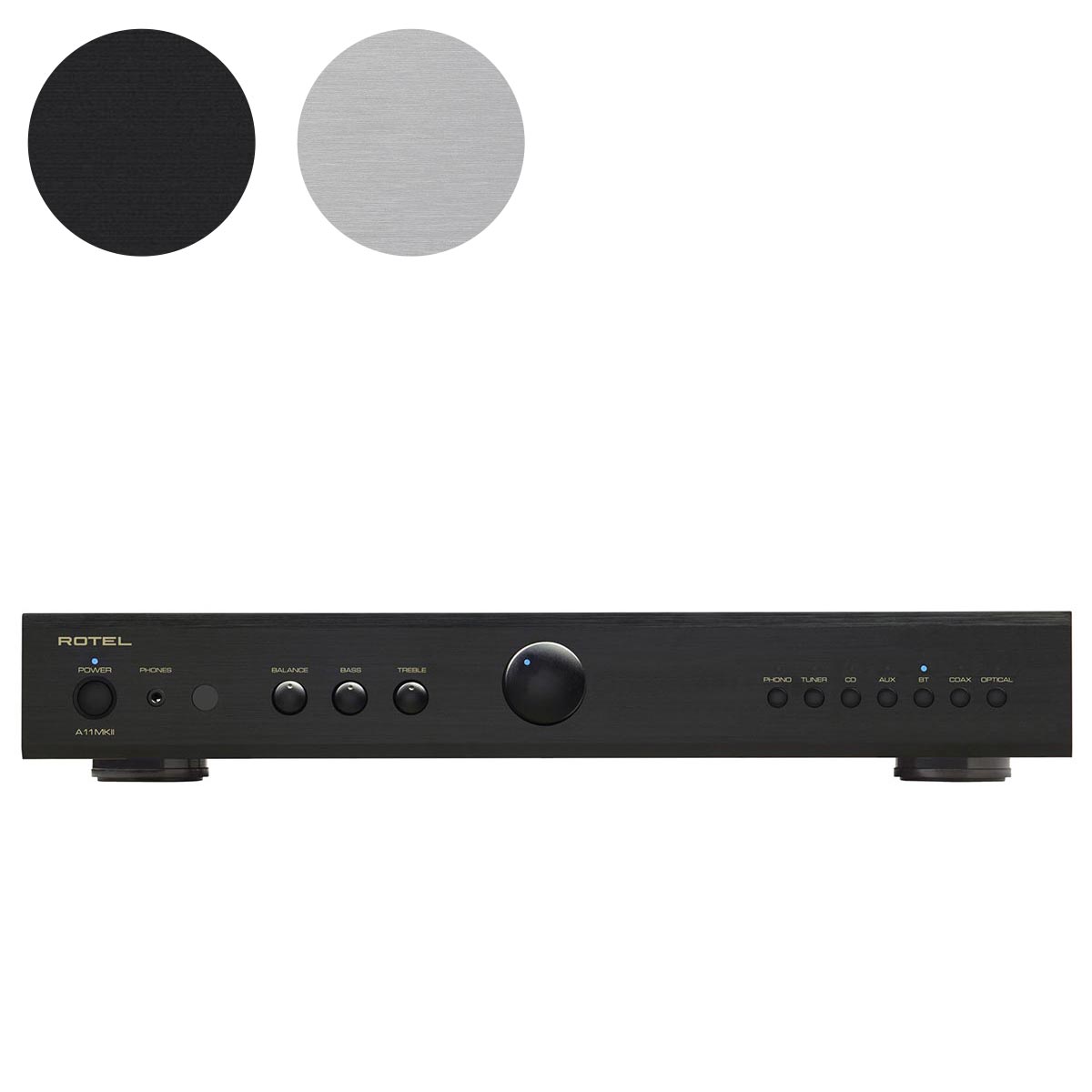

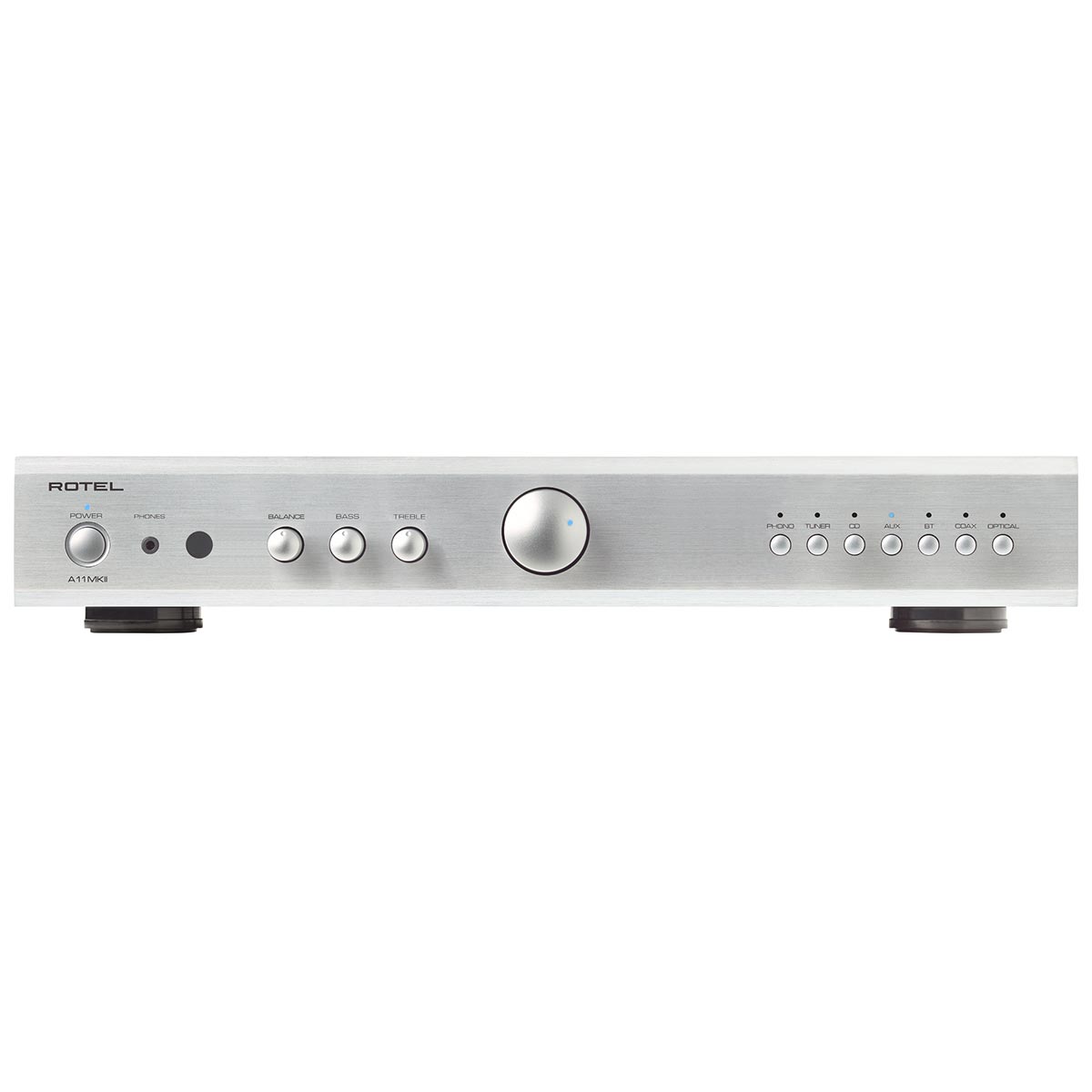

The A11MKII is available in both black and silver colours.
Key Features
- 2 x 50 Watts of robust Class AB power, 8 Ohms
- Includes remote control
- Moving Magnet Phono input for turntable connection
- Bluetooth with aptX™ HD and AAC
- Texas Instruments premium 32-bit/384 kHz Digital to Analogue Converter
Engineered with Care
| Specifications | |
| Power Output | 50 W/Ch (8 Ω), 62 W/Ch (4 Ω) |
| Total Harmonic Distortion (THD) | <0.03% |
| Frequency Response | Line Level Inputs: 10 Hz - 100 kHz (-0.5 dB, +0.05 dB), Phono Input: 20 Hz - 20 kHz (-0.5 dB, +0.3 dB) |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 90 dB, Phono Input: 85 dB |
| Intermodulation Distortion (60 Hz:7 kHz, 4:1) | <0.03% |
| Damping Factor | 120 |
| Input Sensitivity | Line Level Inputs: 130 mV, Phono Input (MM): 1.6 mV |
| Input Impedance | Line Level Inputs: 45 kΩ, Phono Input (MM): 43 kΩ |
| Input Overload | Line Level Inputs: 4 V, Phono Input: 50 mV |
| Tone Controls | ±6 dB at 100 Hz / 10 kHz |
| Dimensions (W x H x D) | 430 x 73 x 347 mm (17" x 2 7/8" x 13 5/8") |
| Front Panel Height | 60 mm (2 3/8") |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 150 W |
| Net Weight | 6.8 kg (15 lb) |
| BTU Rating (4 Ω, 1/8th Power) | 450 BTU/h |
