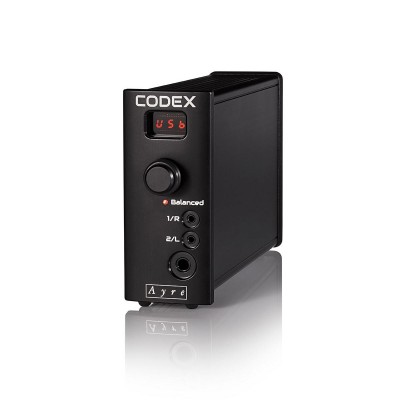

Codex
Equally at home as a stand-alone DAC, headphone amp, or digital preamp, the Codex can unlock the potential of any system. A fully-balanced signal path throughout the analogue circuitry provides an inherently clean and quiet backdrop for your music. The zero-feedback design maintains all of the pace and rhythm of your favourite artist, rendering your digital music as effortlessly as if it were live.
Key Features
- USB and Optical (Toslink) inputs
- Headphone outputs
- Two 3.5mm mini-phone jacks
- One ¼” phone jack
- 3.5mm mini-phone jacks configurable to balanced mode
- Asynchronous transfer mode for USB input
- DSD or PCM input over USB
- Minimum phase digital filter
- Single-pass 16x oversampling
- Ayre’s exclusive Diamond output circuit
- Linear analogue AyreLock power supply
- Zero-feedback and fully-balanced discrete circuitry
- Equilock circuitry for active gain devices
| Specifications | |
| Audio Input Level | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz PCM, 16, 20, and 24 Bits, 2.8224 and 5.6448 MHz DSD, 1 Bit (DSD over PCM = “DoP”) |
| Maximum Output Level: Headphone or Preamp Modes | Balanced Outputs: 7.2 V RMS, Single-Ended Outputs: 3.1 V RMS |
| Maximum Output Level: DAC Mode | Balanced Outputs: 4.0 V RMS, Single-Ended Outputs: 2.0 V RMS |
| Analouge XLR Output Polarity | Pin 1 = Ground, Pin 2 = Non-Inverting (Positive), Pin 3 = Inverting (Negative) |
| Power Consumption | 28 Watts |
| Dimensions (W x D x H) | 5.5 x 23 x 13.7 cm (2.25" x 9" x 5.25") |
| Weight | 1.4 kg (3 lb) |
