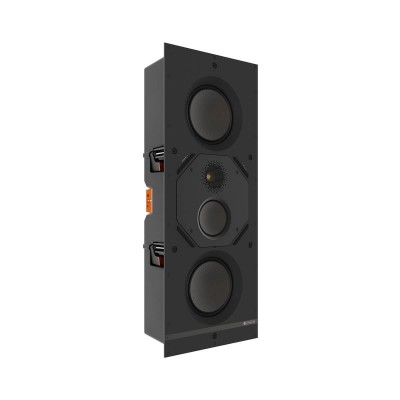

W2M-CP
This medium-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. This combination clear and lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker.
As a Controlled Performance (CP) model, it is fitted with a fully sealed back box that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility, for superior level of sound isolation between rooms and floors.
It has a cut out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features
- Ideal for installations where pristine acoustic performance is required.
- Fitted back box delivers consistent performance regardless of interior wall construction
- Three-way design
- 1 x 1" (25mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 3" (76 mm) RST II mid-range driver
- 2 x 5" (127 mm) RST II bass drivers for full bass
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
| Specifications | |
| System Format | 3-Way |
| Channels | 1 |
| Frequency Response, Installed (-6 dB) | 60 Hz – 35 kHz |
| Nominal Impedance | 6 Ohm |
| Minimum Impedance (20 Hz – 20 kHz) | 4.8 Ohm @ 1 kHz (4.3 Ohm @ 15 kHz) |
| Sensitivity (2.83 Vrms @ 1 m, Installed) | 87 dB |
| Maximum Peak SPL (Single Speaker @ 1 m Z-Weighted) | 118 dB |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6 dB Crest Factor) | 100 W |
| Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) | 40 – 150 W |
| Drive Unit Complement | 2 x 5" (127 mm) RST II Bass Driver, 1 x 3" (76 mm) RST II Mid-Range Driver, 1 x 1" (25 mm) C-CAM Tweeter |
| Crossover Frequency | LF/HF: 550 kHz, MF/HF: 3 kHz |
| Bass Alignment | Sealed |
| Mounting Depth | 97 mm (3 13/16") |
| Cut-Out (L x W) | 527 x 198 mm (20 3/4" x 7 13/16") |
| External Dimensions (Including Grille (H x W x D)) | 540 x 212 x 102 mm (2 11/4" x 8 3/8" x 4") |
| Weight (Each) | 4.4 kg (9 lb 11 oz) |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte Black, Orange & Bronze |
| Sold As | Single Unit |
| Corner Switch | On/Off |
| HF Switch | -/0/+ |
