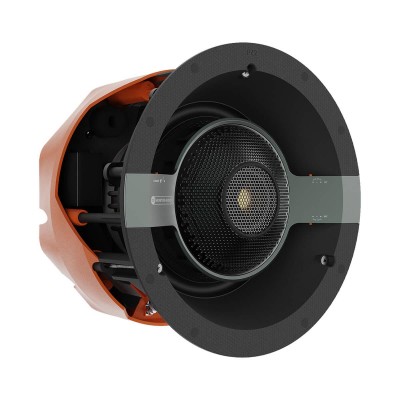

C3M
This high-performance, medium Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
This really is the last word in installed performance, featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. This high-end combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. It has a cut out diameter of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square or premium grille can be used with this model.
Key Features
- Ideal for installations where high-performance acoustics are desired
- Three-way design
- Mid-frequency ‘mid-pod array’
- 1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
- 1 x 7" (178 mm) RDT III bass driver
- 1 x 4" (102 mm) IDC II midrange driver
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
| Specifications | |
| System Format | 3-Way |
| Channels | 1 |
| Frequency Response, Installed (-6 dB) | 45 Hz – 35 kHz |
| Nominal Impedance | 6 Ohm |
| Minimum Impedance (20 Hz – 20 kHz) | 4.8 Ohm @ 2 kHz |
| Sensitivity (2.83 Vrms @ 1 m, Installed) | 87 dB |
| Maximum Peak SPL (Single Speaker @ 1 m Z-Weighted) | 116 dB |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6 dB Crest Factor) | 120 W |
| Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) | 45 – 180 W |
| Drive Unit Complement | 1 x 7" (178 mm) RDT III Bass Driver, 1 x 4" (102 mm) IDC II Midrange Driver, 1 x 1" (25 mm) IDC II Tweeter |
| Crossover Frequency | LF/MF: 800 Hz, MF/HF: 3.5 kHz |
| Mounting Depth | 148 mm 5 13/16") |
| Cut-Out Hole Diameter | 212 mm (8 3/8") |
| External Dimensions (Including Grille (H x W x D)) | 242 x 242 x 151 mm (9 1/2" x 9 1/2" x 5 15/16") |
| Weight (Each) | 3.4 kg (7 lb 8 oz) |
| Pre-Construction Bracket | CM-B |
| Cabinet Finish | Matte Black, Orange & Green |
| Sold As | Single Unit |
| Corner Switch | On/Off |
| HF Switch | -/0/+ |
| MF Switch | -/0/+ |
