C2S

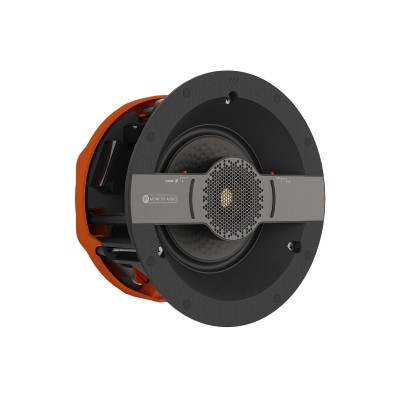

This small Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 171 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grille can be used with this model.
Key Features
- Ideal for installations where pristine acoustic performance is required.
- Two-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 5" (127 mm) RST II mid-bass driver for pristine mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
| Specifications | |
| System Format | 2-Way |
| Channels | 1 |
| Frequency Response, Installed (-6 dB) | 40 Hz – 30 kHz |
| Nominal Impedance | 8 Ohm |
| Minimum Impedance (20 Hz – 20 kHz) | 6.8 Ohm @ 150 Hz |
| Sensitivity (2.83 Vrms @ 1 m, Installed) | 84 dB |
| Maximum Peak SPL (Single Speaker @ 1 m Z-Weighted) | 111 dB |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6 dB Crest Factor) | 65 W |
| Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) | 35 – 130 W |
| Drive Unit Complement | 1 x 5" (127 mm) RST II Mid-Bass Driver, 1 x 1" (25 mm) C-CAM Tweeter |
| Crossover Frequency | LF/HF: 2.5 kHz |
| Mounting Depth | 99 mm (3 7/8") |
| Cut-Out Hole Diameter | 171 mm (6 3/4") |
| External Dimensions (Including Grille (H x W x D)) | 201 x 201 x 103 mm (7 15/16" x 7 15/16" x 4 4/16") |
| Weight (Each) | 1.5 kg (3 lb 5 oz) |
| Pre-Construction Bracket | CS-B |
| Cabinet Finish | Matte Black, Orange & Bronze |
| Sold As | Single Unit |
| Corner Switch | On/Off |
| HF Switch | -/0/+ |
