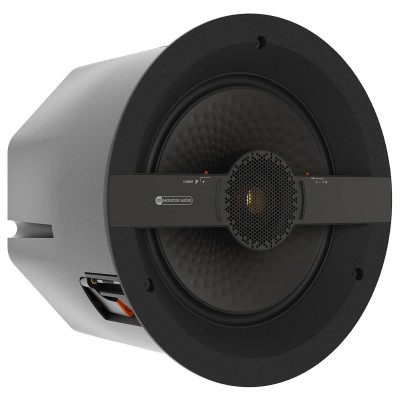

C2L-CP
This large Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker.
As a Controlled Performance (CP) model, it is fitted with fully sealed back boxes that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility, for superior level of sound isolation between rooms and floors.
It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grille can be used with this model.Key Features
- Ideal for installations where pristine acoustic performance is required.
- Filled back box delivers consistent performance regardless of interior wall construction
- Two-way design
- 1 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 9" (229 mm) RST II mid-bass driver for pristine mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
| Specifications | |
| System Format | 2-Way |
| Channels | 1 |
| Frequency Response, Installed (-6 dB) | 75 Hz – 25 kHz |
| Nominal Impedance | 8 Ohm |
| Minimum Impedance (20 Hz – 20 kHz) | 6.6 Ohm @ 10 kHz |
| Sensitivity (2.83 Vrms @ 1 m, Installed) | 89 dB |
| Maximum Peak SPL (Single Speaker @ 1 m Z-Weighted) | 120 dB |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6 dB Crest Factor) | 100 W |
| Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) | 50 – 200 W |
| Drive Unit Complement | 1 x 9" (229 mm) RST II Mid-Bass Driver, 1 x 1.25" (32 mm) C-CAM Tweeter |
| Crossover Frequency | LF/HF: 2.25 kHz |
| Bass Alignment | Sealed |
| Mounting Depth | 177.5 mm (6 63/64") |
| Cut-Out Hole Diameter | 248 mm (9 3/4") |
| External Dimensions (Including Grille (H x W x D)) | 278 x 278 x 103 mm (10 15/16" x 10 15/16" x 4 4/16") |
| Weight (Each) | 2.7 kg (6 lb) |
| Pre-Construction Bracket | CL-B |
| Cabinet Finish | Matte Black, Orange & Bronze |
| Sold As | Single Unit |
| Corner Switch | On/Off |
| HF Switch | -/0/+ |
