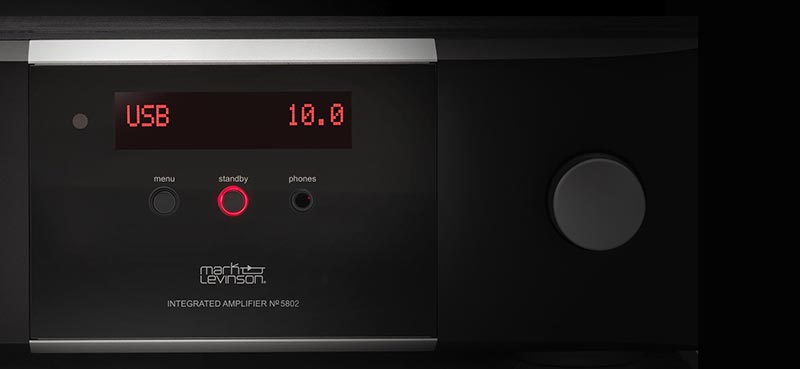

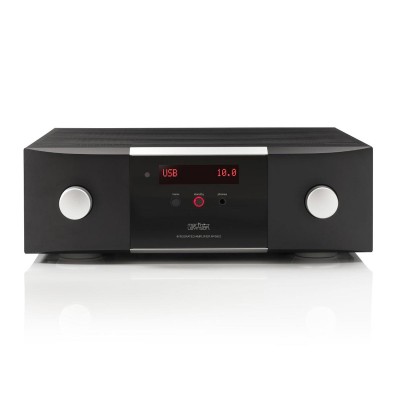

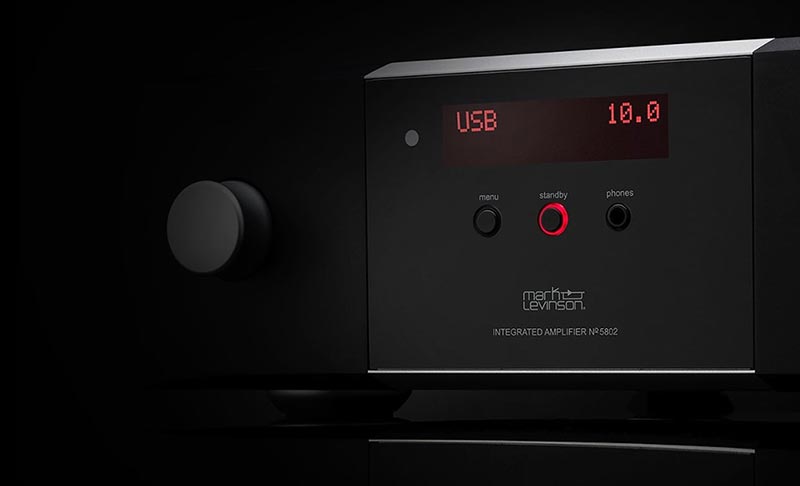

Amplify Your Digital Music Library
Feel the very soul of the artist’s performance with an integrated amplifier that delivers powerfully pure sound. The № 5802 contains a high-performance preamplifier and class-A/B amplifier in one beautiful, iconic piece, so you can experience dynamic and vibrant digital audio.
Detailed Digital Audio
Experience outstanding audio quality from your entire digital music collection. The Mark Levinson № 5802 includes a premium Precision Link II Digital-to-Analogue Converter (DAC) that accurately reproduces audio signals and minimizes noise, so you can discover new details in your favourite songs.
Virtually Distortion Free
With pristine class-A/B amplification and a highly capable power supply, the № 5802 delivers an abundance of power to your loudspeakers — and fills an entire room with rich, distortion-free sound.
High-Performance Headphone Output
Unleash all the performance your headphones can deliver. The № 5802 includes a class-A analogue stage to power your headphones. Experience an incredibly personal listening experience — and lose yourself completely in the music.
Flexible Control Options
Conveniently control the № 5802 with the Mark Levinson 5Kontrol app or the aluminium remote. Easily integrate into your smart home with a variety of connection options.
Bluetooth Audio Input
Experience convenient, high-quality playback from your Bluetooth devices thanks to an integrated Bluetooth receiver with aptX HD.
Luxurious Design
From the gently curved profile to the beautiful glass panel, the № 5802 is meticulously designed to exude excellence and luxury.

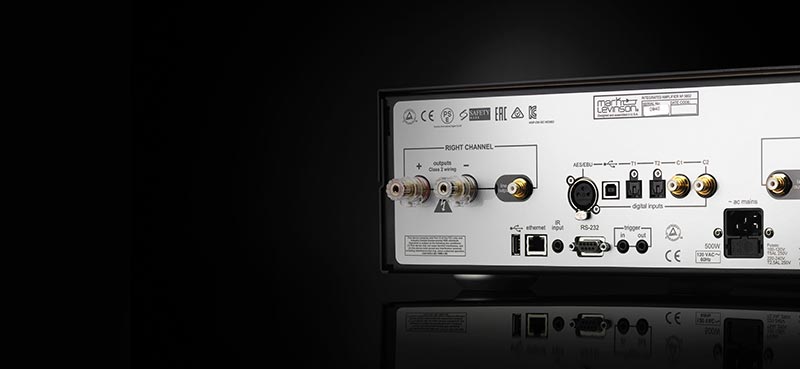

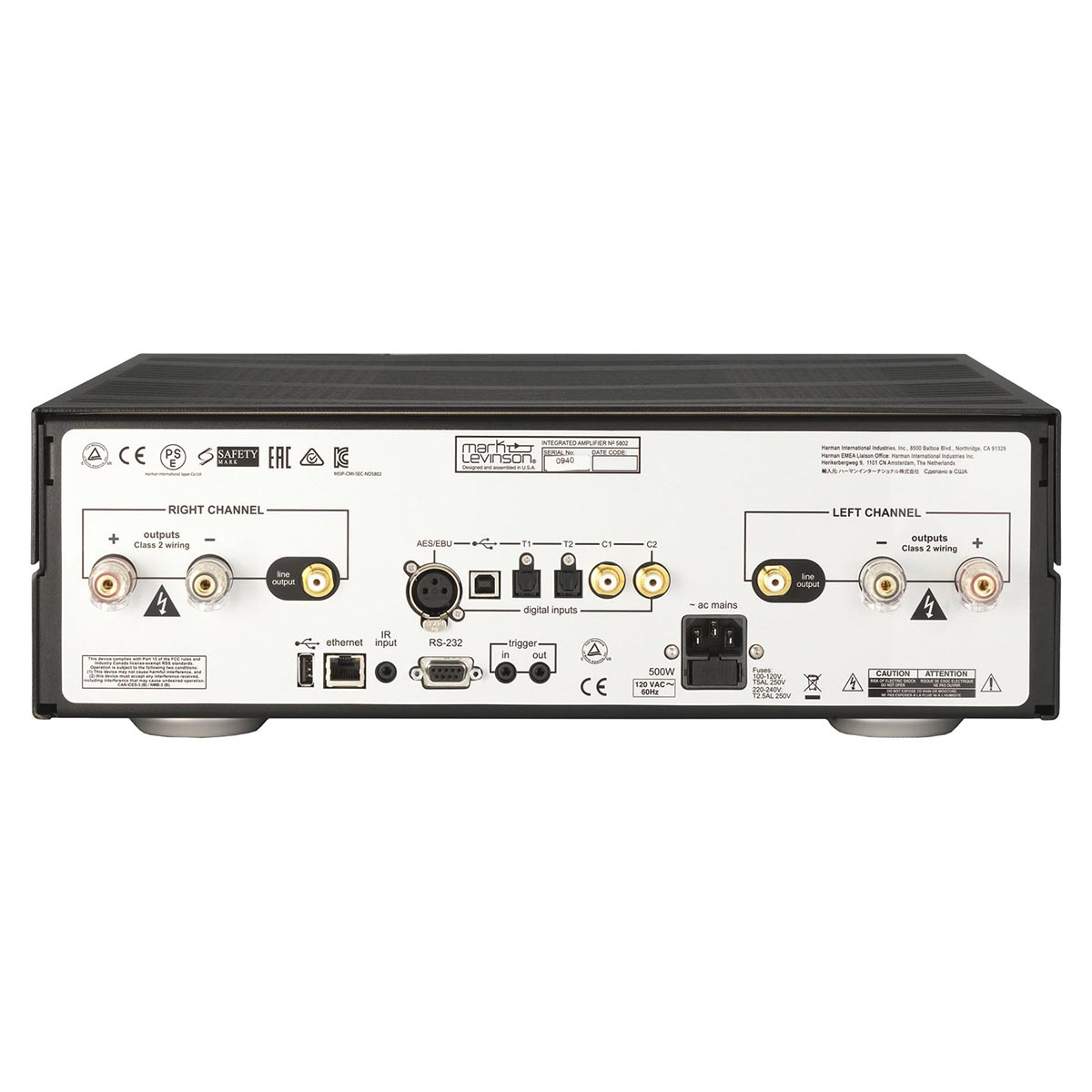

Inputs
- 1 x AES, 1 x USB 2.0, 2 x coaxial S/PDIF, and 2 x optical S/PDIF
- 384 kHz/32 bit PCM and DSD 11.2 MHz capability
- Bluetooth audio input including AptX-HD support
- MQA full decoding on all digital inputs including asynchronous USB
Outputs
- Line outputs: 1 x RCA stereo (variable)
- Headphone output: 1 x 1/4-inch/6.35 mm jack (front panel)
- Speaker outputs: 2 pairs high-current binding posts
Control
- Control ports: Ethernet (RJ45), RS-232 (DB9), 12 V trigger input/output and IR input (3.5 mm jack)
- Webpage setup, configuration import/export, software updates
- Included handheld IR remote control
- Control modules for third-party automation
Other
- EuP compliant / low-power standby
- All-new Nº 5000 series industrial design
- Designed, engineered and precision-crafted in the USA
- Packaged and sold individually
| Digital-to-Analogue Converter Stage | |
| Output Voltage | 5.7 V RMS at Maximum Volume/Full Scale (0 dBFS) |
| Frequency Response | 20 Hz to 20 kHz, +0/–0.02 dB (192 kHz/24 bit Signal); 20 Hz to 20 kHz, +0/–0.05 dB (44.1 kHz/16 Bit Signal) |
| Total Harmonic Distortion | <0.0025%, 20 Hz to 20 kHz, at 3 V RMS Output (192 kHz/24 Bit Signal); <0.003%, 20 Hz to 20 kHz, at 3 V RMS Output (44.1 kHz/16 Bit Signal); <0.006%, 90 kHz, at 3 V RMS Output (192 kHz/24 Bit Signal) |
| Signal-To-Noise Ratio | >100 dB (20 Hz to 20 kHz, 192 kHz/24 Bit Signal, A-Weighted); >98 dB (20 Hz to 20 kHz, 192 kHz/24 Bit Signal, Wideband, Unweighted); >94 dB (20 Hz to 20 kHz, 44.1 kHz/16 Bit Signal, A-Weighted); >92 dB (20 Hz to 20 kHz, 44.1 kHz/16 Bit Signal, Wideband, Unweighted) (Referred to 2 V RMS Output) |
| Sample Rates/Bit Depth | PCM: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, or 384 kHz; up to 32 Bits; DSD: Native or DoP; Single, Double, or Quad Speed (2.8, 5.6, or 11.2 MHz) |
| Digital Processing | Full MQA Decoding; PCM: Seven User-Selectable Digital Filter Settings; User-Selectable Up-Sampling to 352.8/384 kHz; DSD: Four User-Selectable Digital Filter Settings |
| Headphone Output | |
| Total Harmonic Distortion | <0.04%, 20 Hz and 1 kHz, 2 V RMS Output, 30 Ω load; <0.10%, 20 kHz, 2 V RMS Output, 30 Ω Load |
| Output Overload | >3.3 V RMS, 30 Ω Load |
| Signal-To-Noise Ratio | >91 dB (20 Hz to 20 kHz, A-Weighted, Referred to 2 V RMS Output); >87 dB (20 Hz to 20 kHz, Wideband, Unweighted, Referred to 2 V RMS Output) |
| Output Impedance | <2.5 Ω, 20 Hz to 20 kHz |
| Amplifier Section | |
| Frequency Response | <2 Hz to 20 kHz, +0/–0.2 dB; <2 Hz to 100 kHz, +0/–3 dB |
| Signal-To-Noise Ratio | >103 dB (20 Hz to 20 kHz, A-Weighted); >100 dB (20 Hz to 20 kHz, Wideband, Unweighted) |
| Total Harmonic Distortion + Noise | <0.035% at 1 kHz, 125 W, 8 Ω; <0.18% at 20 kHz, 125 W, 8 Ω |
| Output Power | 125 W RMS per Channel at 8 Ω, 20 Hz to 20 kHz |
| Output Impedance | <0.098 Ω, 20 Hz to 10 kHz; <0.11 Ω at 20 kHz |
| Damping Factor | >82, 20 Hz to 10 kHz; >72 at 20 kHz (All Referred to 8 Ω) |
