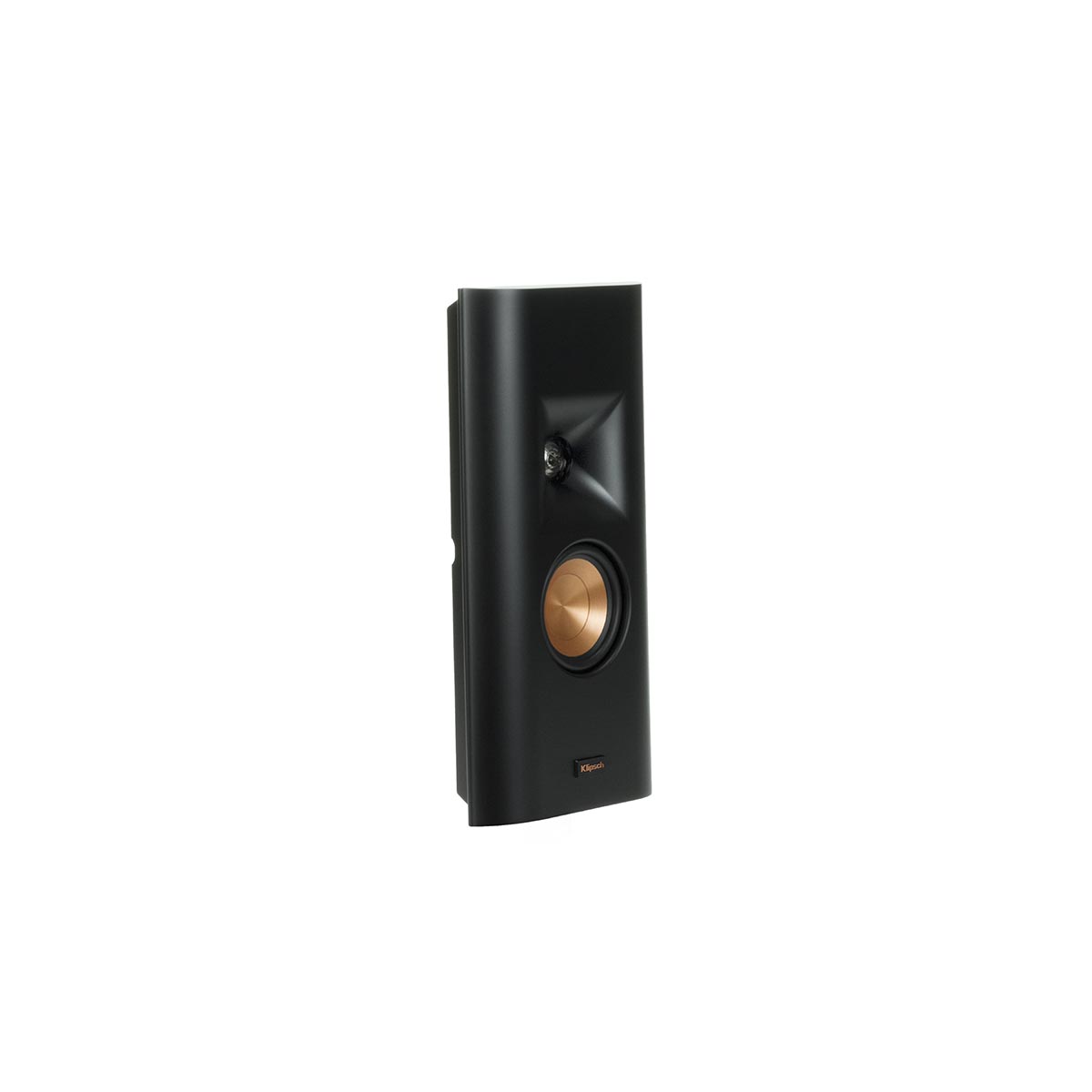

RP-140D On-Wall Speaker
The Reference Premiere Designer On-Wall RP-140D brings the dynamic, detailed, powerful sound of the Reference Premiere box speakers to a slim, on-wall solution. Featuring a 3.5” Cerametallic™ woofer and 1” Titanium Dome Linear Travel Suspension (LTS) tweeter, this on-wall speakers offers flexible placement for front LCR, or side/rear surrounds.
Key Features
- Slim On-Wall Solution Matches Today's Ultra-Flat TV's
- Reference Premiere Horn Loaded Acoustic Technology

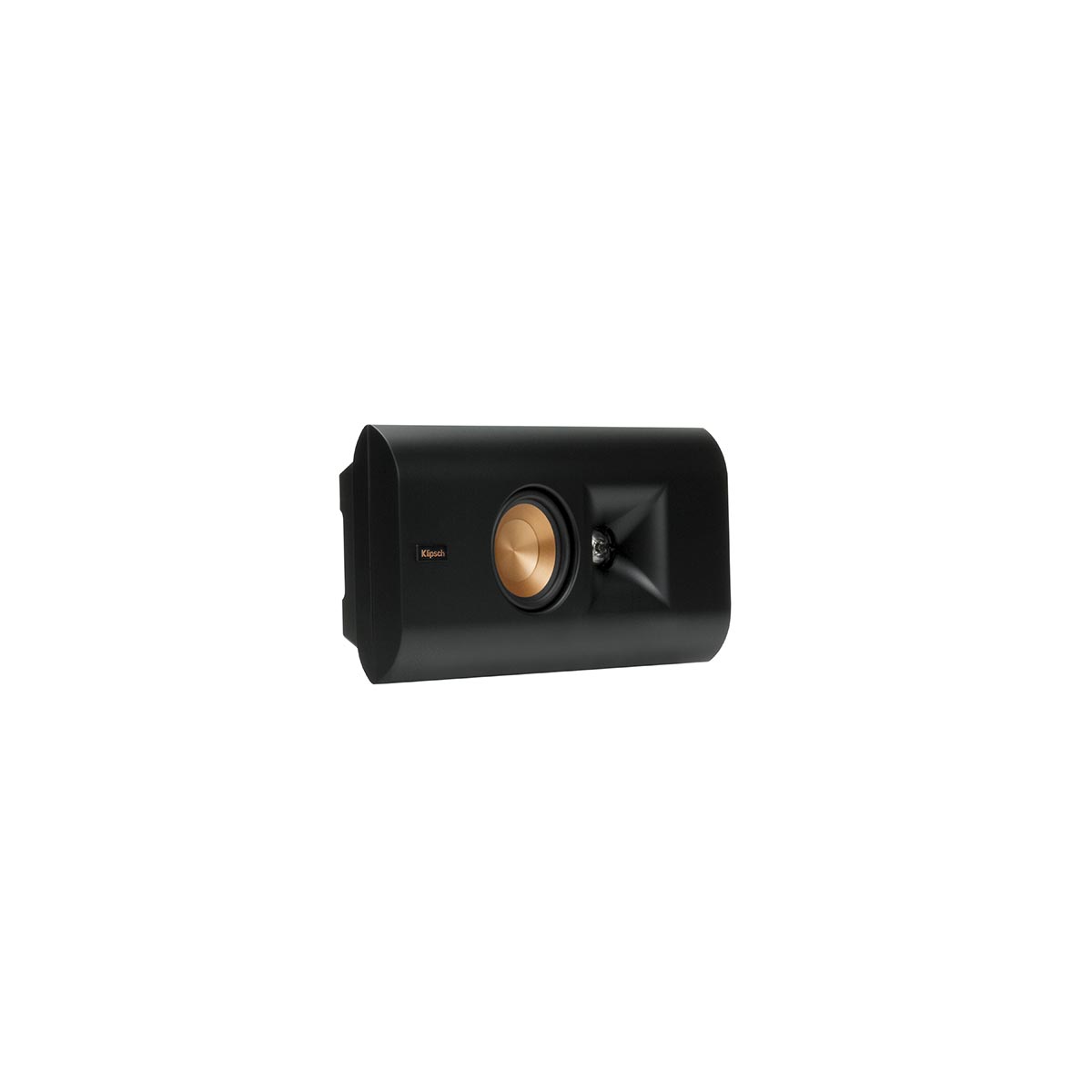

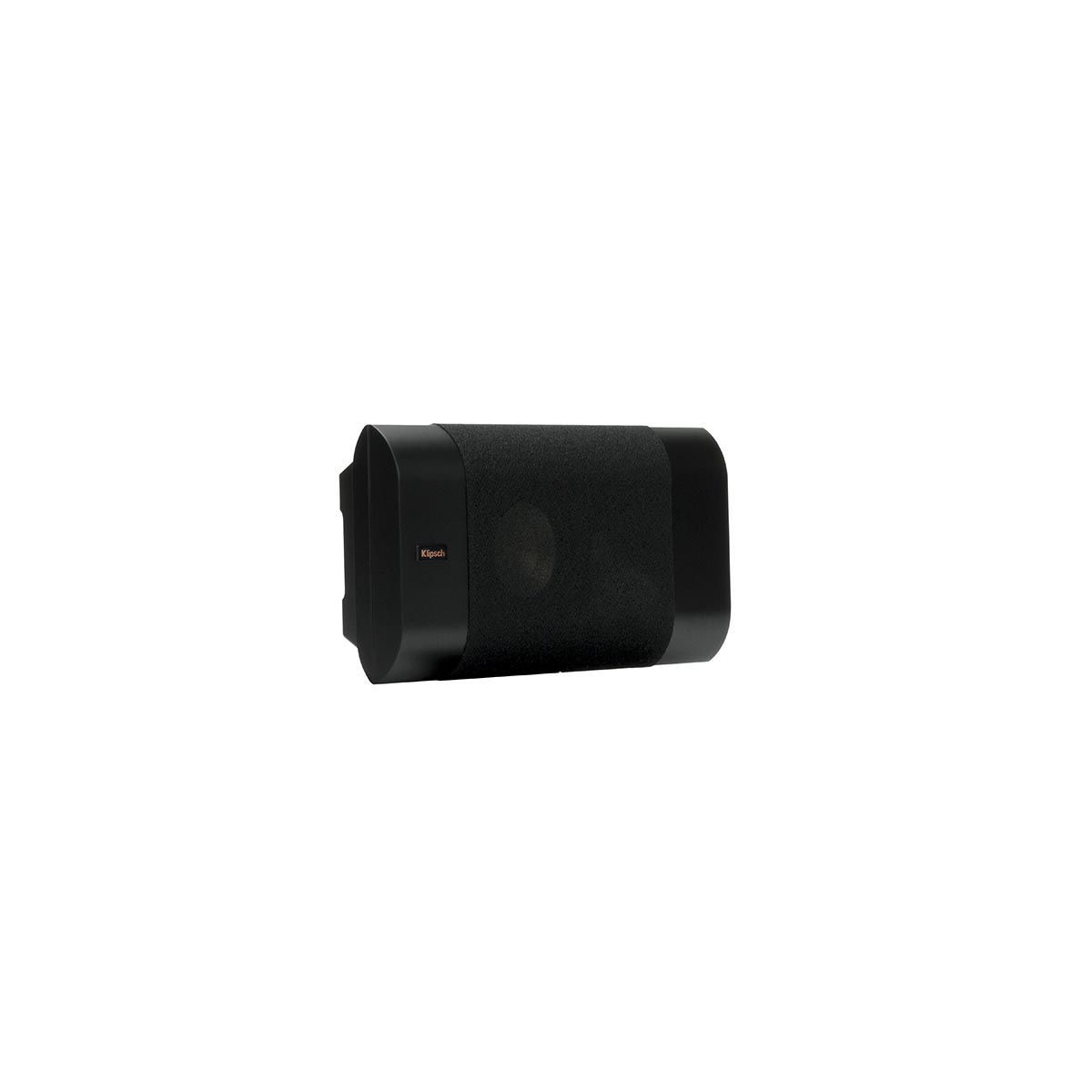

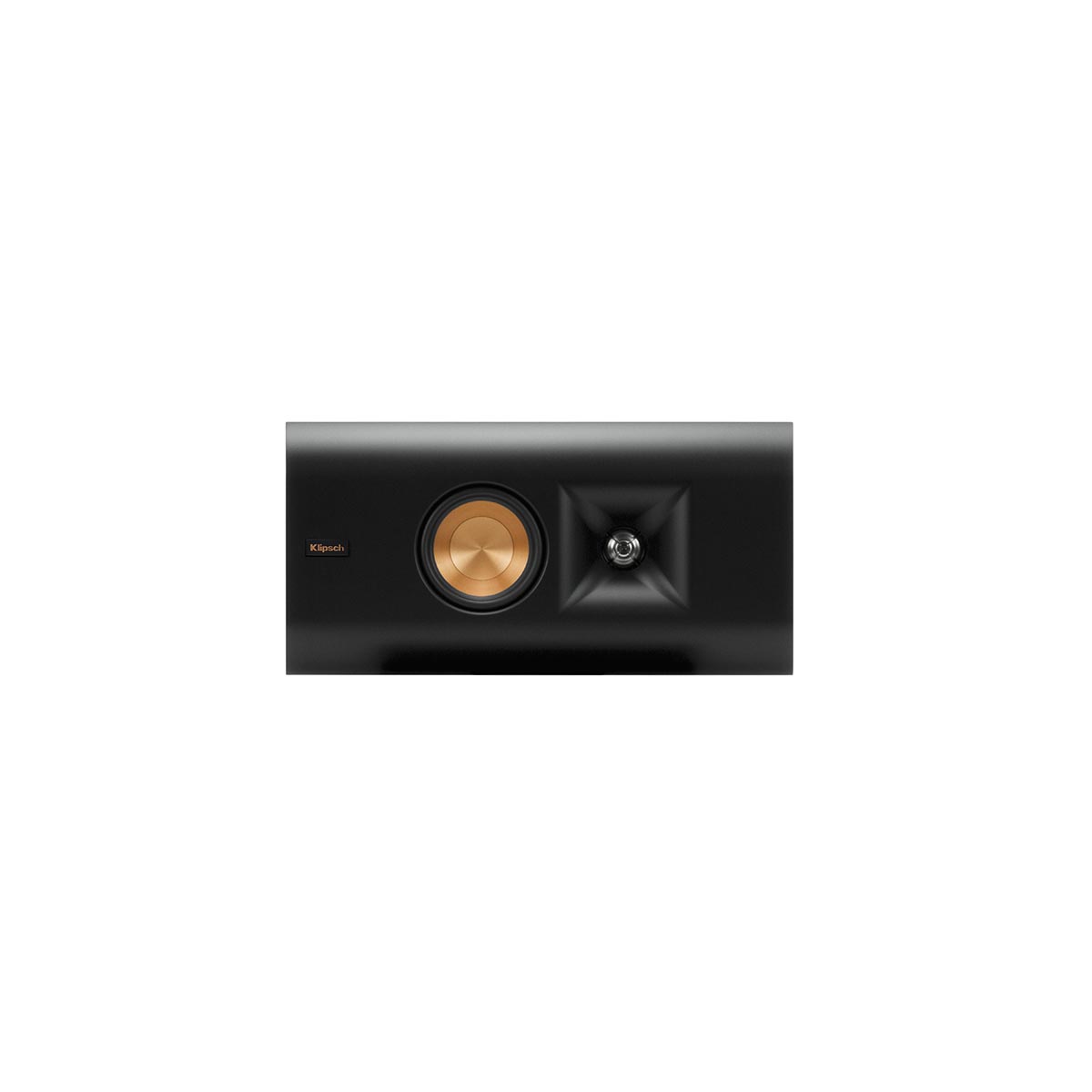

- Horizontal and Vertical Mounting Options
- Single 1” Titanium Dome Linear Travel Suspension (LTS) tweeter
- Single 3.5" Cerametallic™ Woofer
- Dual 4-Way Keyholes for secure on-wall mounting
- Magnetic Wrap-Around Grille
- Included glass base for table-top mounting
- Matte Black Painted Finish Blends Seamlessly into Today’s Modern Interiors

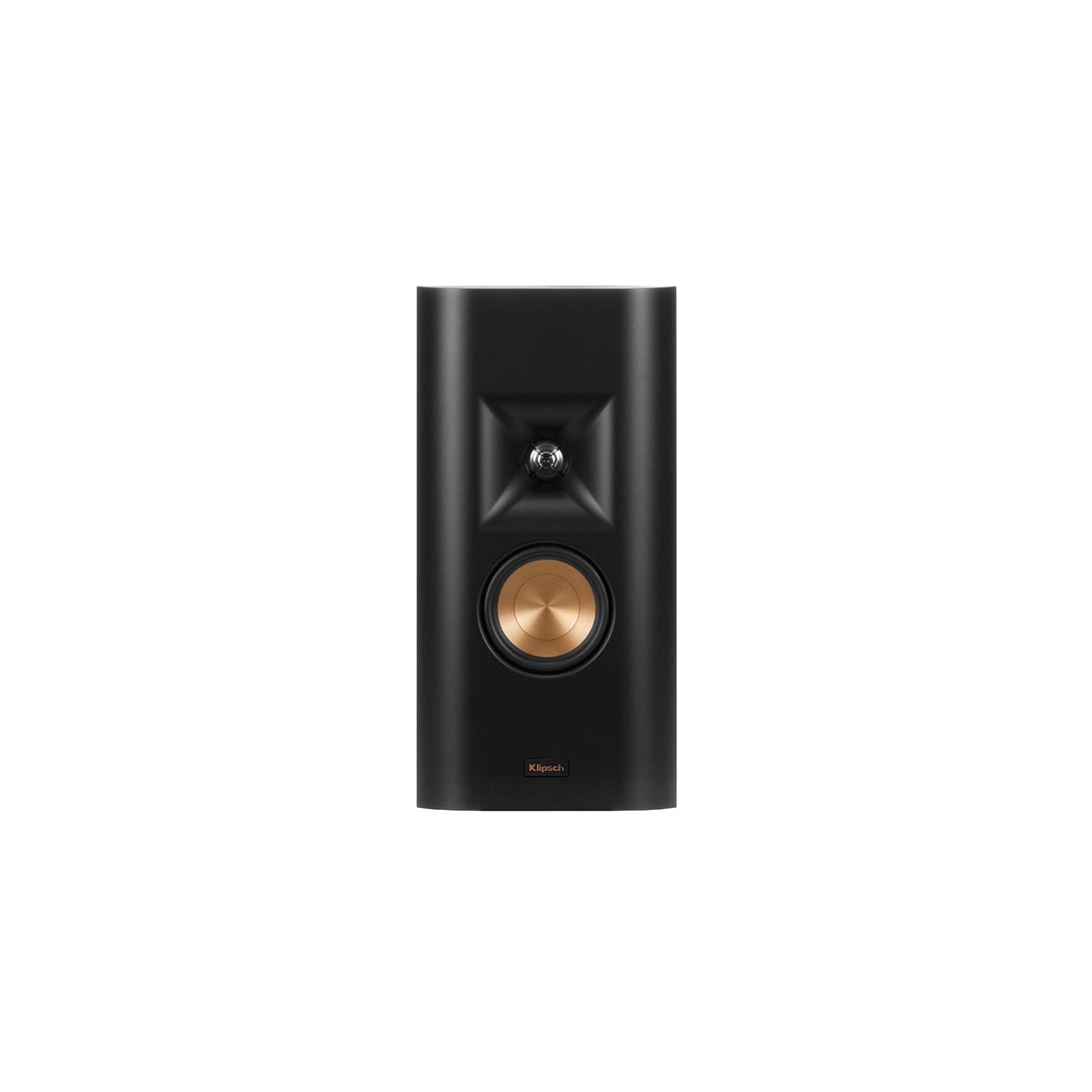

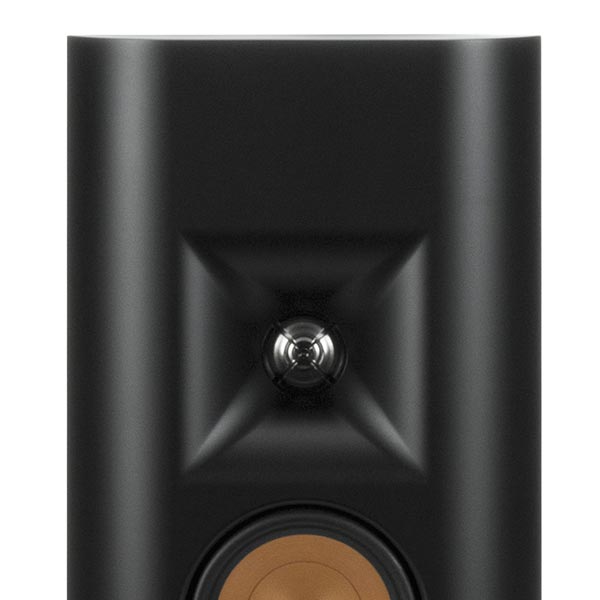

90x90 Tractrix Horn
The Tractrix® horn geometry helps to improve high-frequency response and extension, while enhancing imaging and dynamics. It also focuses the high frequency sounds towards the listening area, for the cleanest, most natural sound possible.
Linear Travel Suspension (LTS) Titanium Tweeter
The same tweeter used in the Reference Premiere box line, a Linear Travel Suspension maximizes dynamics for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

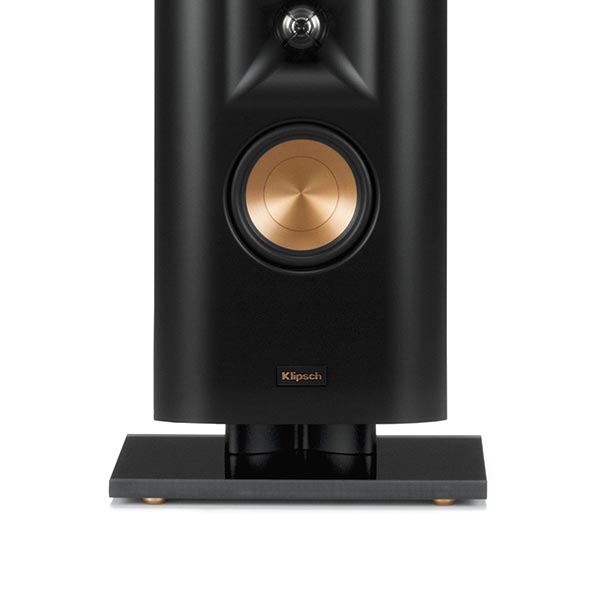

Spun Copper Cerametallic Woofers
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.

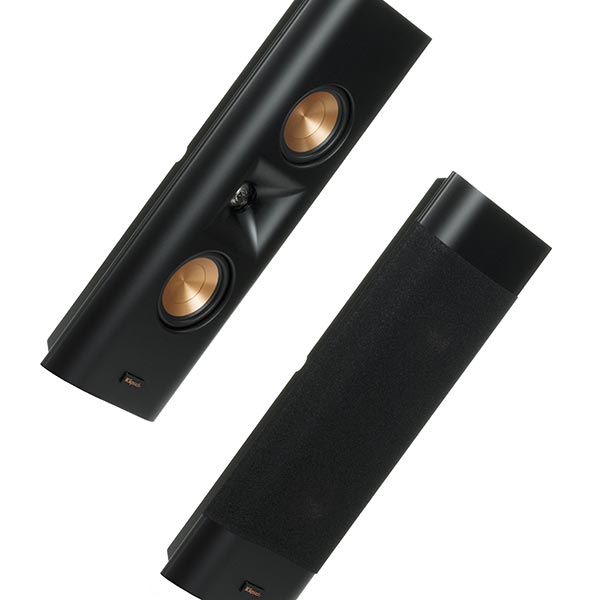

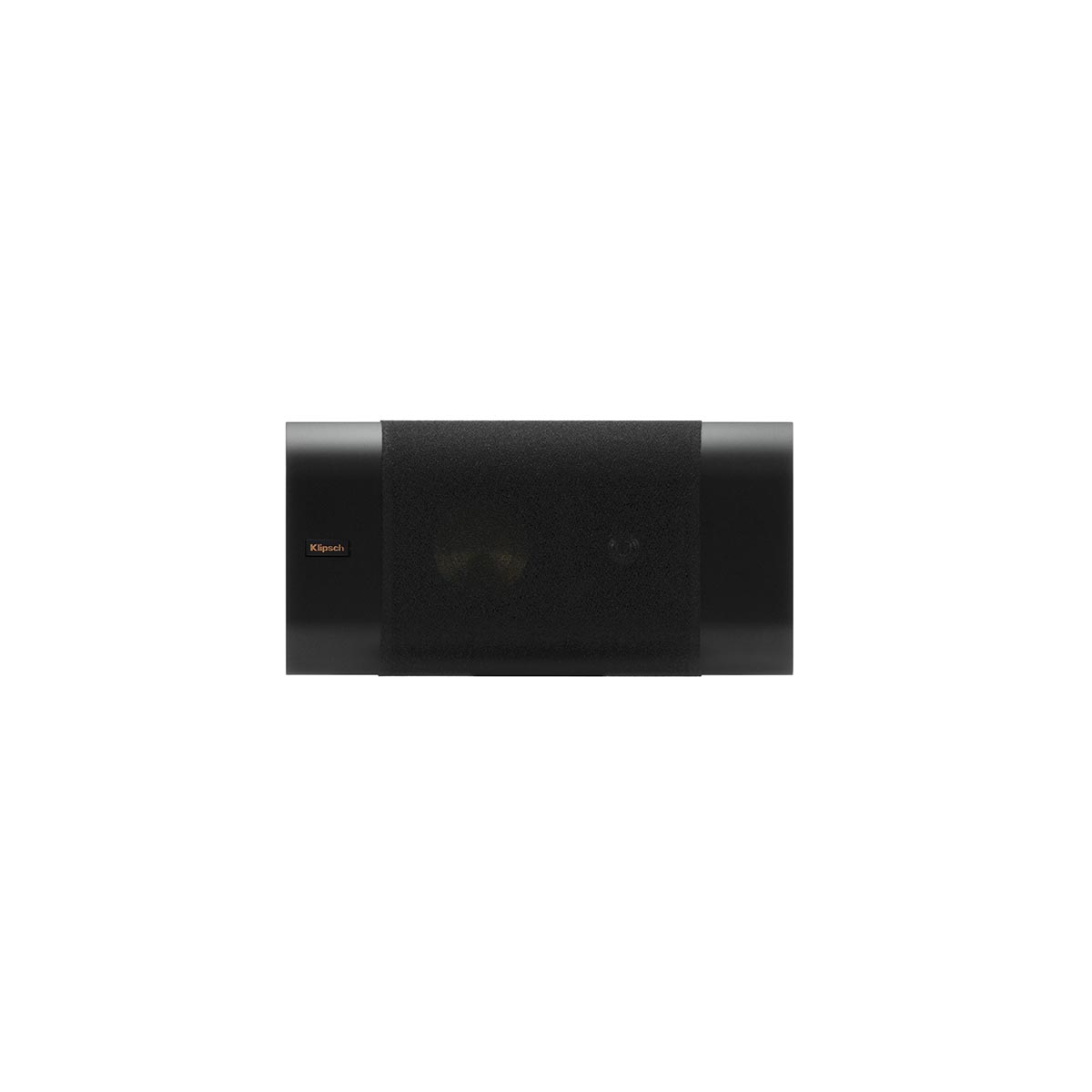

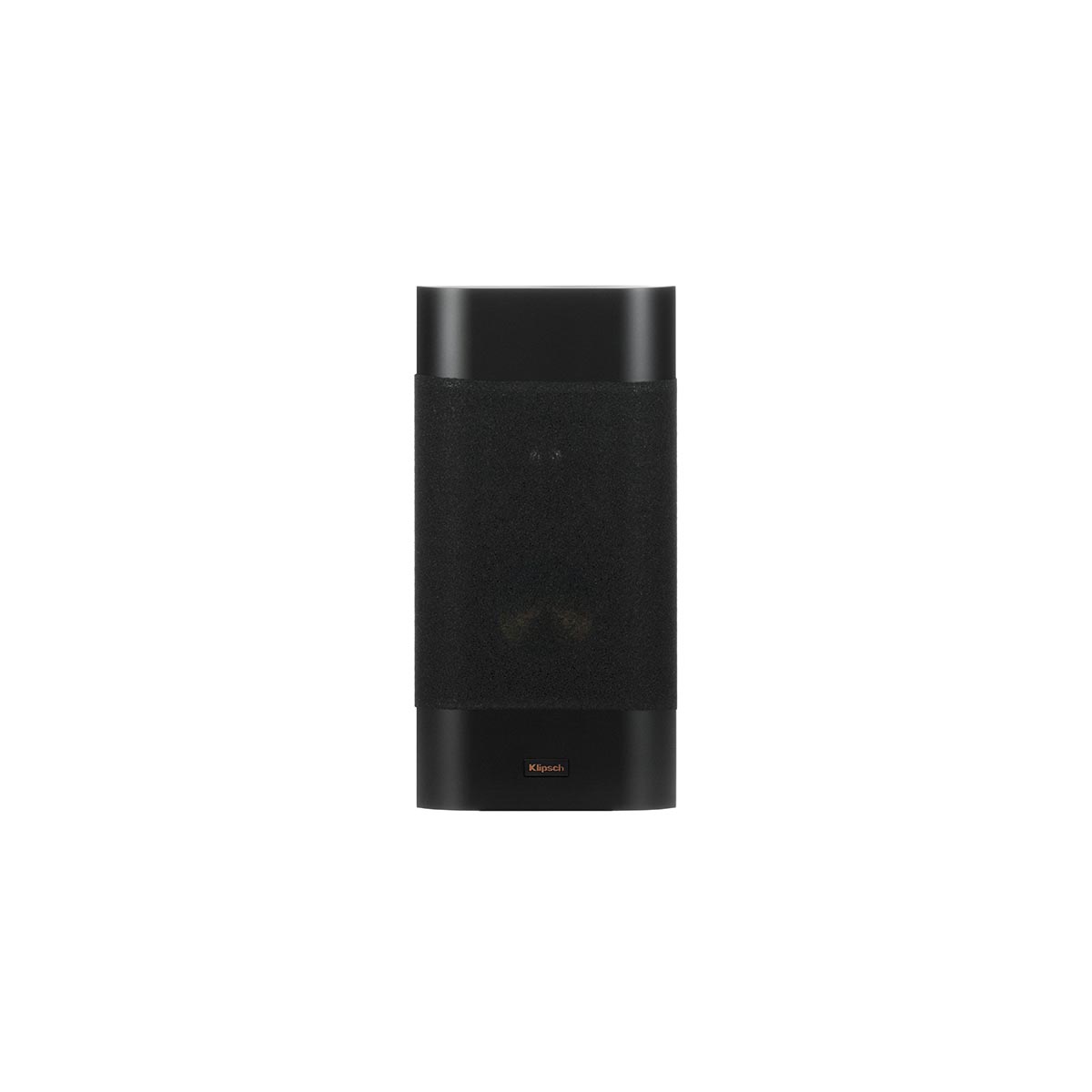

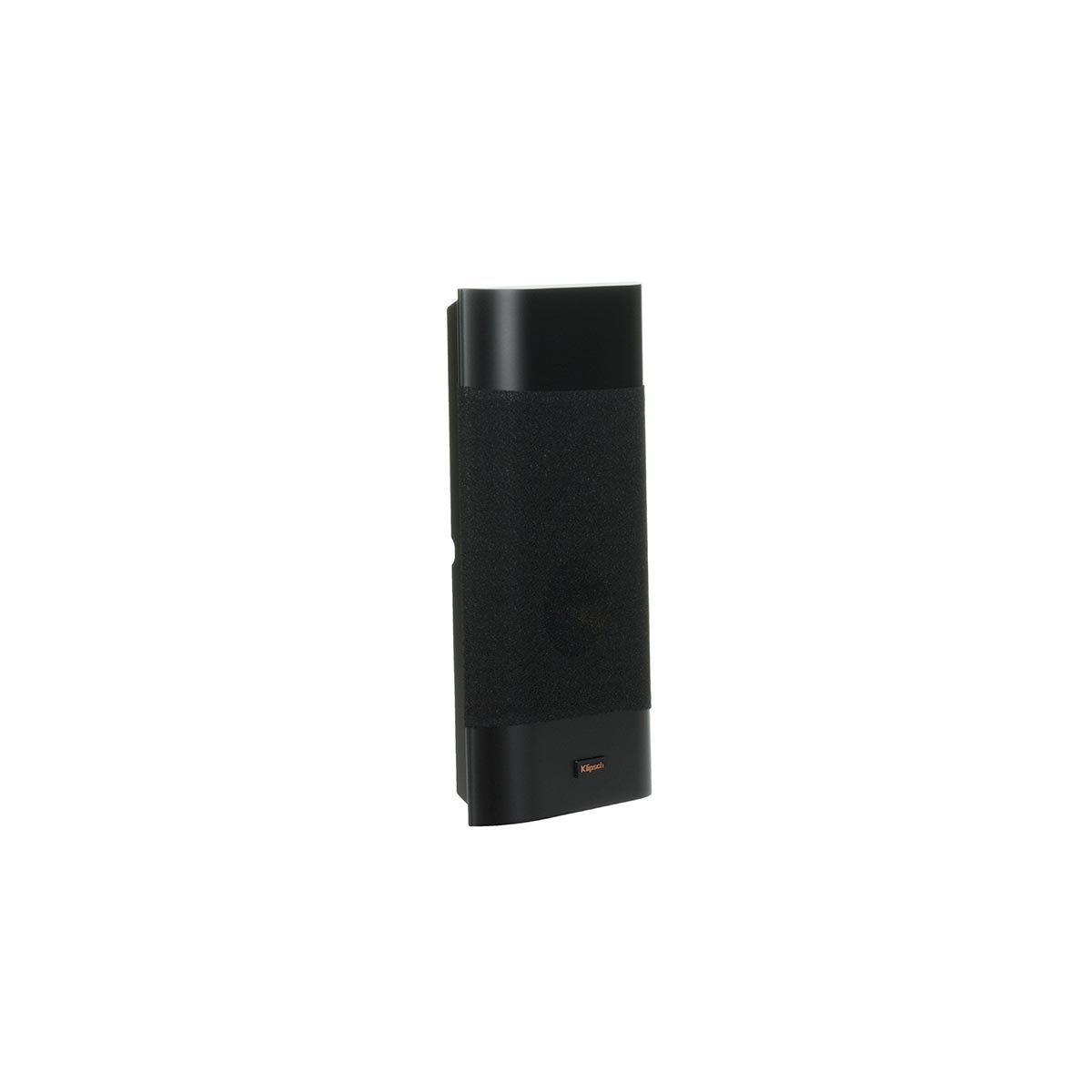

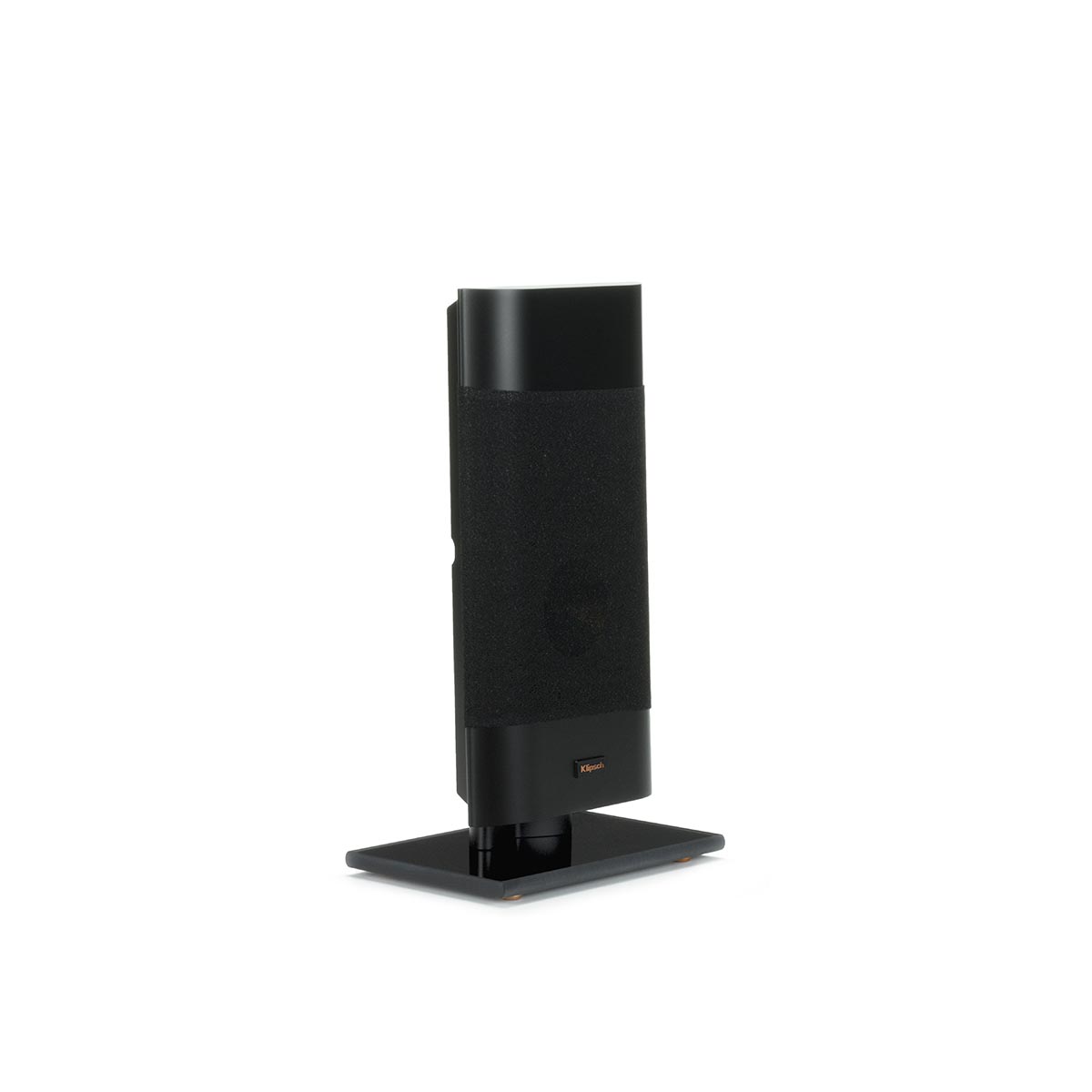

Wrap Around Magnetic Grille
Front grille attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

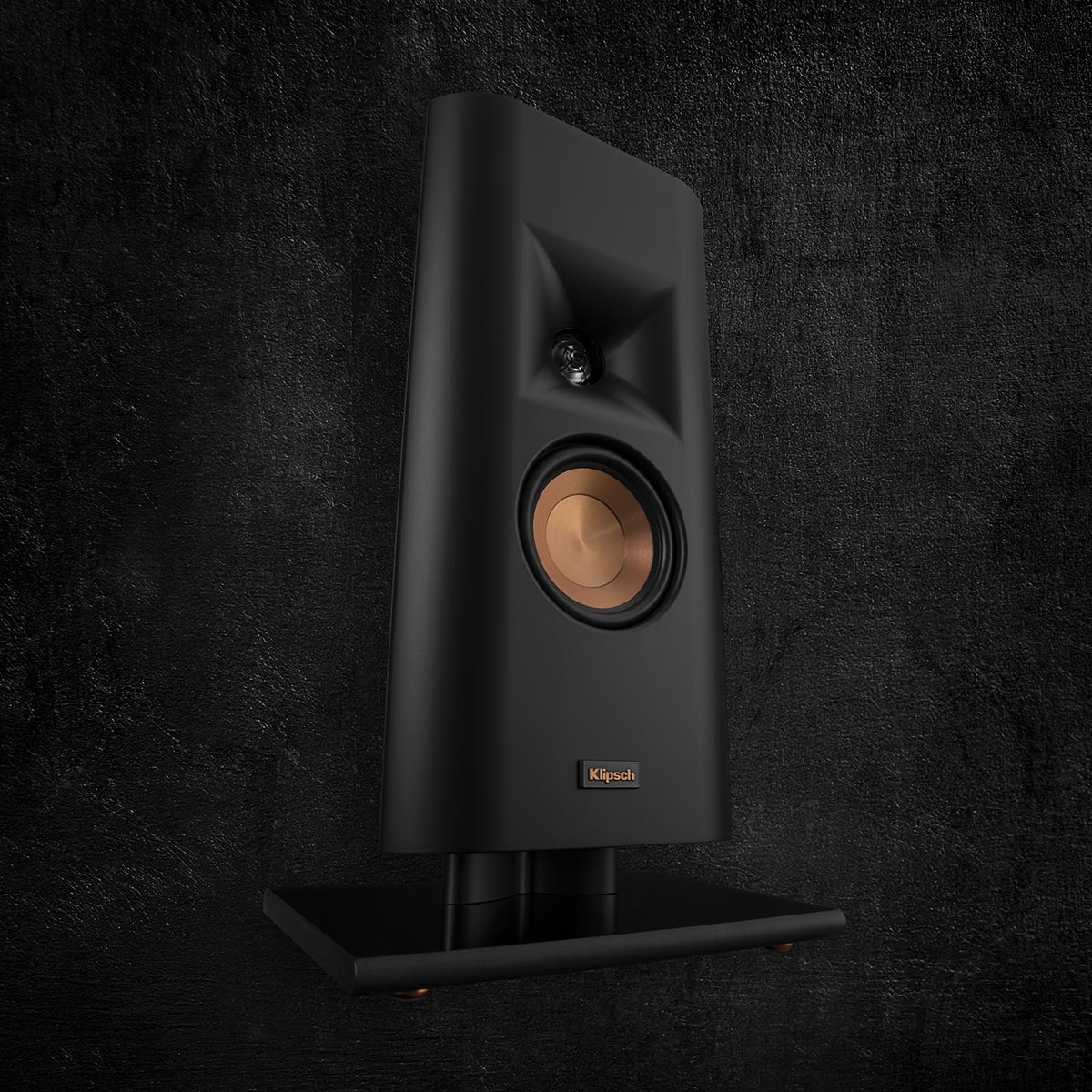

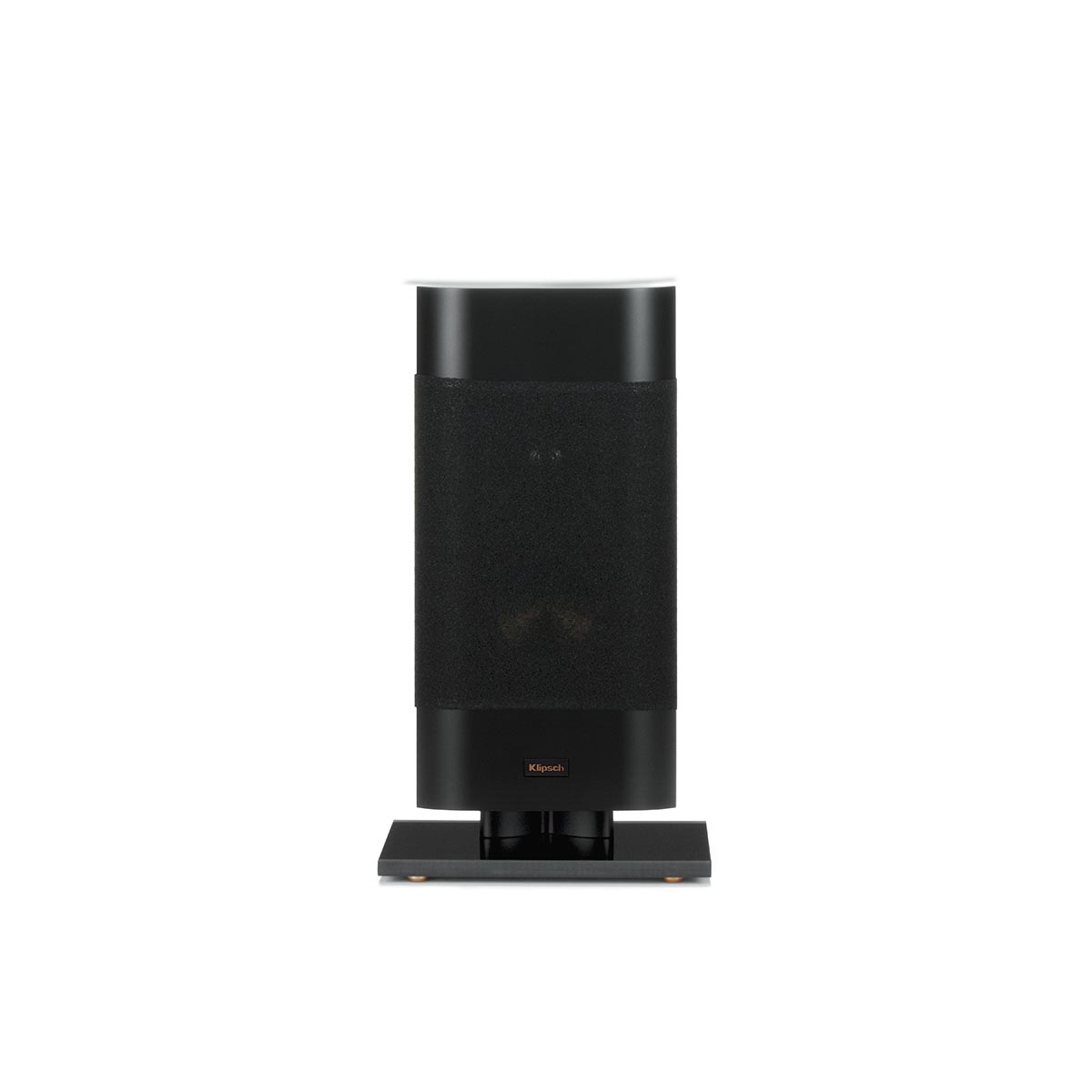

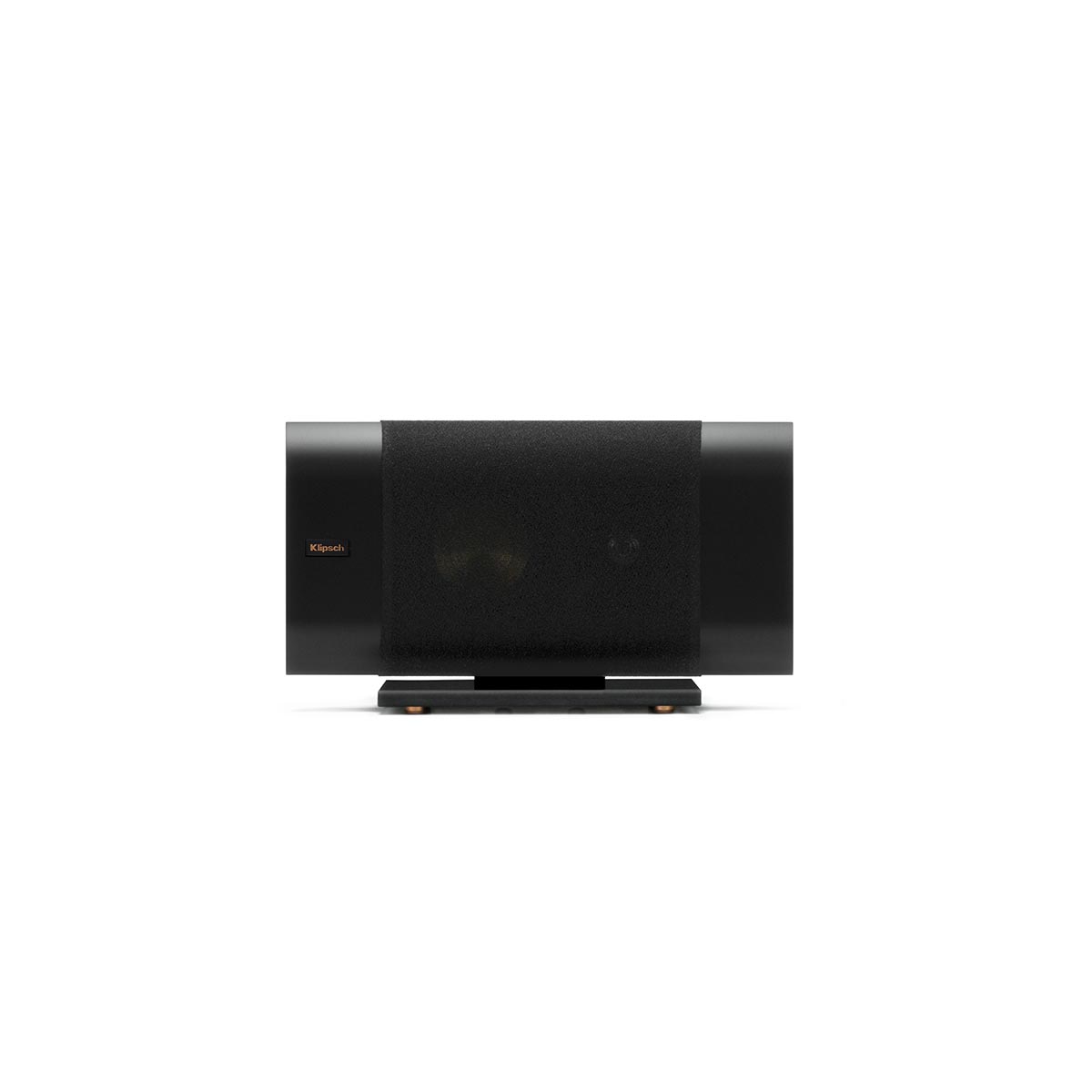

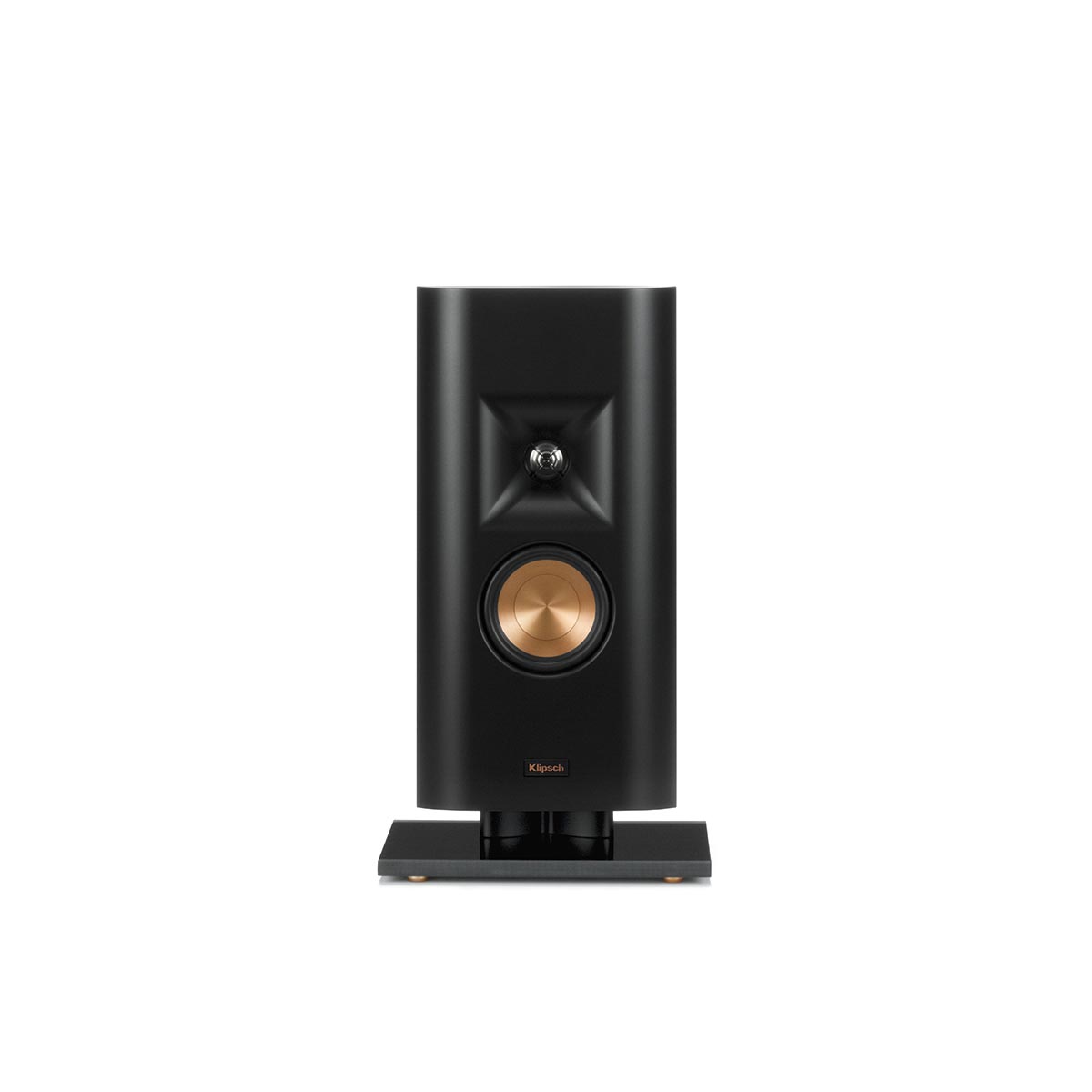

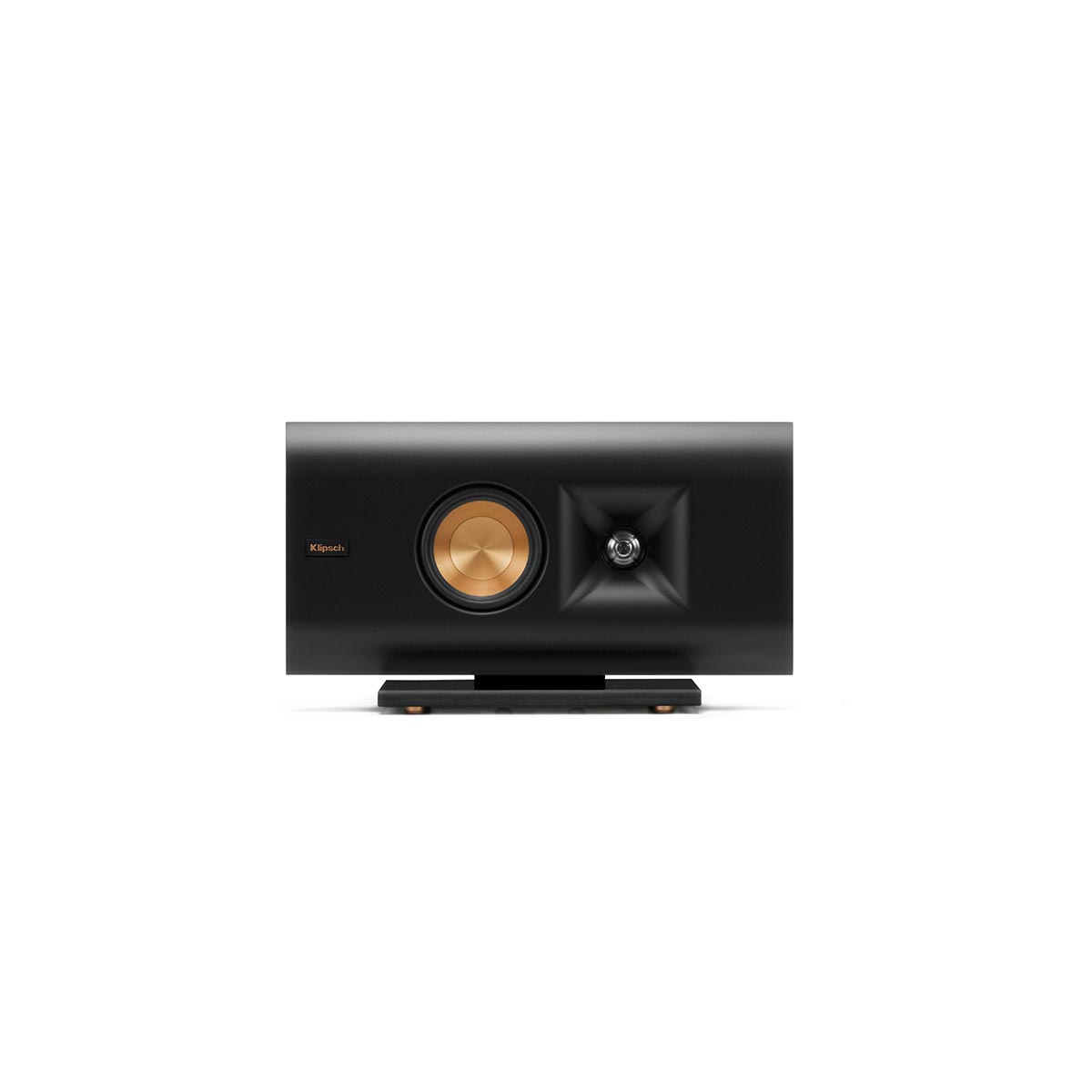

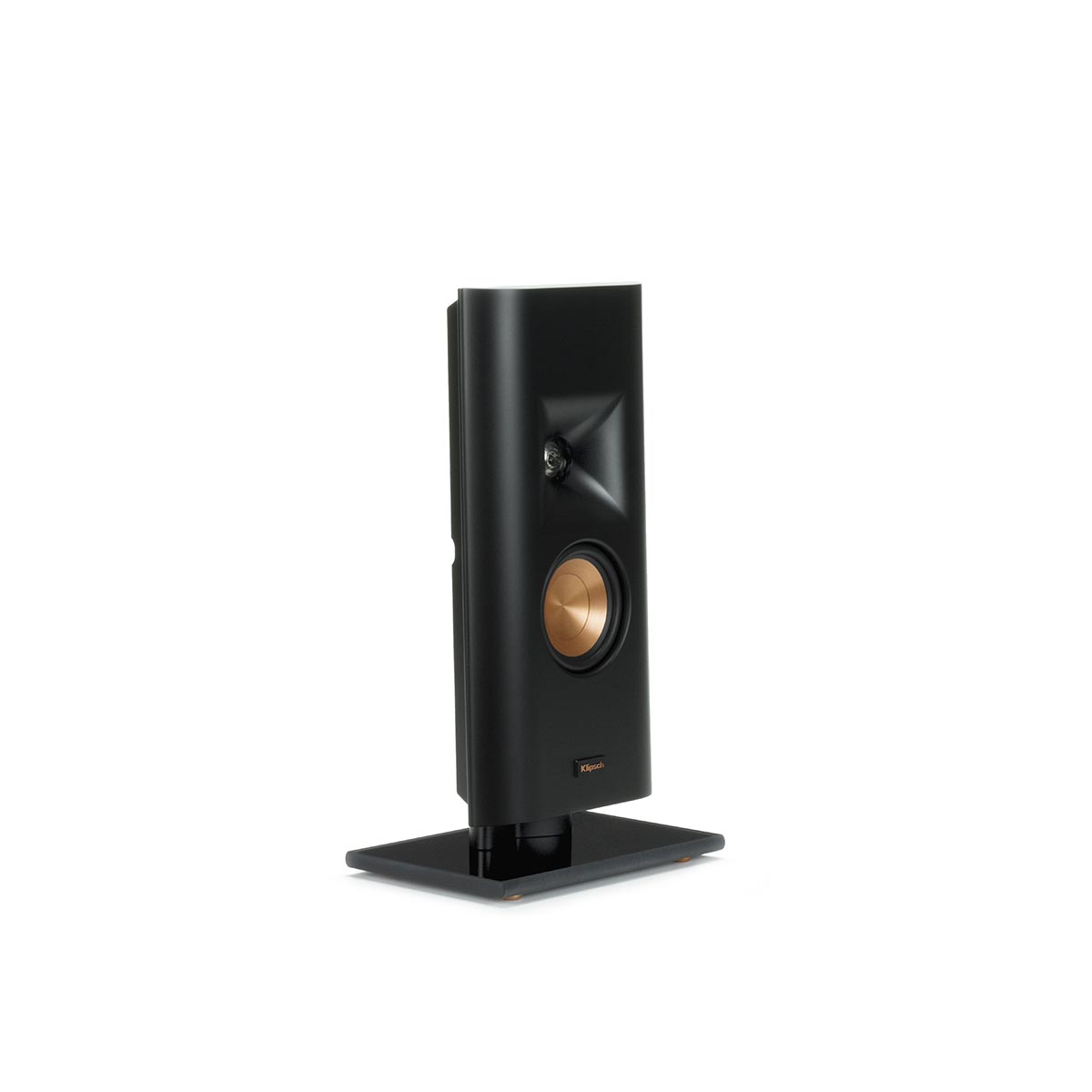

Table Mount Included

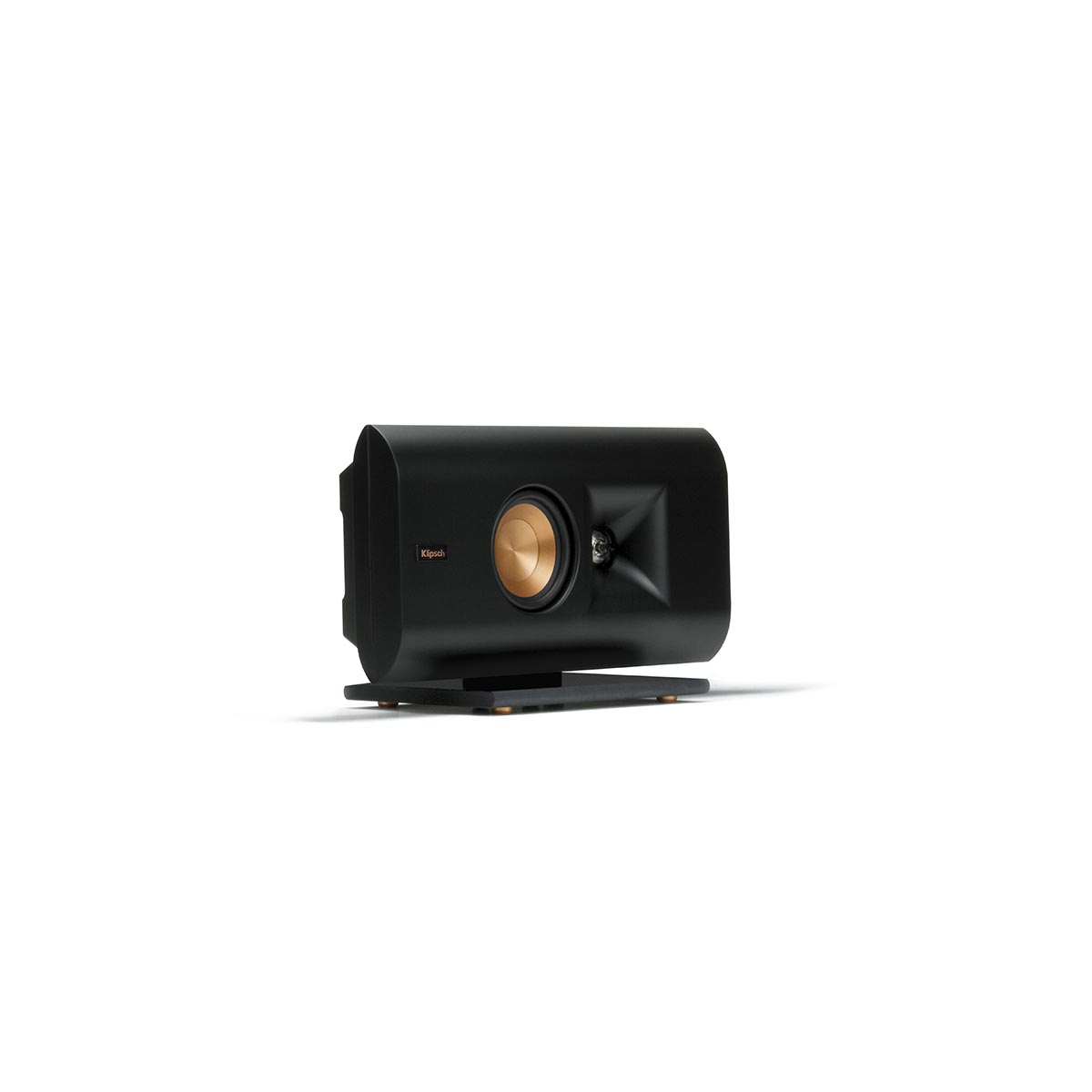

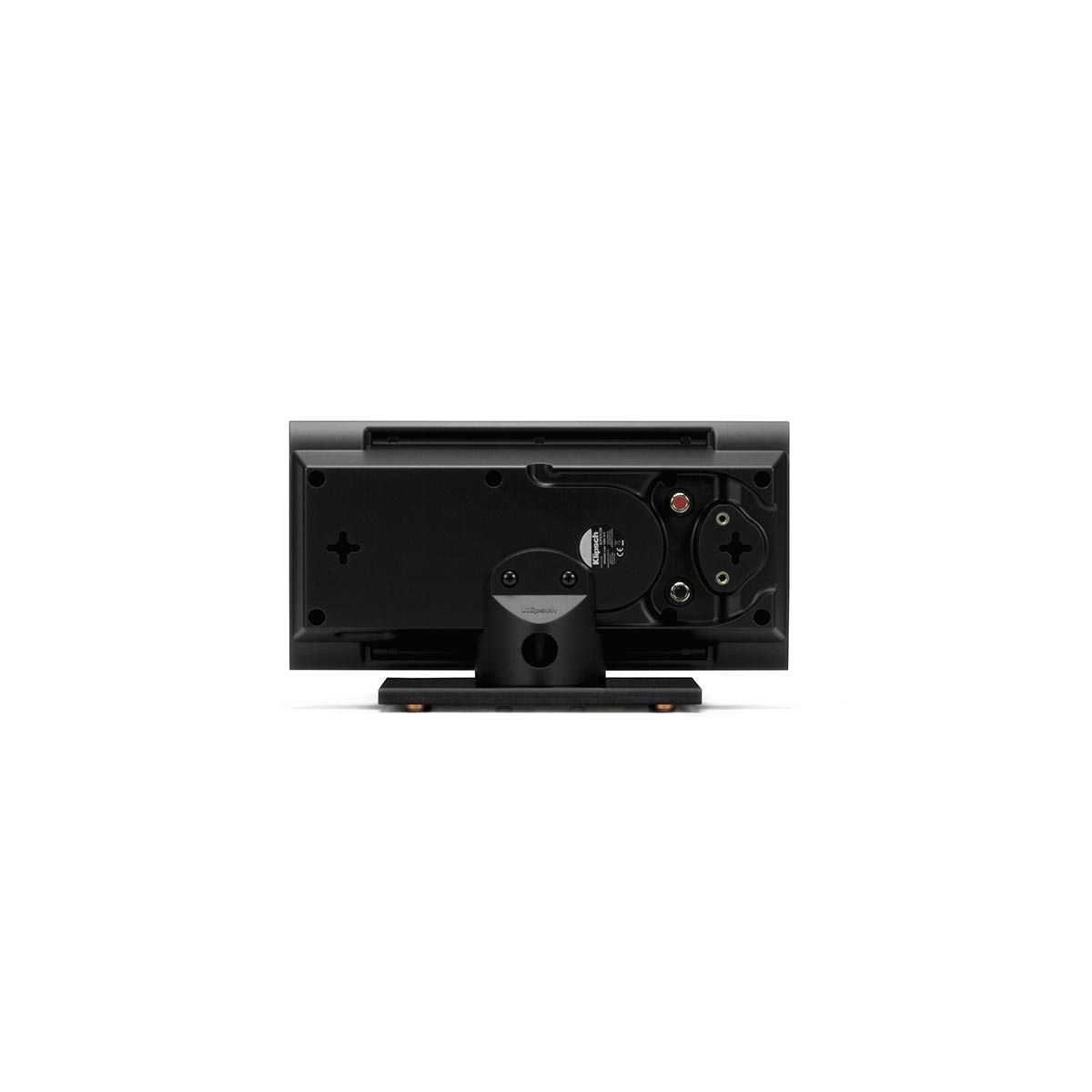

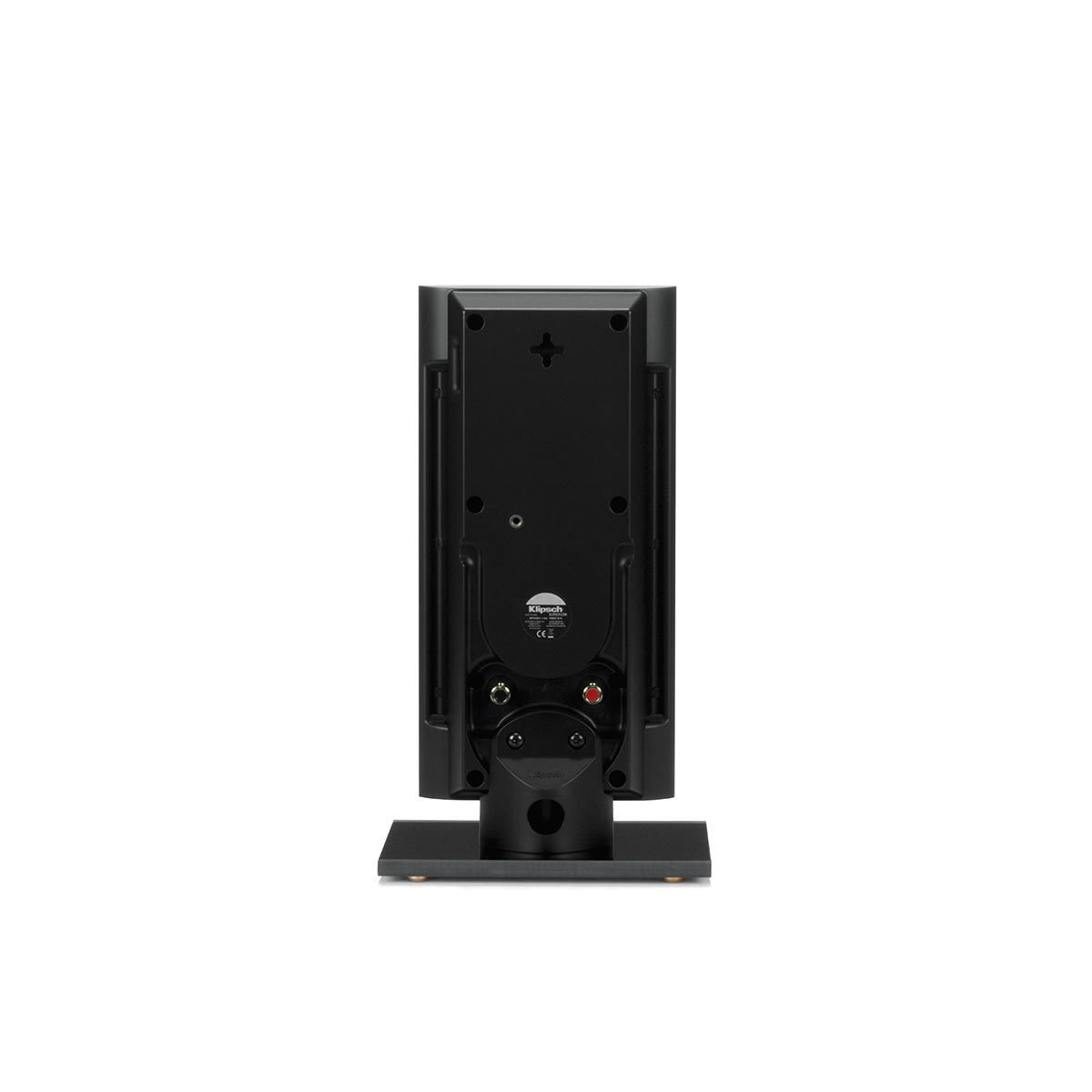

Dual four-way keyholes allows for easy, tight-to-the-wall mounting either vertically or horizontally, while the included glass base provides a luxurious, modern table-top or bookshelf option.
| Specifications | |
| Frequency Response | 69 Hz - 25 kHz +/- 3 dB |
| Sensitivity | 91 dB @ 2.83 V / 1 m |
| Power Handling (Continuous / Peak) | 50 W / 200 W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 2,200 Hz |
| High Frequency Driver | 1” (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn |
| Low Frequency Driver | 3.5” (8.89 cm) Cerametallic Cone Woofer |
| Enclosure Material | ABS |
| Enclosure Type | Bass Reflex |
| Inputs | Single Binding Posts |
| Height | 305 mm (12”) |
| Width | 152 mm (6”) |
| Depth | 61 mm (2.4”) |
| Weight | 1.7 kg (3.75 lb) |
| Finish | Matte Black |
