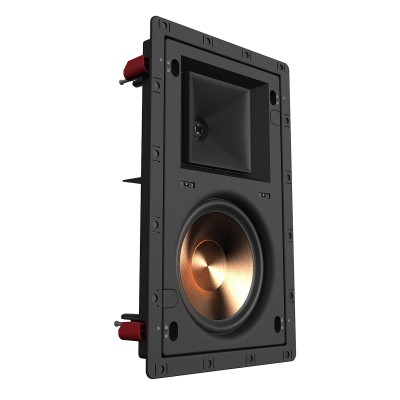

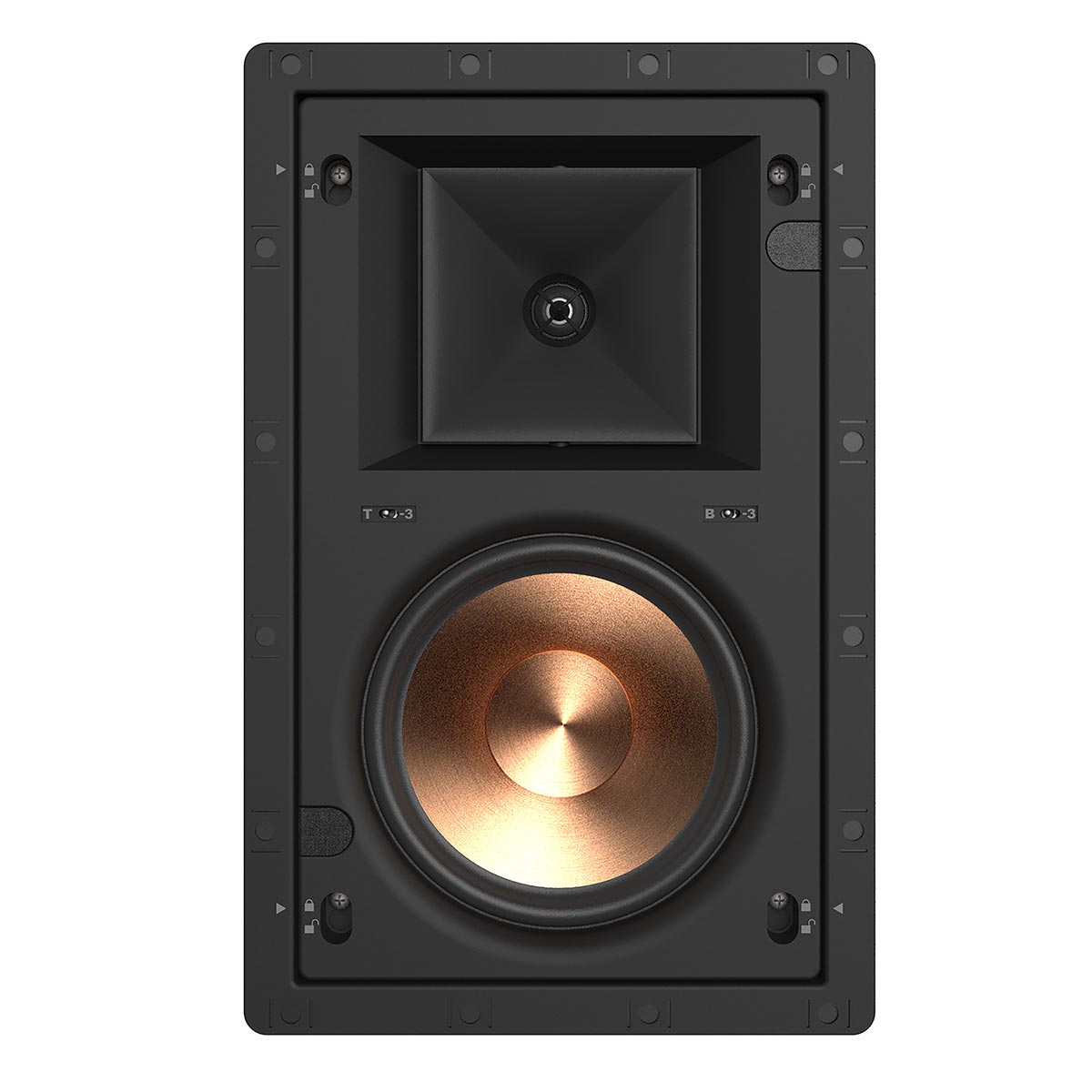

PRO-16RW In-Wall Speaker
Featuring a 6.5” Injection Moulded Graphite (IMG) Woofer and 1” Pivot Aluminium Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-18RW brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.
Key Features
- 6.5” Injection Moulded Graphite (IMG) Woofer
- 1” Pivot Aluminium Dome ABS Tractrix® Horn-Loaded Tweeter
- Exclusive, modular SecureFit™ Installation System
- Bezel-Free square and round paintable magnetic grilles
- Controlled Dispersion™ Technology
- Magnetic paint shield

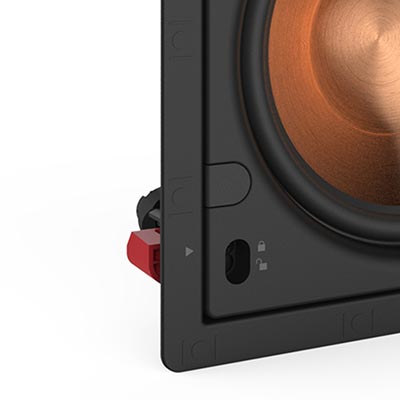

SecureFit™ Installation System
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.

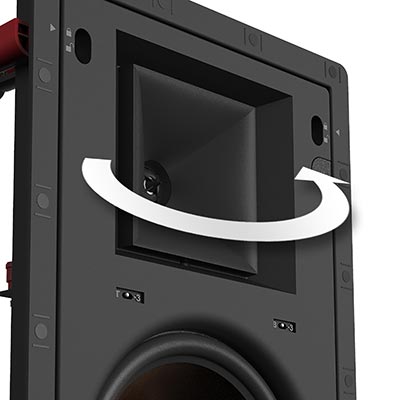

Controlled Dispersion™ Technology
Controlled Dispersion™ Technology allows for the tweeter to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-centre listening positions and the ideal solution for challenging installation positions.

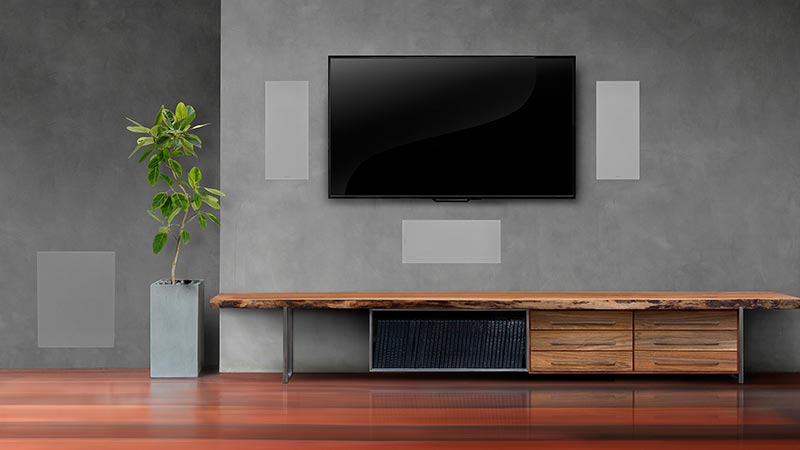

All New, Bezel-Free Magnetic Grille
A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

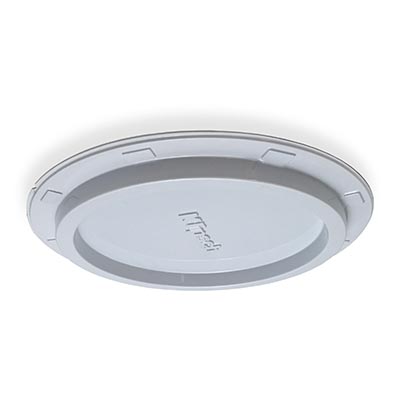

PVC Paint Shield Included
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
| Specifications | |
| Frequency Response | 63 Hz - 23 kHz +/- 3 dB |
| Sensitivity | 93 dB @ 2.83 V / 1 m |
| Power Handling (Continuous / Peak) | 50 W / 200 W |
| Impedance | 8 Ohms Compatible |
| High Frequency Driver | 1" (2.54 cm) Aluminium Dome Tweeter Mated to a 90°x90° Tractrix® Horn |
| Low Frequency Driver | 6.5" (16.51 cm) IMG Woofer |
| Coverage Angle | 90° x 90° |
| Enclosure Material | ABS |
| Enclosure Type | Infinite Baffle |
| Cutout Dimensions (H x W) | 330 x 203 mm (13” x 8”) |
| Mounting Depth | 96 mm (3.78”) |
| Product Dimensions (H x W x D) | 358 x 228 x 98 mm (14.1” x 9.0” x 3.9”) |
| Weight | 3.6 kg (7.9 lb) |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Included Accessories | Magnetic Grille, Paint Shield |
| Installation Kit | IK-650-W II or IK-650-W (Sold Separately) |
| Fire Rated Enclosure | ME-650-W (Sold Separately) |
