PRO-14RC In-Ceiling Speaker
Utilising a custom-designed tweeter bridge with “shark fin” and asymmetric dimples to diffuse standing waves, the PRO-14RC provides crisp and clear audio over a wider range from only a 4.9” overall grille footprint. The Sky Hook® patented Cinch by Swarm Installation System provides incredibly fast and secure installations saving both time and money. With both round and square flat magnetic grilles included in the box, the new PRO-14RC minimal footprint in-ceiling speaker provides installers the ideal distributed audio solution that even interior designers will love.
Key Features
- 3.5" Injection Moulded Graphite (IMG) Woofer
- 1” Fixed Aluminium Dome FEA Optimized Tweeter
- Exclusive, modular Patented Sky Hook® Cinch by Swarm
- Bezel-Free square and round paintable magnetic grilles
- Magnetic paint shield
- Minimal footprint
Patented Sky Hook® Tool-Free Installation System
The exclusive, patented Sky Hook™ Cinch by Swarm technology combines great sound with lightning-fast installation. Automatically engaging the dog legs when the Klipsch speaker is inserted into the cutout hole, the preset clamping force eliminates the possibility of over-torquing during installation. This tool-free, fast, easy installation system reduces install time by up to 75% and provides solid, reliable installation with premium sound. Available for the Klipsch Professional Series Minimal Footprint, Designer and Custom series speakers. Watch the video below for more details.

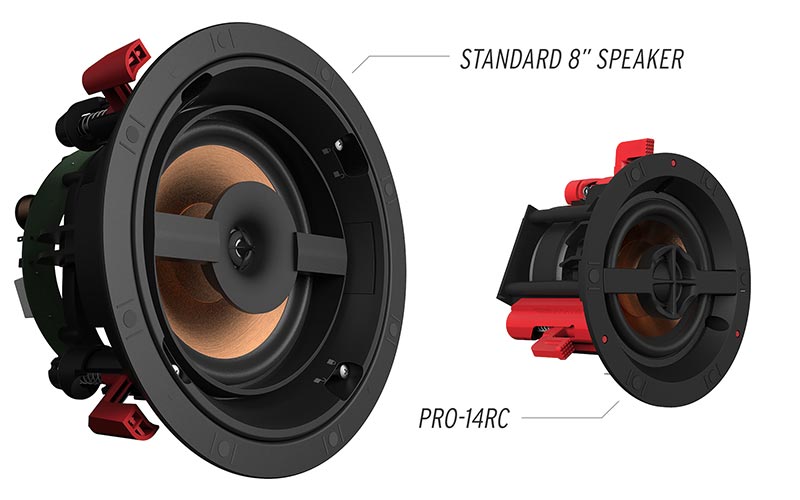

The Different is Clear
Compared to a standard 8" in-ceiling speakers, the PRO-14RC minimal-footprint in-ceiling speakers allows for maximum installation flexibility while being able to deliver the incredible acoustic signature that only Klipsch can deliver.

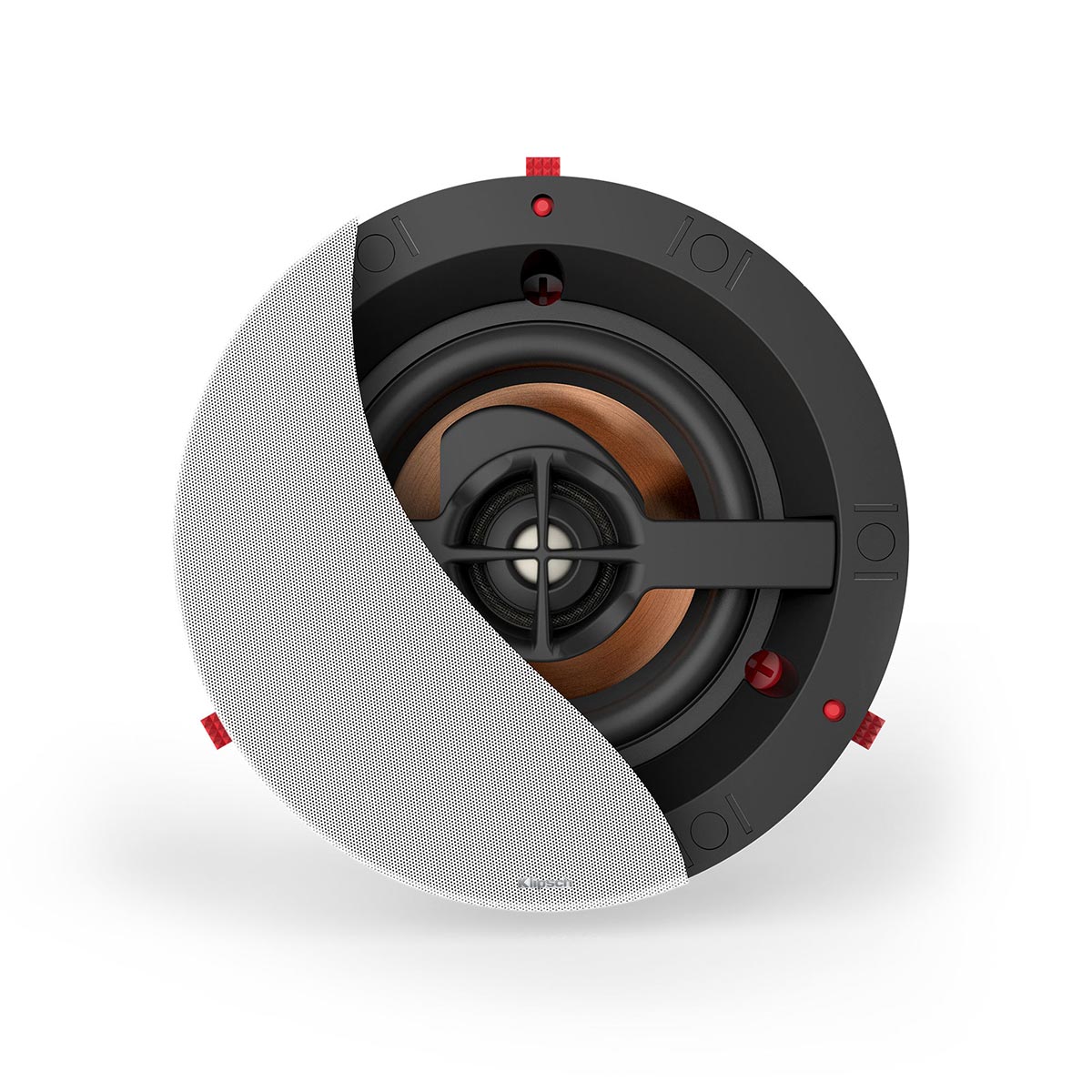

All New, Bezel-Free Magnetic Grille
A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
Minimal Footprint System
The PRO-14RC in-ceiling speakers pair perfectly with our PRO-800SW subwoofer - both requiring only a 4.9" overall grille footprint to deliver a non-invasive, incredibly minimal custom audio solution.
PVC Paint Shield Included
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

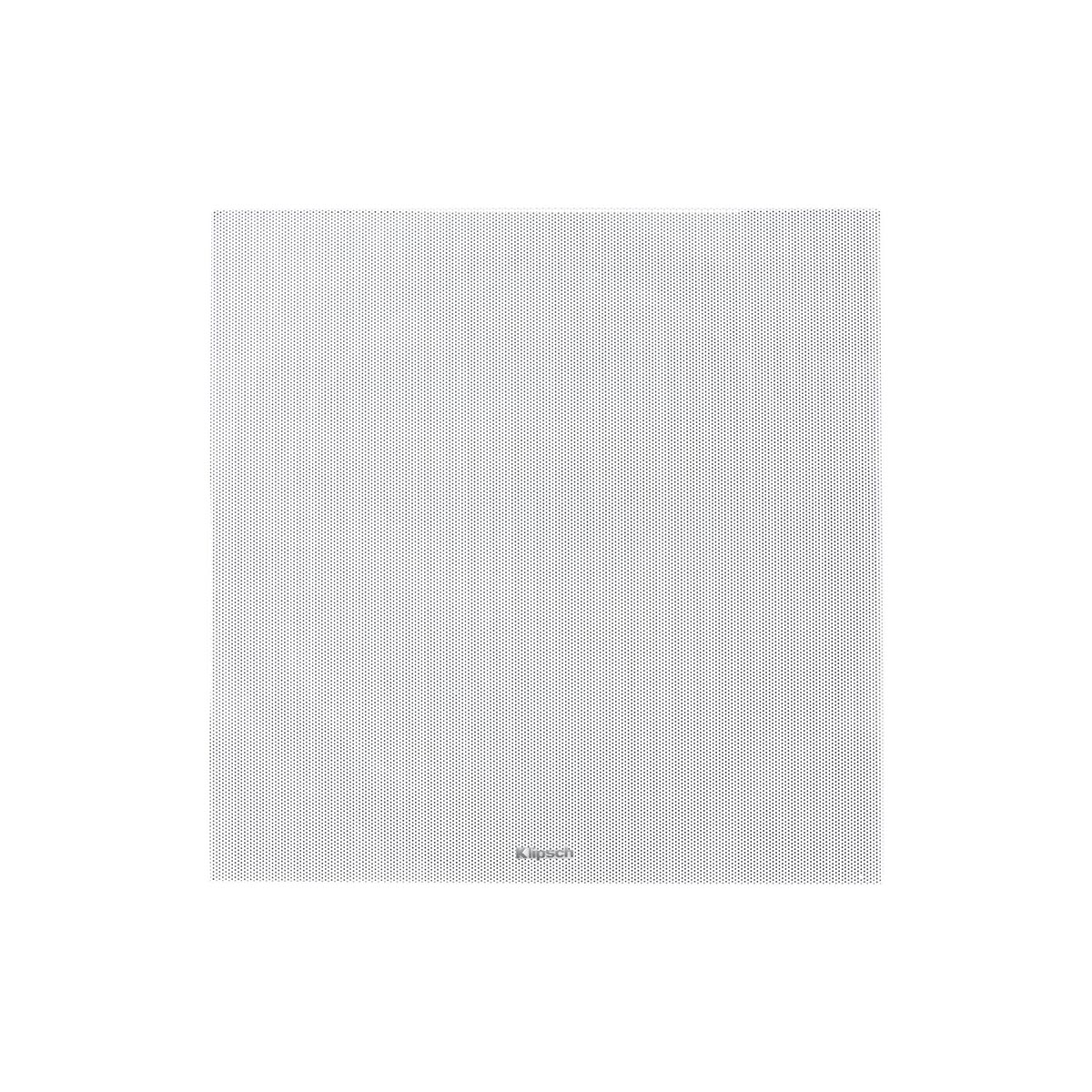

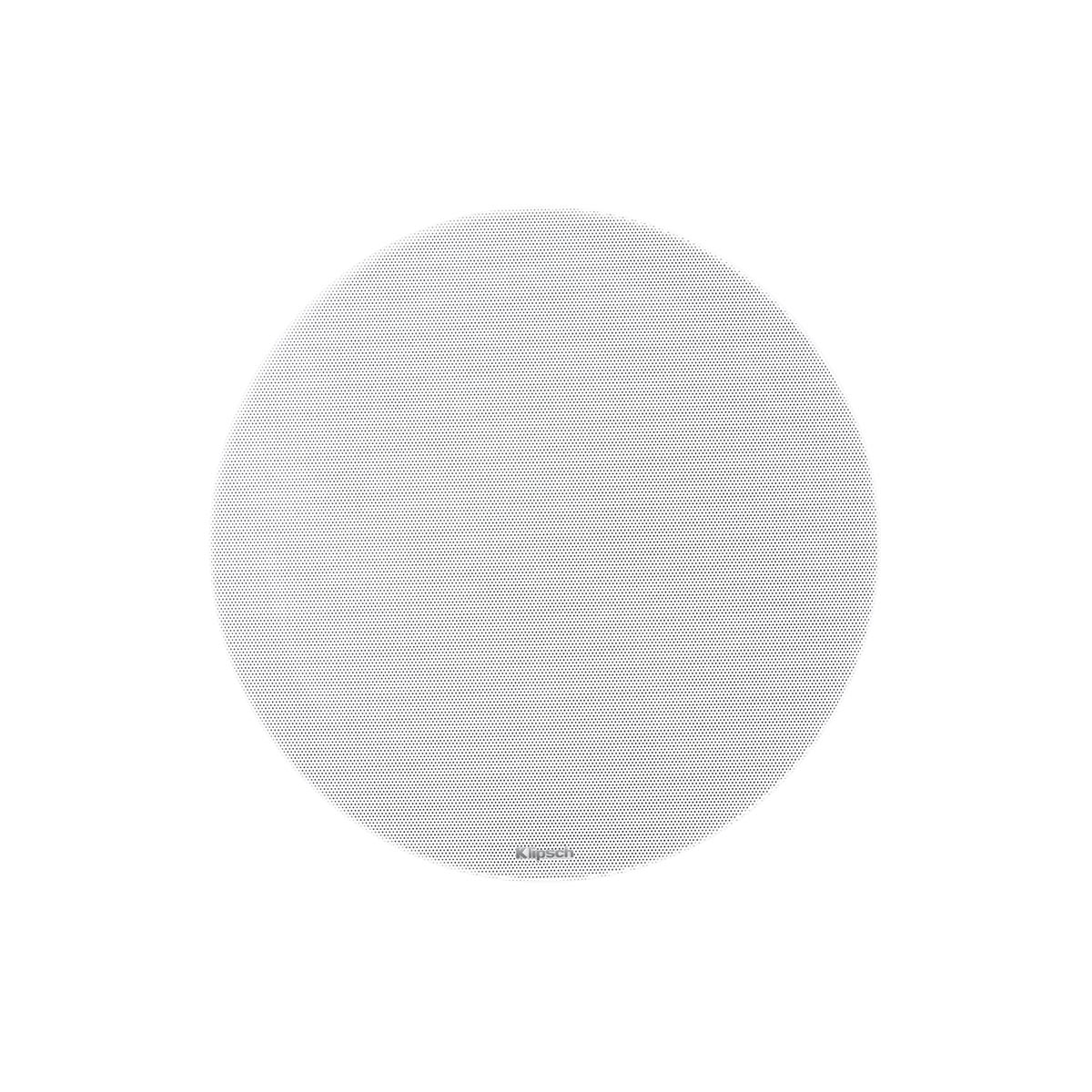

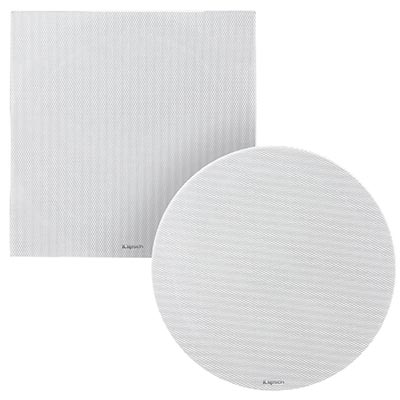

Square or Round Grilles
For whatever the installation demands, the PRO-14RC in-ceiling speakers come complete with both square and round grilles to match your desired aesthetic.
| Specifications | |
| Frequency Response | 92 Hz - 23 kHz +/- 3 dB |
| Sensitivity | 88 dB @ 2.83 V / 1 m |
| Power Handling (Continuous / Peak) | 30 W / 120 W |
| Impedance | 8 Ohms Compatible |
| High Frequency Driver | 1” (2.54 cm) Fixed Aluminium Dome FEA Optimised Tweeter |
| Low Frequency Driver | 3.5" (8.89 cm) IMG Woofer |
| Coverage Angle | 110° |
| Enclosure Material | ABS |
| Enclosure Type | Infinite Baffle |
| Cutout Diameter | 108 mm (4.25”) |
| Mounting Depth | 110 mm (4.34”) |
| Product Dimensions (H x W x D) | 123 x 123 x 113 mm (4.86” x 4.86” x 4.5”) |
| Weight | 1.8 kg (4 lb) |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Included Accessories | Round Grille, Square Grille, Paint Shield |
| Installation Kit | IK-400-C (Sold Separately) |
