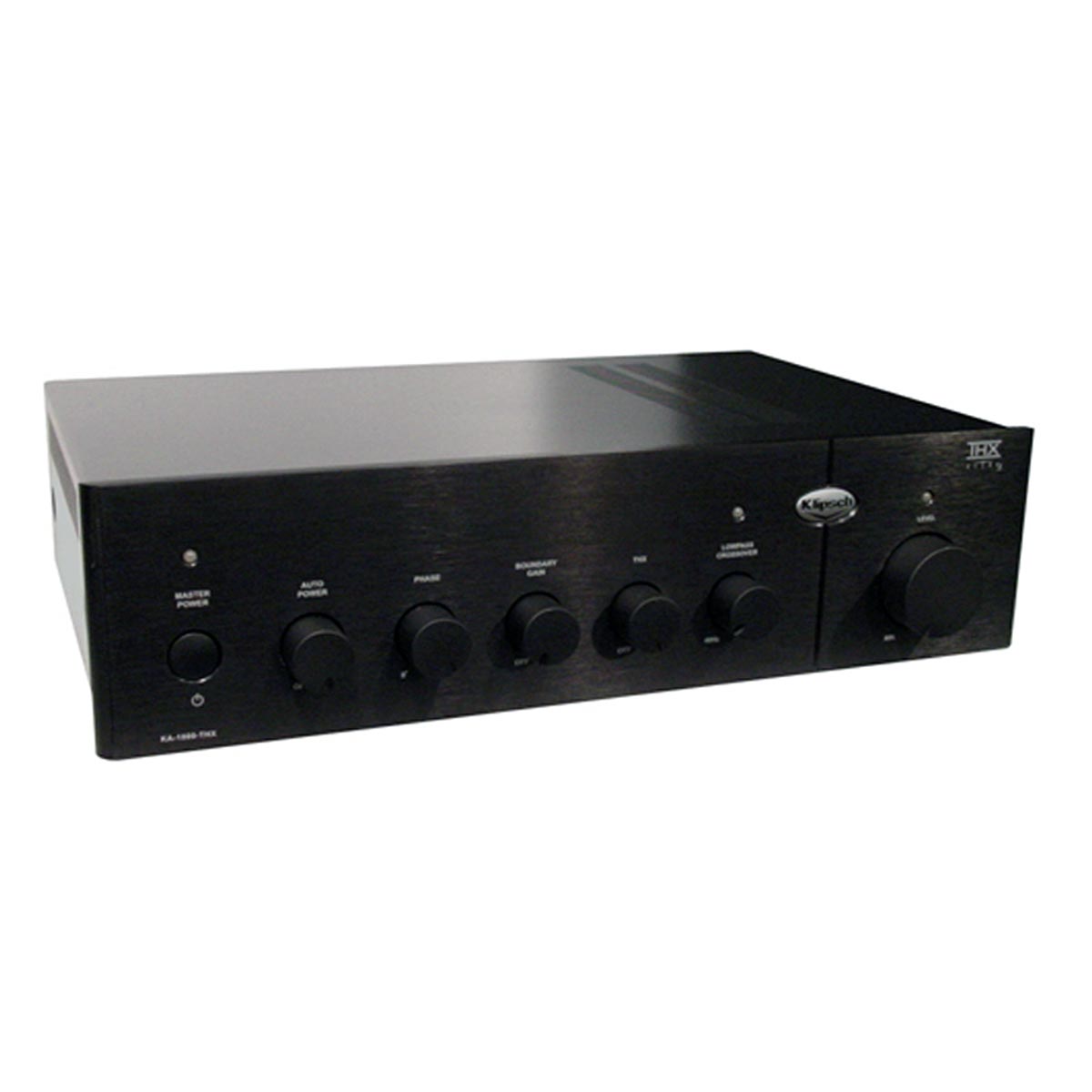

KA-1000-THX Amplifier
The KA-1000-THX subwoofer amplifier is the powerful driving force behind the Klipsch THX® Ultra2 system. This model offers rock-solid dependability under the most demanding conditions and allows listeners to experience all the power, detail and emotion of their favourite music and movies.
Key Features
- Delivers 1000-watts into a 4 ohm load
- Can support two high performance subwoofers

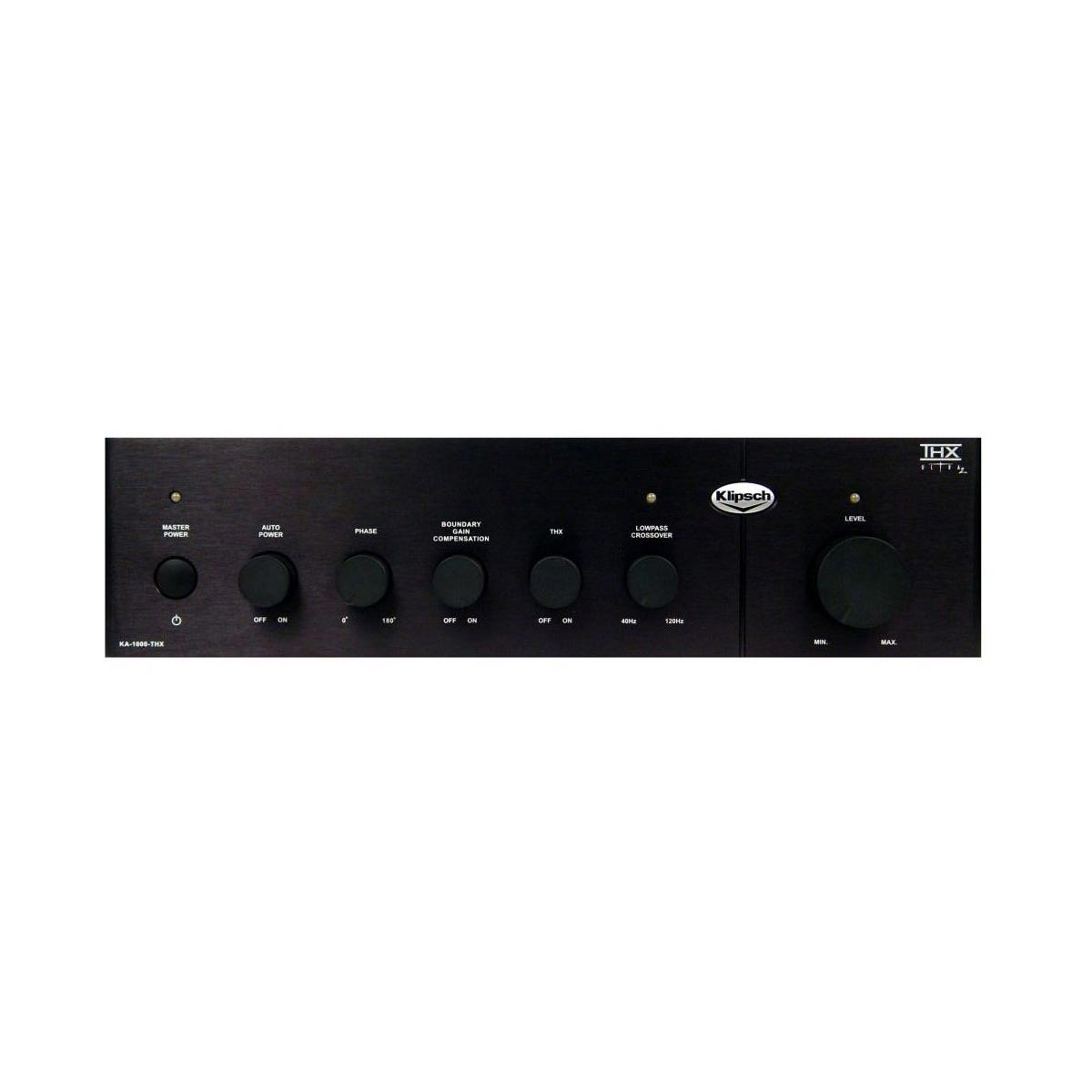

- Finished in black with a machined aluminium front panel and knobs
This full-featured Class D amplifier, which can be conveniently located near the rest of the installation's electronics, has a built-in, defeatable, low-pass crossover and level control, boundary-gain compensation switch, completely variable phase control, and an auto power function. This high-performance amplifier has a massive toroidal power supply that is capable of delivering 1000-watts into a 4 ohm load. It can also support two high performance subwoofers and has a left and right RCA pass-through.
Finished in black with a machined aluminium front panel and knobs, the KA-1000-THX uses professional style NL2 Speakon® outputs for the high current transfer of power to the subwoofer.
The KA-1000-THX delivers a combination of flexibility, reliability and sound quality that is unmatched.
| Specifications | |
| Frequency Response | 20 Hz - 20 kHz +/- 3 dB |
| Enclosure Type | Use Only with THX-1200-SW Subwoofer Enclosures (Either one or Two) |
| Amplifier | High-Efficiency Class D |
| Amplifier Power | FTC Rated Power: 500 W into 8 Ohms, 1000 W into 4 Ohms, 20 Hz - 1 kHz @ <1.5% THD / Dynamic Power: 2050 W into 8 Ohms, 3025 W into 4 Ohms @ 5% THD |
| Auto Power On | 2 Second On Delay, 15 Minute Off Delay |
| Inputs | 2 Gold-Plated RCA Phono Jacks |
| Outputs | 2 Gold-Plated RCA Phono Jacks (Unfiltered) / 2 Speakon® NL2 Jacks |
| Phase | Continuously Variable From 0 to 180 Degrees |
| Features | THX On/Off, Boundary Gain, Compensation On/Off |
| Height | 121 mm (4.75”) |
| Width | 445 mm (17.5”) |
| Depth | 311 mm (12.25”) |
| Weight | 12.3 kg (27 lb) |
| Finish | Black AnodiSed Aluminium |
| Voltage | 230 VAC 50/60 Hz |
