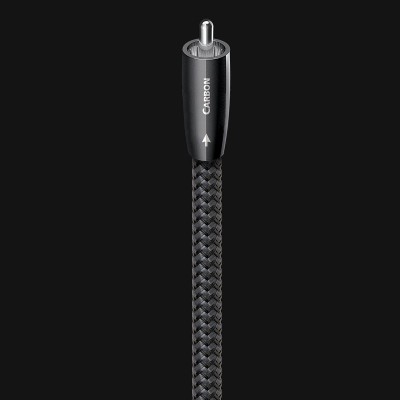

AudioQuest Carbon Digital Coaxial Cable

Carbon Coax

Digital Audio Cable

Carbon Coax features high-purity Solid 5% Silver conductors and a Carbon-Based 5-Layer Noise-Dissipation system for the most efficient dissipation of radio-frequency noise.

Key Features & Technology Explained

Solid Conductors

Solid conductors prevent strand-interaction, a major source of dynamic distortion in cables.

5% Silver Metal

5% Silver-Plating is applied to AudioQuest’s Long-Grain Copper (LGC) conductors to improve Noise-Dissipation.

Carbon-Based 5-Layer Noise-Dissipation

Alternating layers of metal and carbon-loaded synthetics "shield the shield," absorbing and reflecting most RF energy before it reaches the layer attached to ground.

Hard-Cell Foam Insulation

Hard-Cell Foam's high air content minimises energy absorption for clearer sound.

Direction Controlled

All conductors controlled for RF-noise directionality.

Solid 5% Silver Conductors

Solid conductors minimise the harmful effects of both electrical and magnetic strand-to-strand interaction. For digital cables, whose signals are of such high frequency that they travel almost exclusively on the surface of the conductor, increasingly thick layers of silver plating are applied to AudioQuest’s Long-Grain Copper (LGC) conductors to further improve Noise-Dissipation. Placing the superior metal on the outside of the conductor produces the greatest benefit on overall performance—a superbly cost-effective way to maximise a digital cable.

Carbon-Based 5-Layer Noise-Dissipation

It's easy to accomplish 100% shield coverage. Preventing captured Radio Frequency Interference (RFI) from modulating the equipment's ground reference requires AQ's Noise-Dissipation System (NDS). Traditional shield systems typically absorb and then drain noise/RF energy to component ground, modulating and distorting the critical "reference" ground plane, which in turn causes a distortion of the signal. NDS's alternating layers of metal and carbon-loaded synthetics "shield the shield," absorbing and reflecting most of this noise/RF energy before it reaches the layer attached to ground.

Hard-Cell Foam Insulation

Hard-Cell Foam (HCF) Insulation ensures critical signal-pair geometry. Any solid material adjacent to a conductor is actually part of an imperfect circuit. Wire insulation and circuit board materials all absorb energy. Some of this energy is stored and then released as distortion. Hard-Cell Foam Insulation is similar to the Foamed-PE used in our more affordable Bridges & Falls cables, and is nitrogen-injected to create air pockets. Because nitrogen (like air) does not absorb energy and therefore does not release any energy from or into the conductor, distortion is reduced. In addition, the stiffness of the material allows the cable's conductors to maintain a stable relationship along the cable's full length, producing a stable impedance character and further minimising distortion.

Cold-Welded, Hanging-Silver Directly Over Pure Purple Copper Terminations
