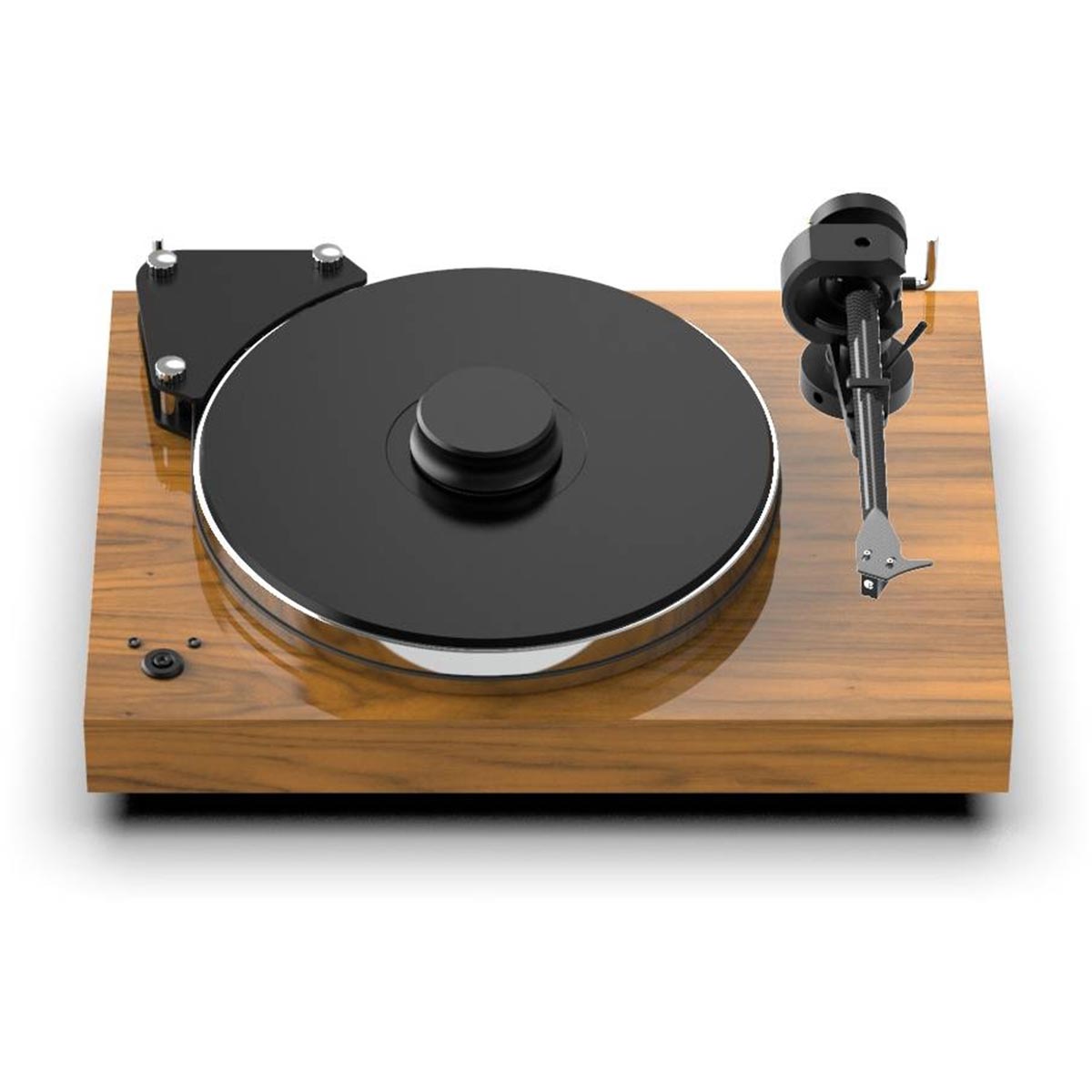

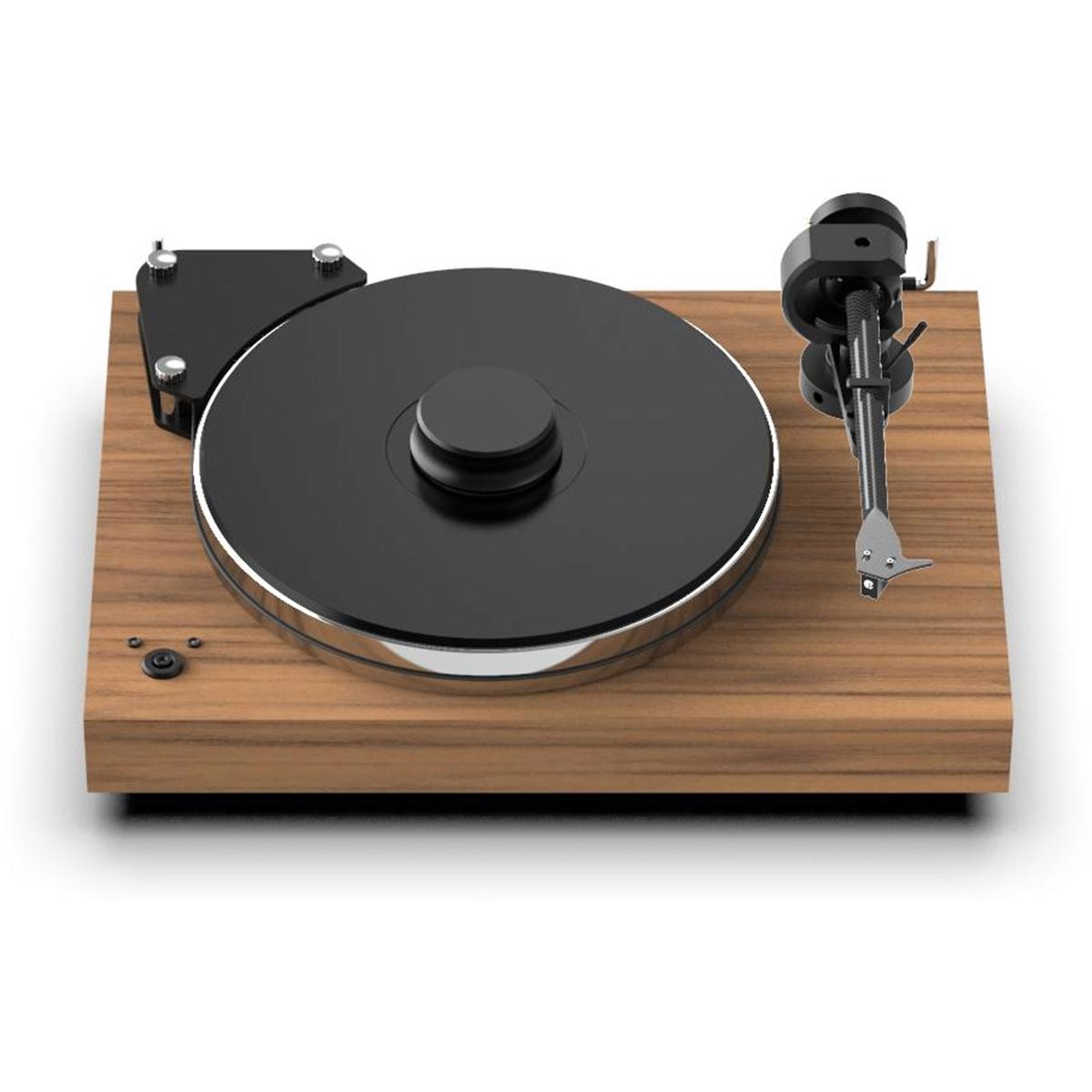

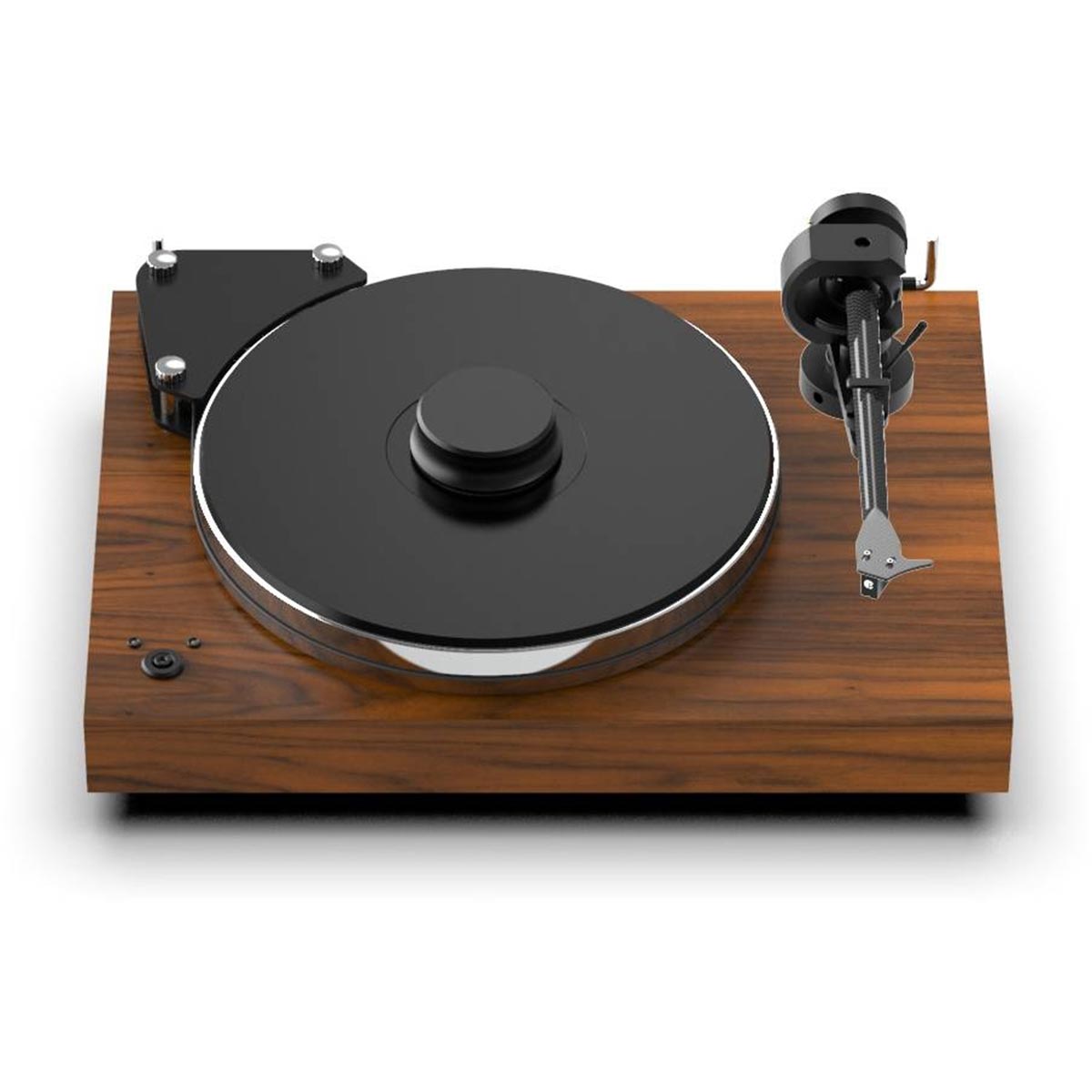

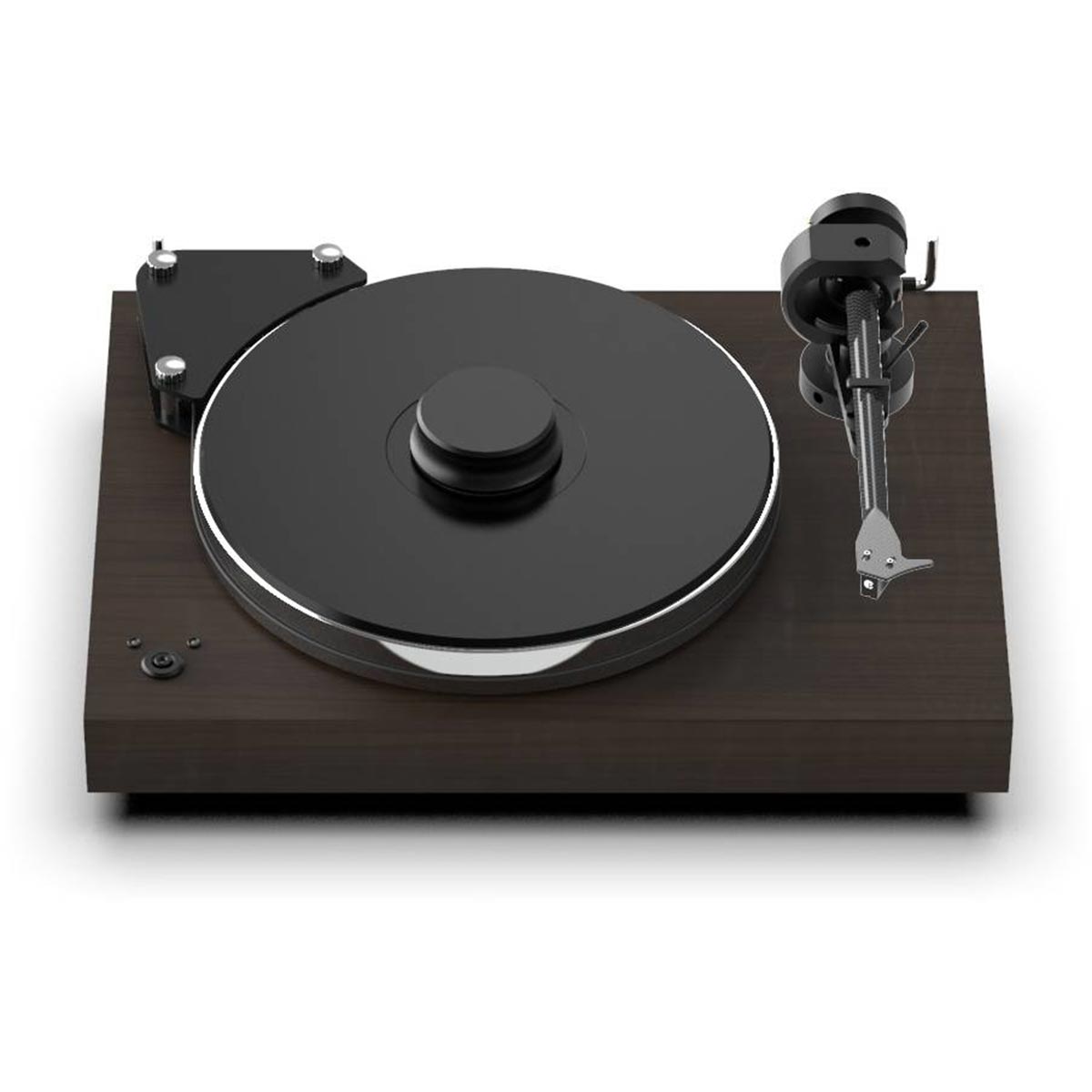

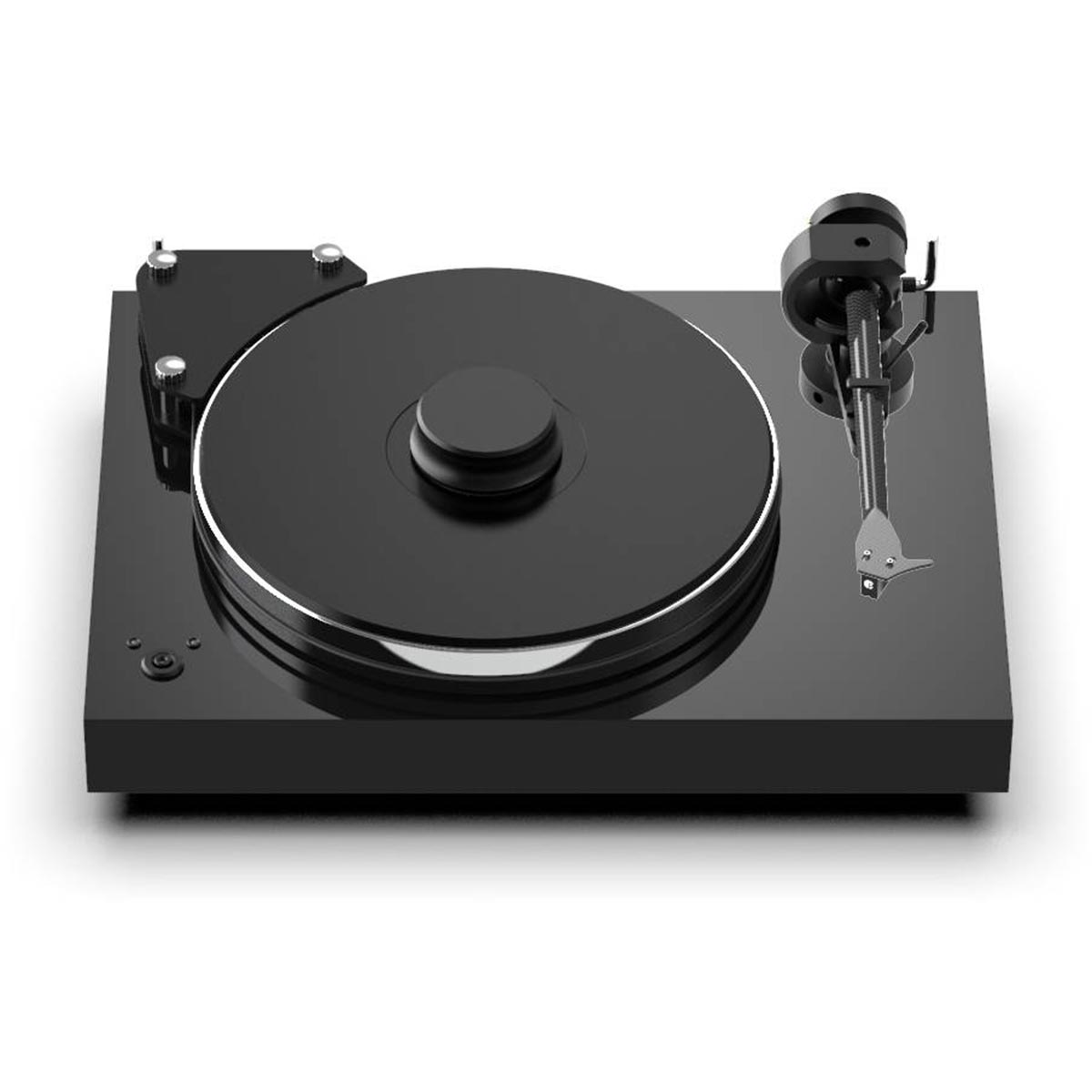

Xtension 9 Evolution
The Best In Class - Superlative Vinyl Performance

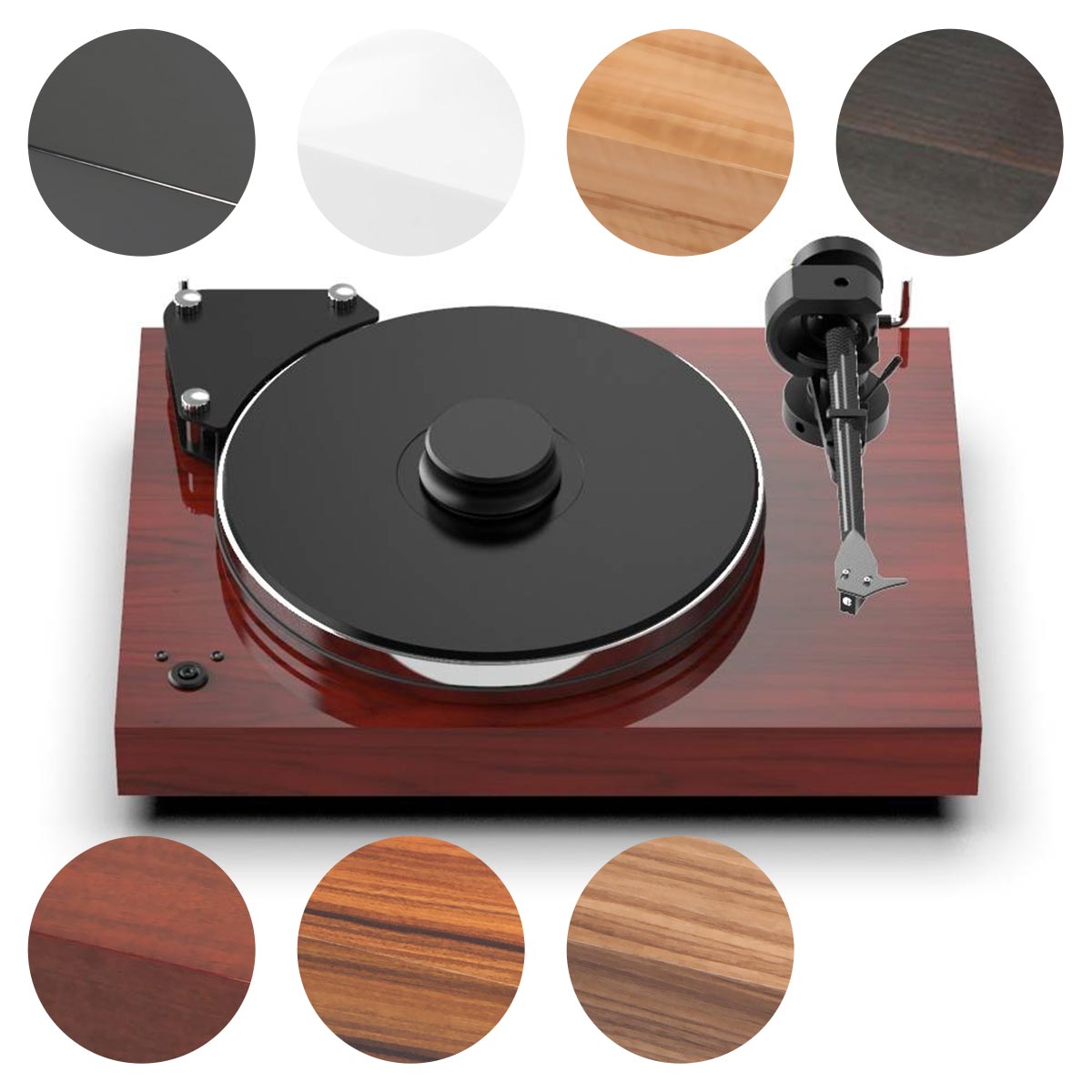

Xtension 9 Evolution incorporates all our turntable design experience in a slimline size. Choose from our various finish options, either luxury hand painted colours or real wood veneers.
Premium Features
Superior Platter
Alu, TPE & Vinyl.
Precision aluminium platter with TPE damping ring inside. The vinyl layer on top builds the best surface for your records.
Hi-Tech Feet
Magnetic decoupling.
Three powerful magnetic feet effectively decouple the turntable & let it float over the surface.
33 / 45 RPM
Precision motor control.
The precision DC-driven AC generator powers the motor for enhanced speed stability. Easily change speeds with the push of a button.
Silent Bearing
Special technology.
The heavyweight platter spins on an inverted ceramic ball bearing with a magnetic support to reduce bearing noise and resonance to an absolute minimum.
Magnetic Main Bearing
To ensure stable speeds a proper platter bearing is needed. The Xtension 9 Evolution uses a special technology.
The heavyweight platter spins on an inverted ceramic ball bearing with a magnetic support to reduce bearing noise and resonance to an absolute minimum. Which this solution we are able to relieve the main bearing and ensure that the platter runs ultra-silently.
High End Magnetic Suspension Feet
Many turntable manufacturers forget that the feet are one of the most important parts of a turntable. Therefore, we wanted the best possible solution for the premium Xtension 9 Evolution.
With its superlative magnetic feet, this heavy turntable literally floats over the surface. These powerful magnets effectively decouple the turntable from its below base.
Key Features
- Heavy 16 kg belt drive turntable
- Mass loaded magnetic floating subchassis
- Precision balanced sandwich platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record clamp
- MDF chassis filled with metal granulate with low levels of resonance and high mass
- Electronic speed control between 33 and 45 RPM
- 9cc Evolution tonearm made from carbon fibre
- Inverted tonearm bearings (ABEC 7 quality)
| Specifications | |
| Speed | 33 / 45 RPM (Electronic Speed Change) |
| Drive Principle | Belt Drive |
| Platter Weight / Diameter | 5.4 kg / 300 mm |
| Speed Variance | ± 0.09% |
| Wow and Flutter | ± 0.1% |
| Signal to Noise | 73 dB |
| Tonearm | 9" One-Piece Carbon-Fibre Tonearm |
| Effective Arm Length / Overhang | 230 mm / 18 mm |
| Effective Tonearm Mass | 8.5 g |
| Tracking Force Range | 0 - 25 mN |
| Cartridge Weight Range | 4 - 14 g |
| External Power Supply | 220-240 V / 50 Hz / 15 V / 1600 mA DC |
| Power Consumption | 4 W (Max.) / < 1 W Standby |
| Included Accessories | Record Puck, Connect It E 5P to RCA Phono Cable, Dust Cover, Power Supply |
| Dimensions (W x H x D) | 465 x 185 x 350 mm (Lid Closed) |
| Weight | 16 kg |
