CSA70 Integrated Amplifier

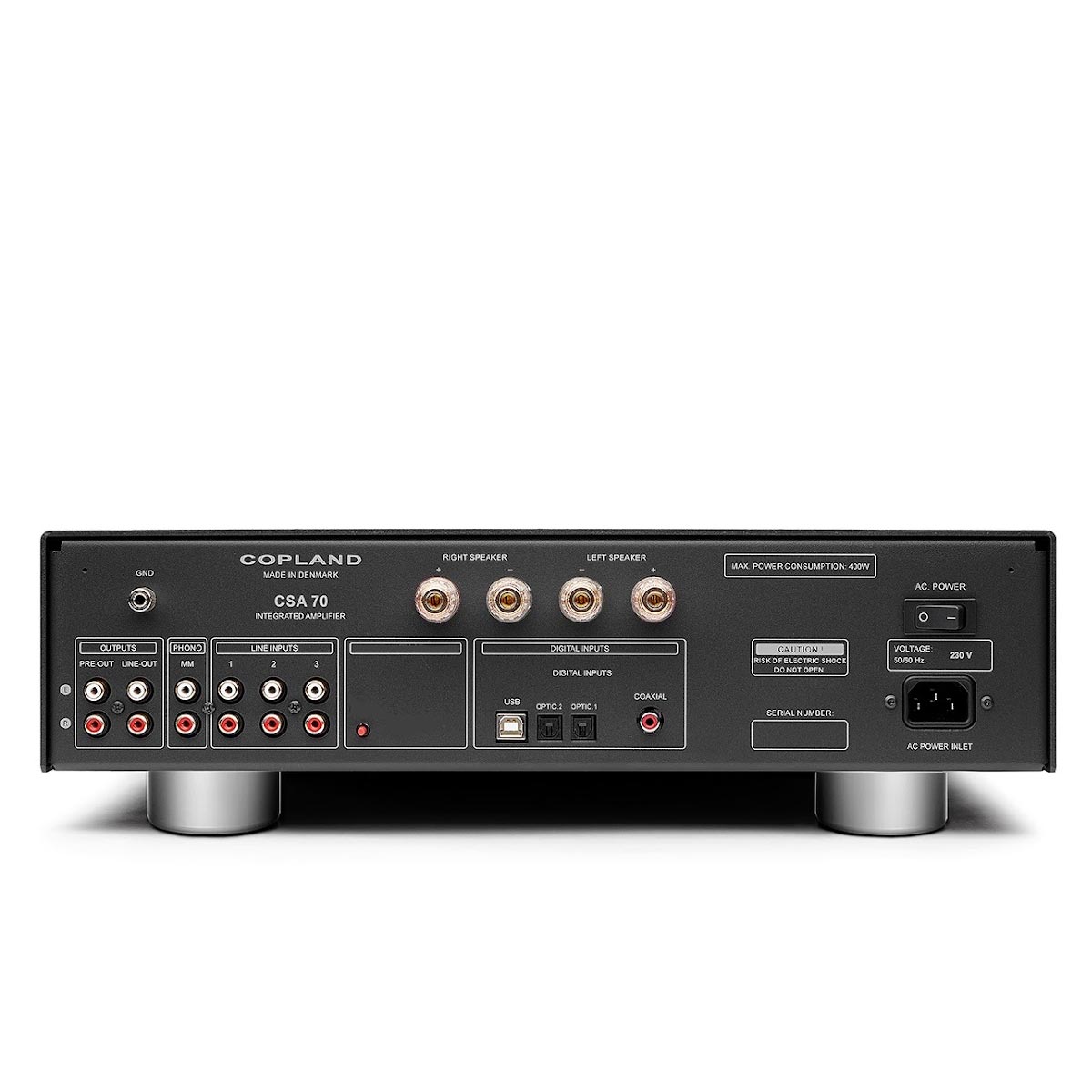

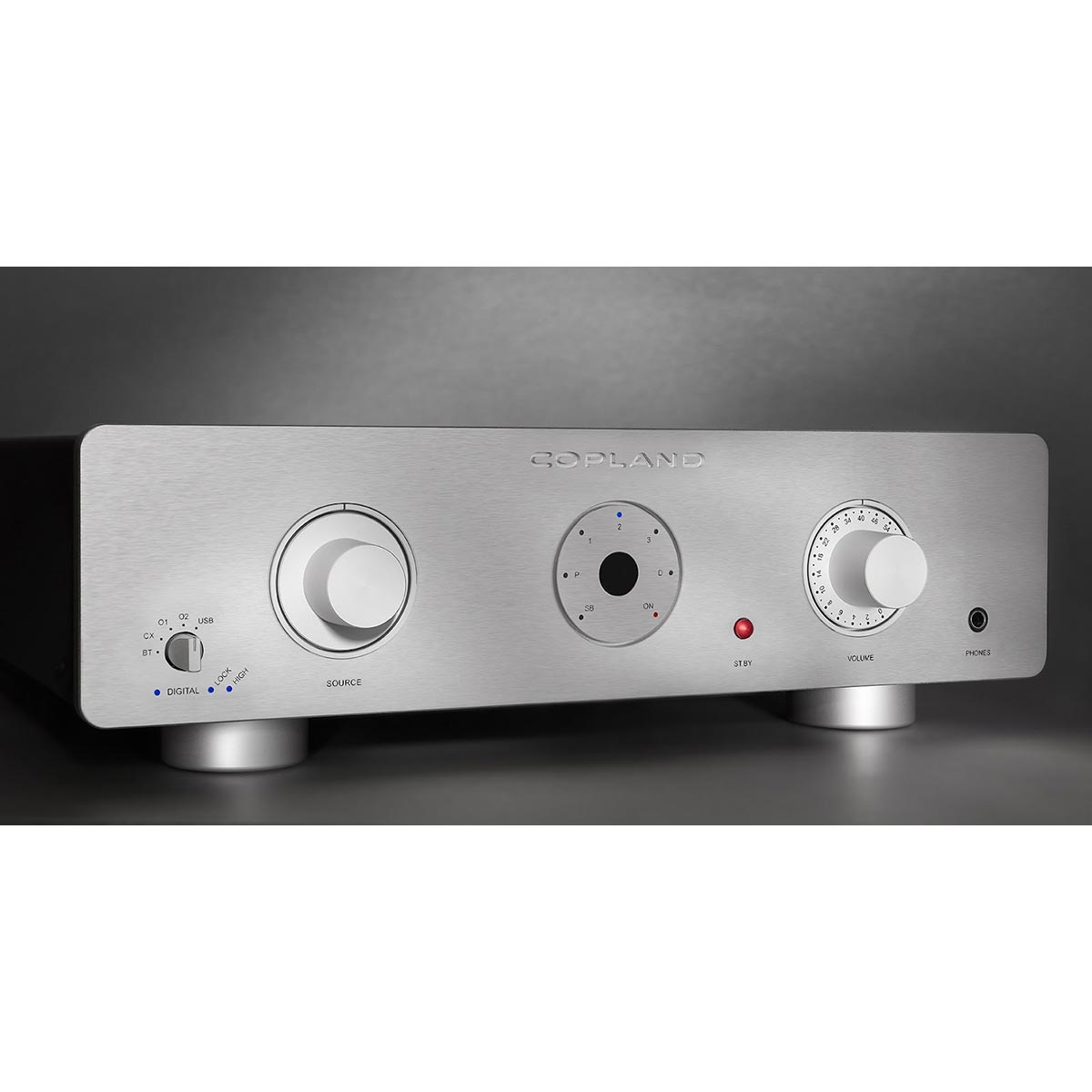

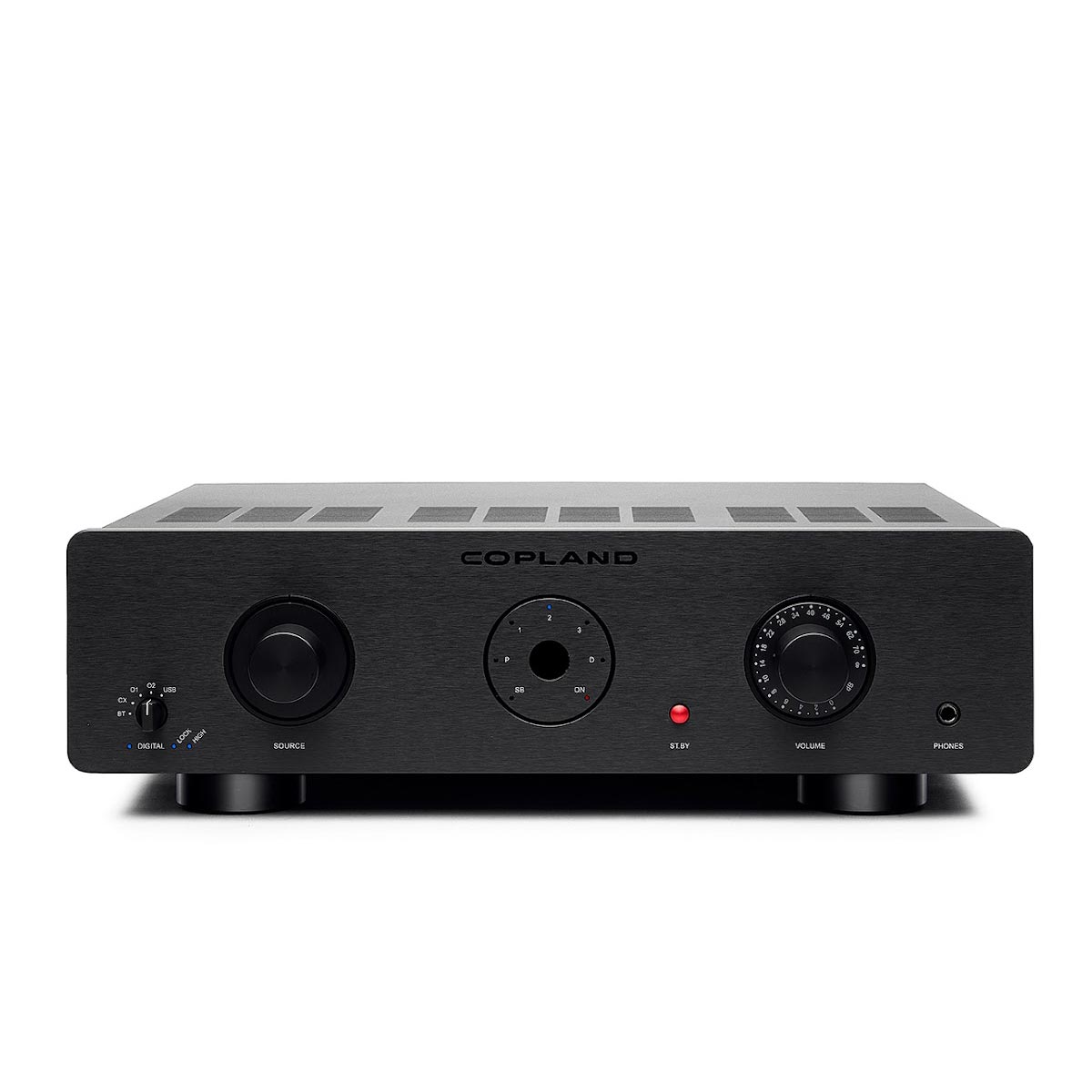

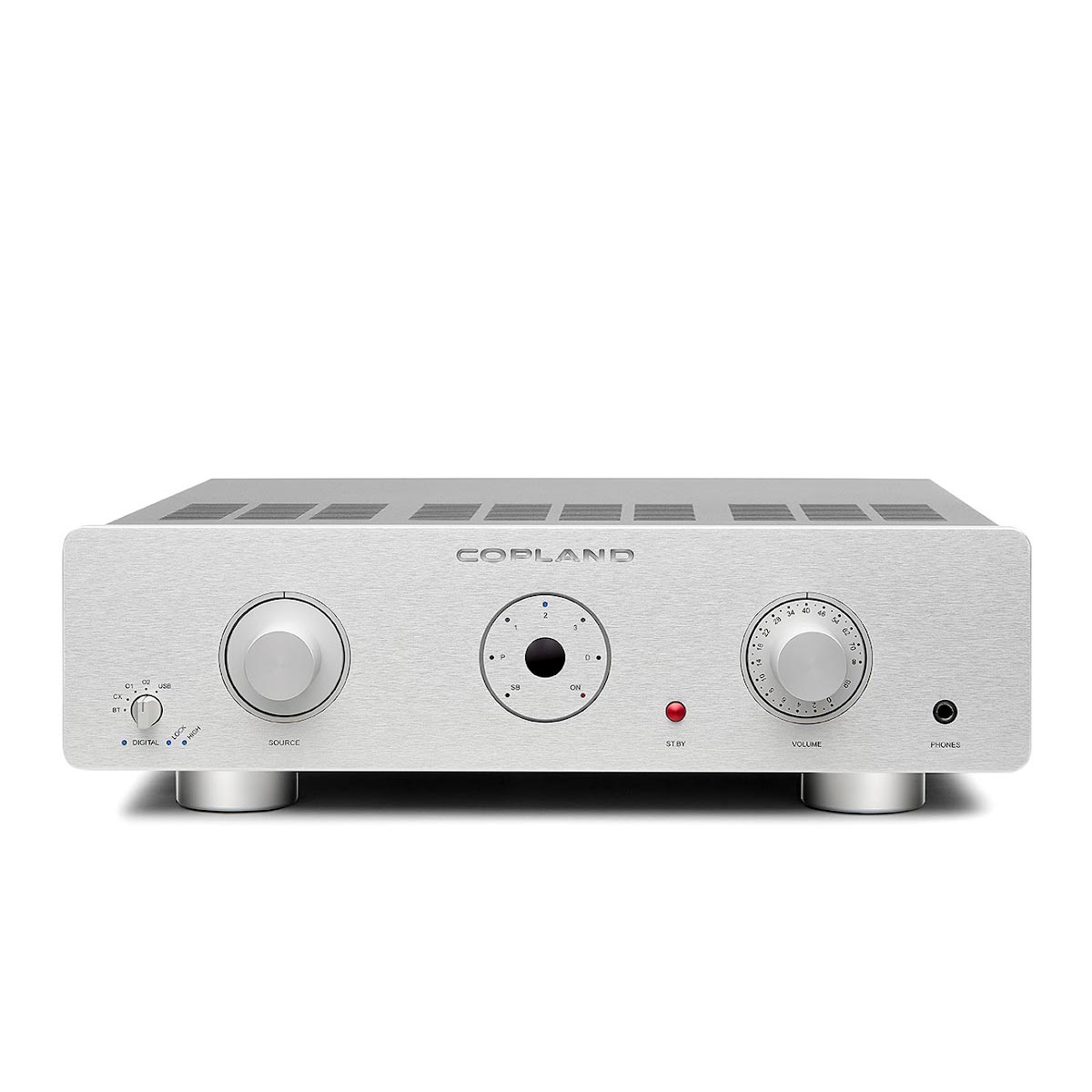

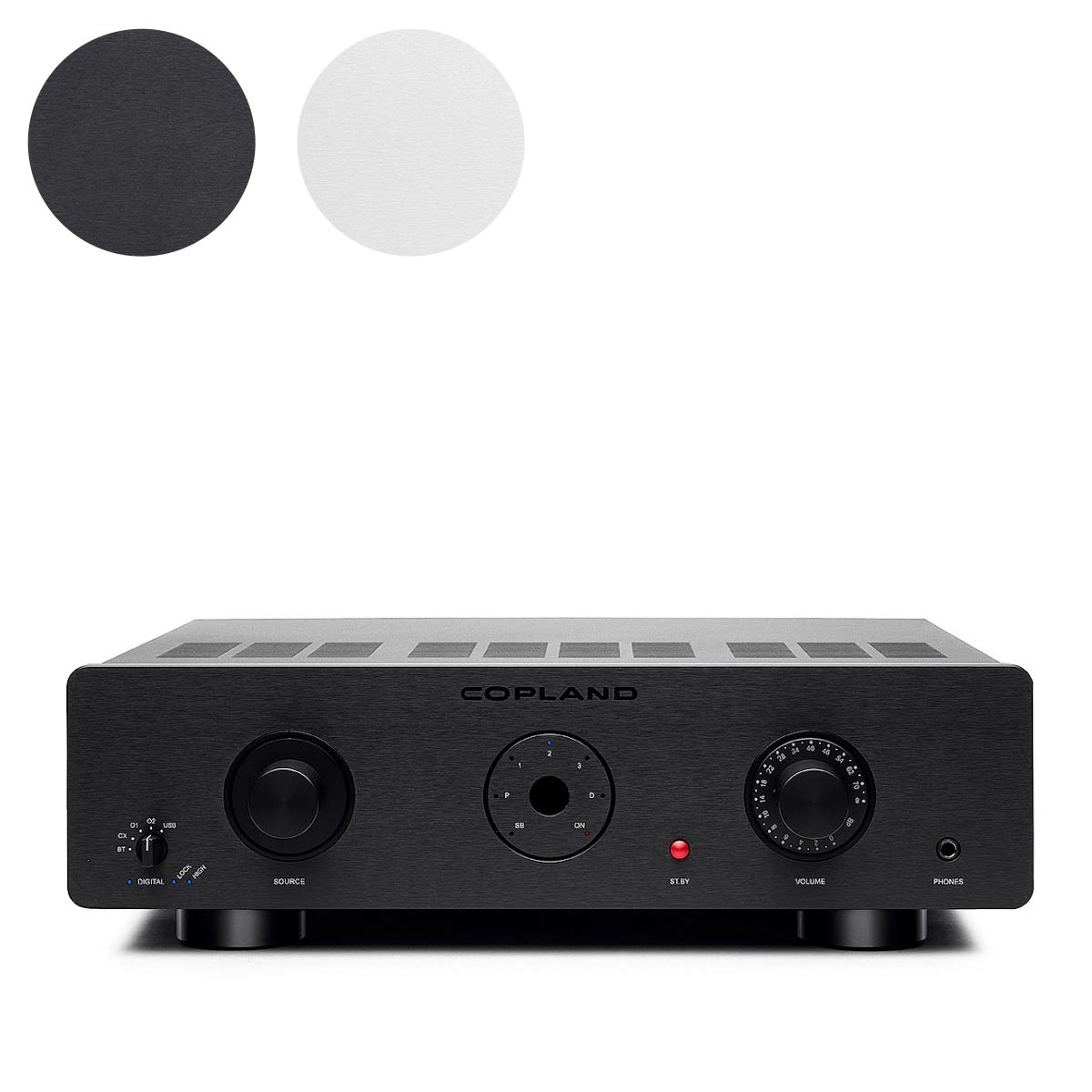

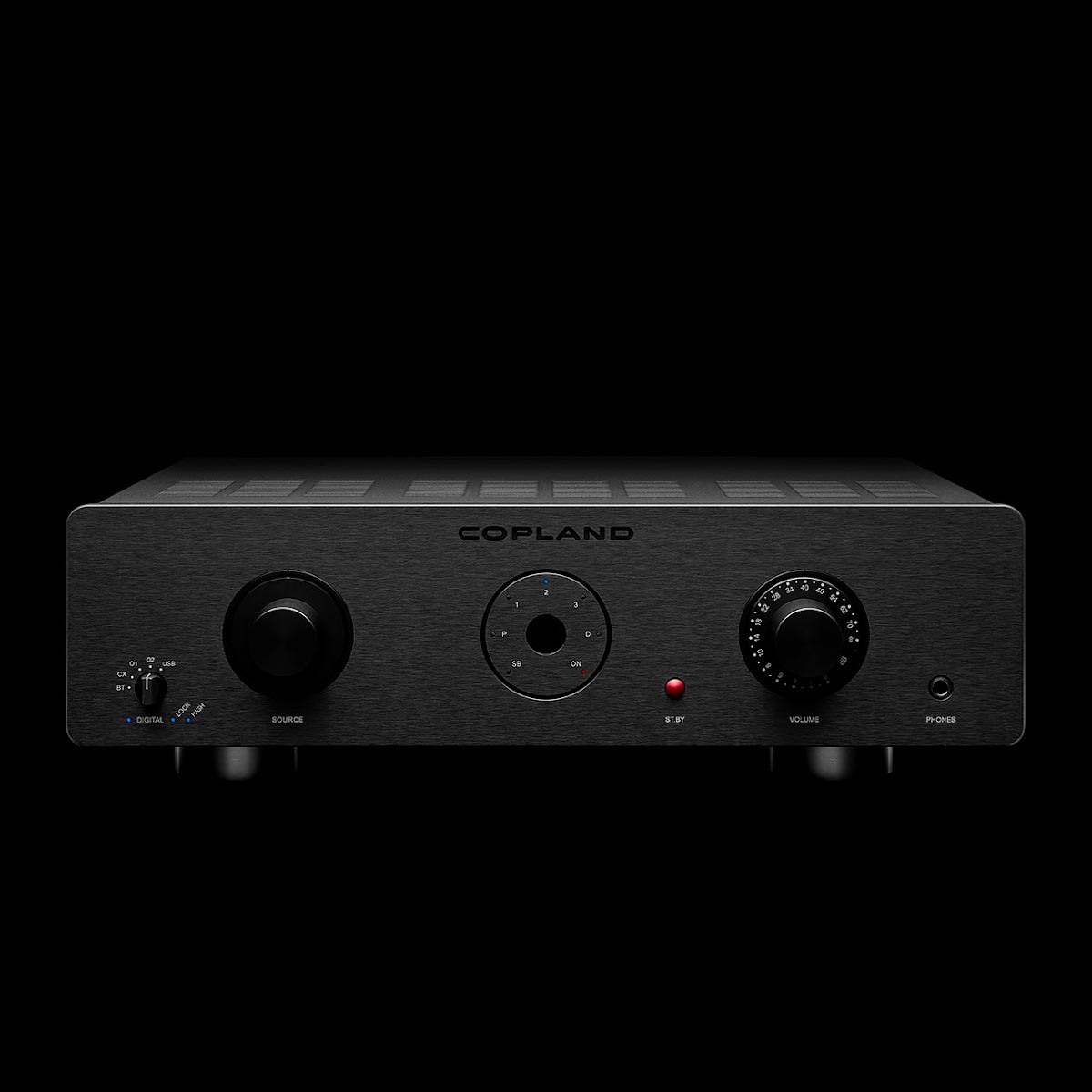

Created for the dedicated music lover, the CSA70 is designed to provide exceptional audio performance that belies its power rating and price. The CSA70 provides four digital inputs, three analogue inputs, line out function, as well as pre-out terminal, front facing 6.3mm headphone output, and a 70 Watts per channel power amplifier that will surprise users who thought their speakers were power hungry. For the vinyl enthusiast we have included an excellent phono pre amplifier.
Contrary to its bigger brothers, CSA100/CSA150 the CSA70 does not employ tubes in the line stage. The CSA70 preamplifier section is a solid stage architecture with a vanishingly low distortion. The CSA70 boasts the same power amplifier technology as the CSA100/CSA150 with a feedback structure inherently faster than conventional amplifiers and a wide large-signal frequency response. The amplifier is ruggedly constructed and designed to deal with the most awkward of dynamic loads that may be presented by the loudspeakers, and this contributes to the amplifiers excellent transient handling capability.
Path lengths throughout the CSA70 amplifiers are minimized by keeping the entire electric audio architecture on a single PCB-board, minimizing susceptibility to RF interference and other extraneous noise pickups.
The CSA70 employs a precision audio-grade motorized volume control. Contrary to most digital volume attenuators, it needs no additional electronics in the signal path.
The amplifier is protected against several fault conditions that could be dangerous to either amplifier or speakers, including DC offset, overcurrent conditions and thermal overload, increasing its immunity from outside abuse.
| Specifications | |
| Output Power | 2 x 70 Watts into 8 Ω Load, 2 x 130 Watts into 4 Ω Load |
| Minimum Load | 2 Ω |
| Analogue Inputs | 1 x Phono / MM (RCA), 3 x Unbalanced (RCA) |
| Digital Inputs | 1 x Coaxial S/PDIF, 2 x Optical S/PDIF, 1 x USB, 1 x aptX HD Bluetooth (Optional Extra) |
| Line Outputs | 1 x Unbalanced (RCA), 1 x Pre-Out / Unbalanced Variable (RCA) |
| Line Input Impedance | 50 kΩ |
| Phono Input Impedance | 47 kΩ (MM) |
| Phono Input Capacitance | 200 pF |
| Line Inputs Sensitivity | 200 mV |
| Phono Sensitivity | 2.6 mV |
| Frequency Response | 10 Hz – 200 kHz (-3 dB) |
| THD | <0.01% |
| Signal / Noise (IHF-A) | >90 dB |
| Phase | Non-Inverting |
| Headphone Amplifier Gain | 22 dB @ 100 Ω Load Impedance |
| Headphone Amplifier Output Impedance | 40 Ω |
| Headphone Amplifier THD | <0.01% |
| Headphone Amplifier Frequency Response | 10 Hz – 150 kHz (-3 dB) |
| Power Consumption | Max. 400 W |
| Dimensions (W x H x D) | 435 x 135 x 370 mm |
| Shipping Weight | 13 kg |
