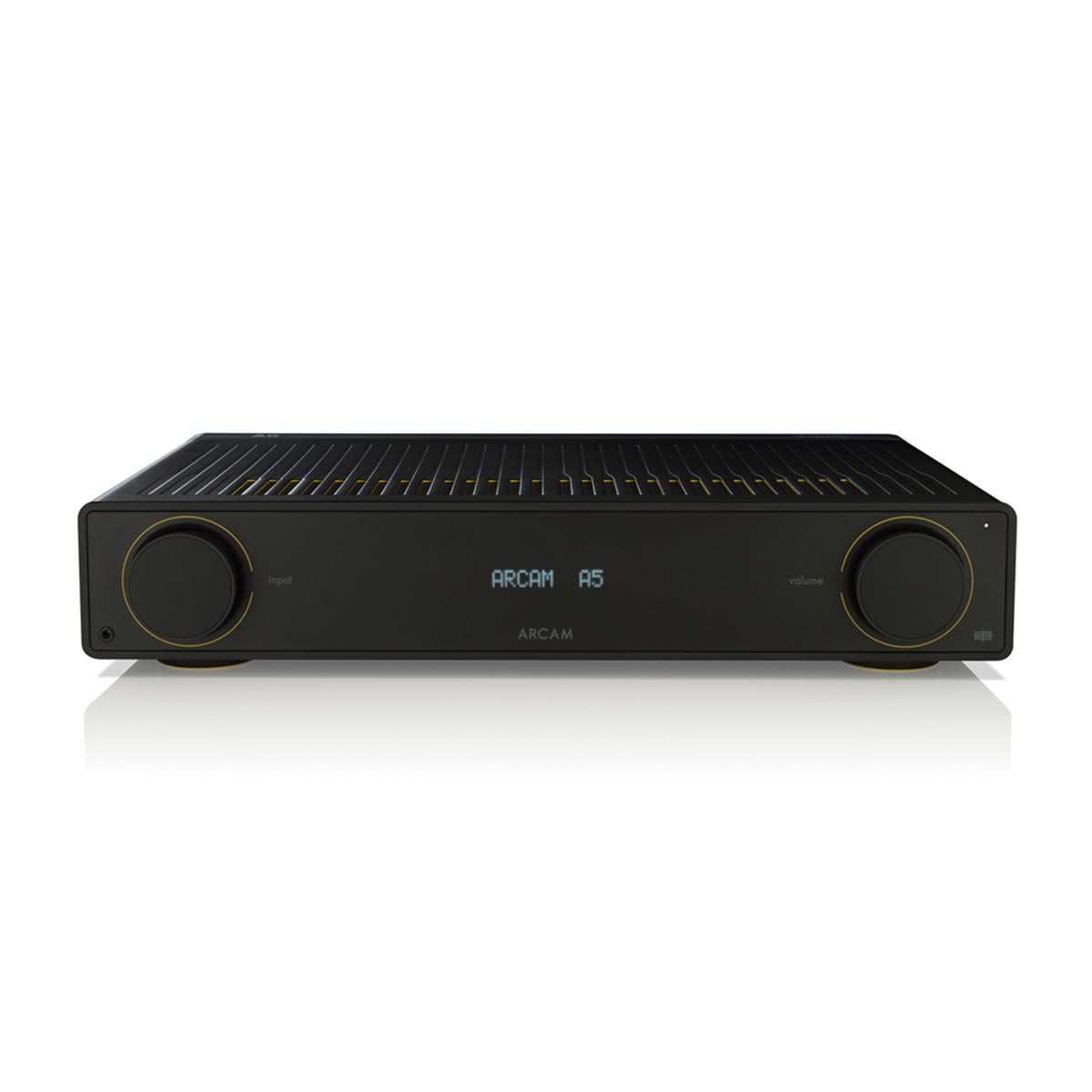

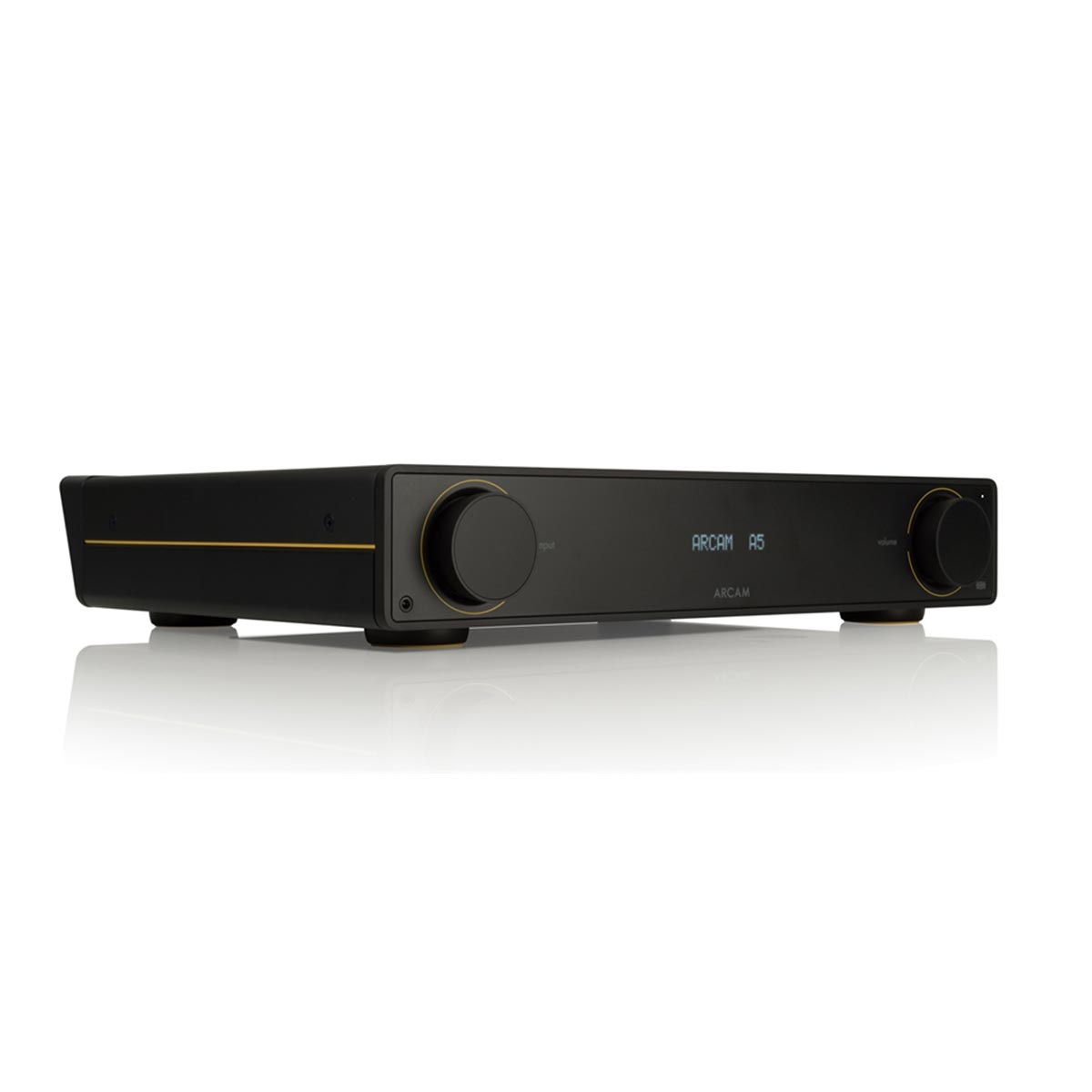

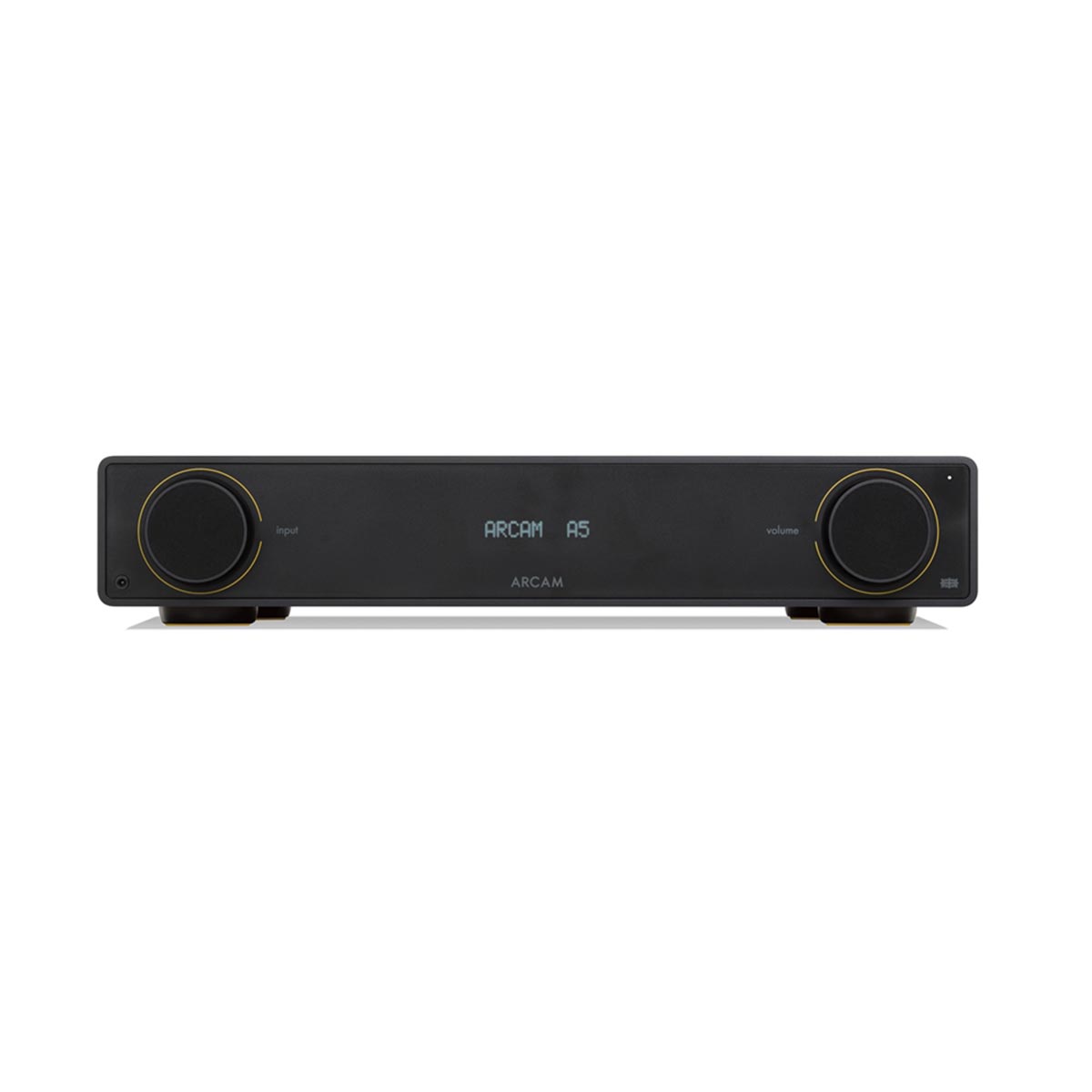

A5 Integrated Amplifier
Quality + Connectivity = Accessible Hi-Fi
The ARCAM A5 is for those intimate listening experiences with your favourite music.
The "A" in ARCAM stands for Amplification - this is our core competence. The A5 is the latest in more than 45 years of amplifier design and manufacture, going back to our first product in 1976 - the A&R Cambridge A60 amplifier. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.
So you can play music straight out of the box, the ARCAM A5 includes a Bluetooth solution with Qualcomm AptX Adaptive technology. This provides up to 24-bit HD audio for the best sound quality from your phone or tablet, no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.
Hi-Res audio is included with high resolution digital audio inputs included.
Like any ARCAM integrated amplifier, we pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.
Key Features
- ARCAM Class AB amplification - Provides brilliant musicality
- 50W per channel (8Ω) - Powers loudspeakers with ease
- Bluetooth with aptX™ Adaptive Technology - For the best sound with the most convenience
- Specially selected components and materials - To deliver on sound quality
- Wired or Wireless Headphones - Connect your headphones for quiet listening with, or without wires
- All new Radia design - Purposeful yet playful
- MM phono stage - Ready for Turntables
- Hi-Res Digital Audio Inputs
- Plastic Free Packaging - For easy disposal of natural materials
| Continuous Power Output (0.5% THD), Per Channel | |
| 2 Channels Driven, 20 Hz - 20 kHz, 8 Ω | 50 W |
| 2 Channels Driven, 1 kHz, 4 Ω | 75 W |
| Harmonic Distortion, 80% Power, 8 Ω at 1 kHz | 0.003% |
| Analogue Inputs | |
| Number of Inputs | 3 (RCA Pairs) |
| Signal/Noise Ratio (A-Wtd, Ref. 50 W, 1 V Input) | 106 dB |
| Frequency Response | 20 Hz — 20 kHz ± 0.2 dB |
| Phono (MM) Input | |
| Input Impedance | 47 kΩ + 100 pF |
| Frequency Response (Ref. RIAA Curve) | 20 Hz — 20 kHz ± 1 dB |
| Digital Inputs | |
| Supported Sample Rates - Coaxial (RCA) | 192, 176.4, 96, 88.2, 48, 44.1 kHz |
| Supported Sample Rates - Optical (Toslink) | 192, 176.4, 96, 88.2, 48, 44.1 kHz |
| Bit Depths | 24, 16 Bit |
| Frequency Response (Filter 1) | 20 Hz — 20 kHz ± 0.2 dB |
| Signal/Noise Ratio (A-Wtd, Ref. 50 W, 0 dBFS) | 109 dB |
| Headphone Output | |
| Maximum Output Level (RMS) into 32 Ω / 300 Ω | 2.5 V / 5 V |
| Load Range | 16 Ω - 2 kΩ |
| General | |
| Mains Voltage | 220–240 V, 50–60 Hz |
| Power Consumption (Maximum) | 350 W |
| Power Consumption (Standby) | <0.5 W |
| Dimensions W x D (Including Speaker Terminals) x H (Including feet) | 431 x 344 x 83 mm |
| Weight (Net) | 8 kg |
| Weight (Packed) | 11 kg |
| Supplied Accessories | Mains Lead(s), Remote Control with 2 x AAA Batteries, Quick Start Guide, Important Safety Instructions |
