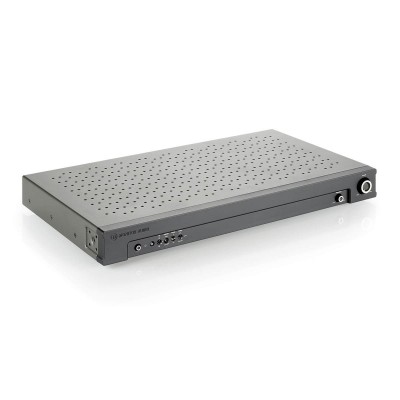

IWA-250
The IWA-250 switch mode amplifier is a slim, powerful dedicated design in a heavy-duty 1U rack mount case. Delivering up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10's to provide higher power levels for larger rooms or to meet customer demands.
Key Features
- Rigid, high quality steel case
- Switch mode power supply
- Class D power amplifier delivering up to 250 watts into 4 ohms (dual IWS-10 drivers)
- High efficiency design resulting in cool running – low thermal output
- DSP controlled with advanced limiters
- <0.5watt standby power consumption (ErP certified)
- DC short circuit protection, over-current and thermal protection
| Specifications | |
| System Format | Active Subwoofer Amplifier |
| Lower Frequency Limit | 25 Hz |
| Upper Frequency Limit | Variable 40 – 120 Hz @ 24 dB/Octave |
| Amplifier Output | 250 W @ >1% THD+N |
| Drive Unit Complement | 4 – 8 Ohms |
| Amplifier Classification | Class D Amplifier with Switch Mode Power Supply (SMPSU) |
| Cabinet Support | For Use When Using the Dedicated Back Box |
| EQ | Music / Movie / Impact |
| Phase Control | 0 & 180 Degrees |
| Auto Sensing | Line Level >3.5 mV |
| Input Level Requirements | Standby After Approximately 15 Minutes if no Signal Sensed |
| Input Impedance | >20K Ohms |
| Mains Input Voltage | AC 110 - 120 V ~ 50/60 Hz AC 220 - 240 V ~ 50/60 Hz (Factory Region Preset) |
| Dimensions (H x W x D) | 43.7 x 432 x 263 mm (1 3/4 x 17 x 10 3/8") |
| Connection | LFE In (Stereo RCA and Balanced), 12 V Trigger In (3.5 mm Mono Mini-Jack), Left and Right Speaker Output |
| Trigger Input | 5 - 12 V via 3.5 mm Mono Mini-Jack Socket |
| Power Consumption | Standby: <0.5 W (ErP Approved) / Typical Idle: <10 W / Max Rated: 200 W |
| Weight (Unpacked) | 4 kg (8 lb 12 oz) |
| Sold As | Single Unit |
