S5 Stereo Amplifier
The Michi S5 Stereo Power Amplifier is a best in class linear amplifier delivering 500 watts of Class AB power in 8 ohm and over 800 watts to 4 ohm loads. The dual monoblock architecture is equipped with twin, custom engineered oversized, in-house manufactured 2,200 Volt Amp toroidal transformers in individual epoxy filled enclosures eliminating noise and vibration. A bank of 4 British patented bulk storage capacitors totaling 188,000 uF delivers exceptional bass energy while maintaining precise detail and control to 32 high current output transistors ensuring effortless accuracy of the timing and rhythm under even the most difficult of load conditions.
Audio performance must be engineered from product concept through production. This is evidenced in the S5 as the result of countless hours of engineering design reviews, critical component evaluation and sonic tuning. Accuracy at its best while delivering on a promise to ensure the audio provides entertainment deserving of the Michi logo.

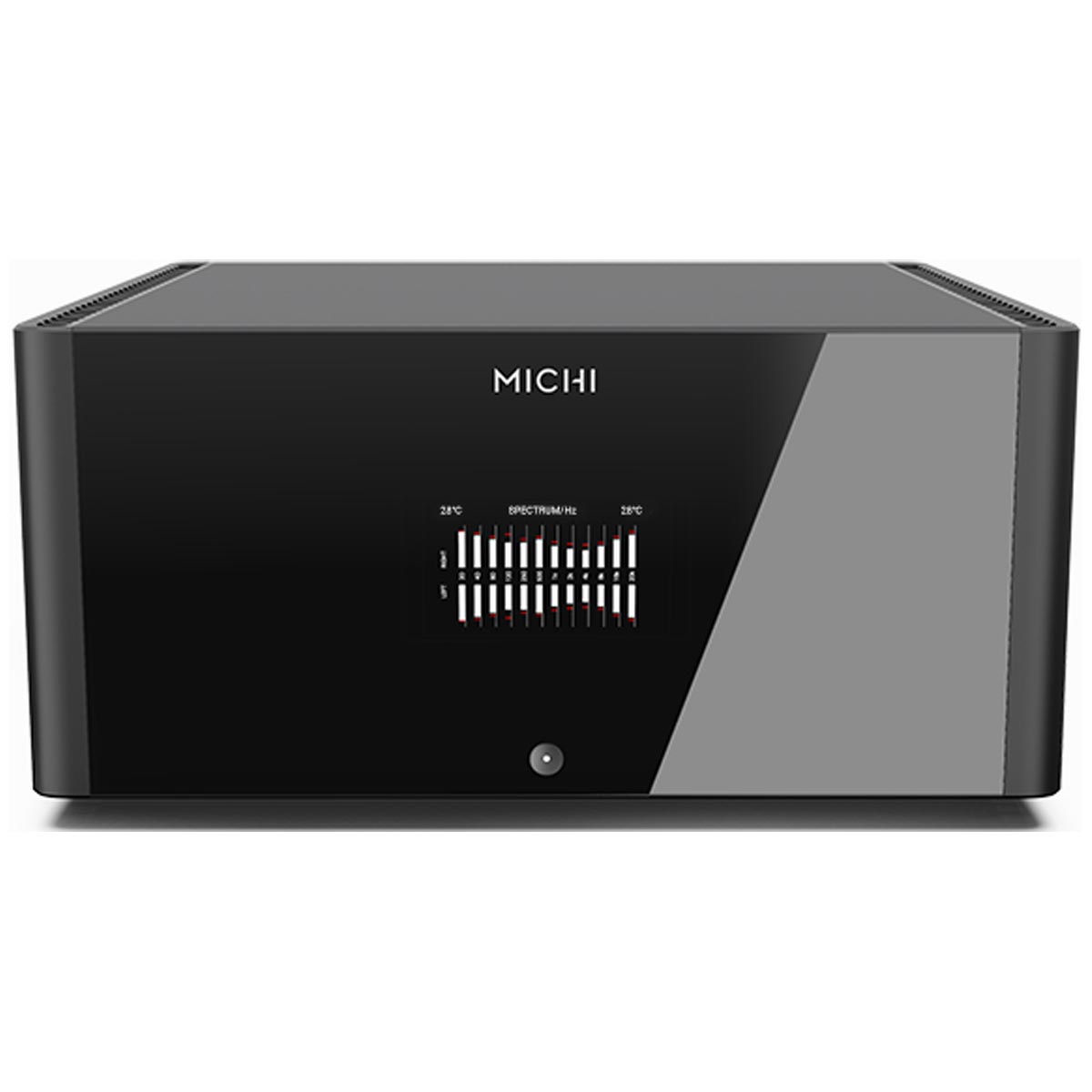

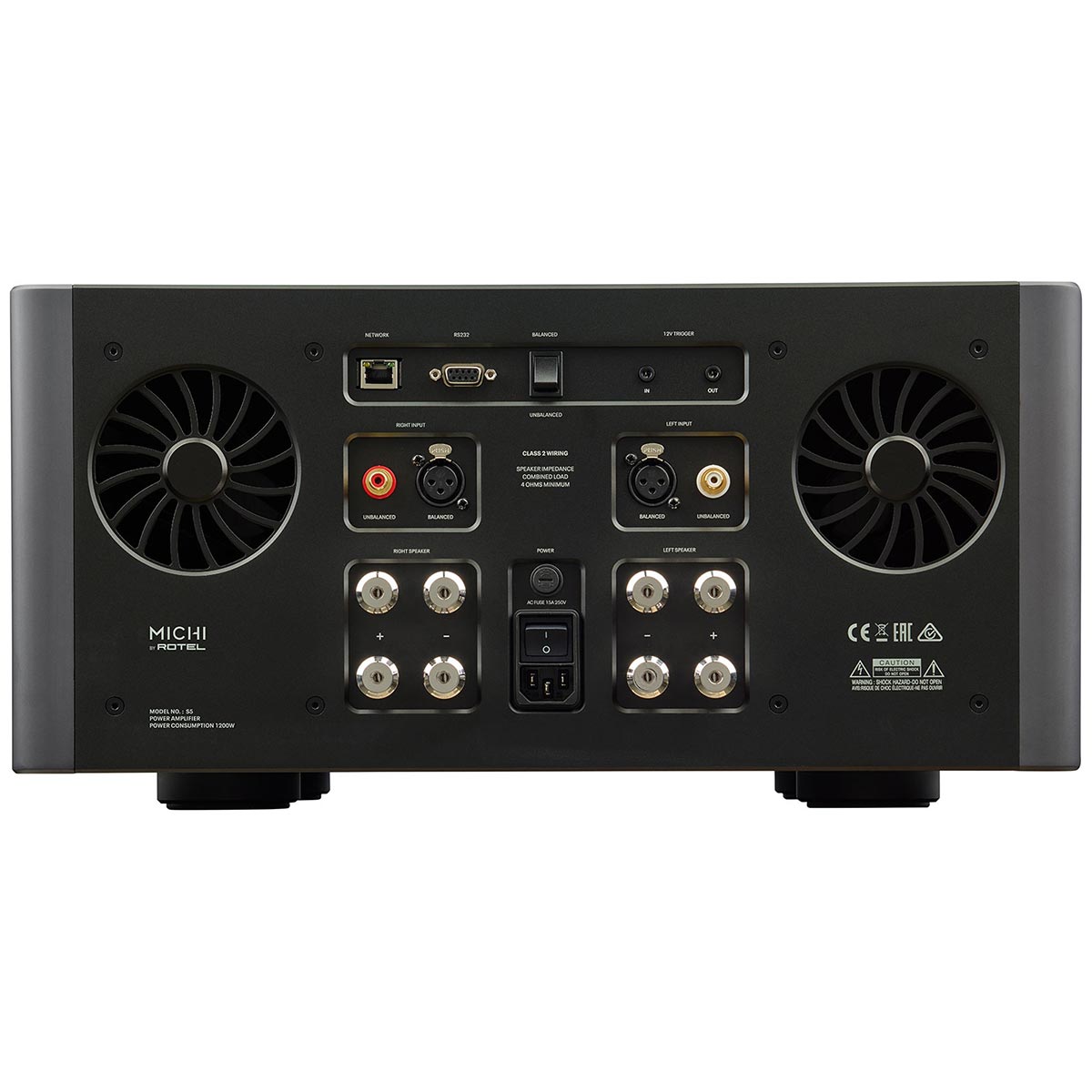

An elegant industrial design puts the finishing touch on this amplifier with a font panel color display and Michi exclusive custom high current 5-way rhodium plated binding posts. The included remote control provides easy setup and operation with RS232 and Ethernet connections supporting all popular control systems.
Key Features
- 2 x 500 Watts of robust power
- Class AB amplifier Design
- Patented British bulk storage capacitors
- Massive power supply using dual toroidal transformers
- Balanced XLR inputs
Engineered with Care
| Amplification | |
| Amplifier Class | AB |
| Continuous Power Output | 500 W/Ch (8 Ω), 800 W/Ch (4 Ω) |
| Total Harmonic Distortion (THD) | <0.008% |
| Frequency Response | 20 Hz - 20 kHz (+0 dB, -0.15 dB), 10 Hz - 100 kHz (+0 dB, -0.4 dB) |
| S/N Ratio (IHF "A" Weighted) | 120 dB |
| Gain | Unbalanced (RCA): 28 dB, Balanced (XLR): 24 dB |
| Intermodulation Distortion (60 Hz:7 kHz, 4:1) | <0.03% |
| Damping Factor | 350 |
| Speaker Impedance | 4Ω Minimum |
| Input Sensitivity | Unbalanced (RCA): 1.5 V, Balanced (XLR): 2.5 V |
| Input Impedance | Unbalanced (RCA): 12 kΩ, Balanced (XLR): 100 kΩ |
| Dimensions & Weight | |
| Dimensions (W x H x D) | 485 x 238 x 465 mm (19" x 9.375" x 18.25") |
| Front Panel Height | 220 mm (8.625") |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 1200 W |
| Standby Power Consumption | Normal: <0.5 W, Network Wakeup: <2 W |
| Net Weight | 59.9 kg (132.1 lb) |
| BTU Rating (4 Ω, 1/8th Power) | 3450 BTU/h |
