High End Phono Preamplifier
Reference Class Phono Preamplifier with Unique Impedance Control
This ultra low noise and distortion preamplifier is made for the audio connoisseur and offers not only breathtaking performance but is capable to adapt to virtually any phono cartridge through variable impedance control. Impedance adjustment can be done during playback! Due to use of best parts, like SSM2019 from Analog Devices as input stages and Linear Technology LT1010 as high current buffer stage, Phono Box RS delivers ultra low levels of distortion and noise. Its very low output impedance makes it insensitive to selection of interconnect cables and lengths.
Fully passive RIAA and DECCA equalisation is selectable. Phono Box RS offers fully balanced circuitry and both XLR and RCA inputs and outputs. All in all vinyl playback will never have sounded as clear, detailed and smooth, than with this superlative phono stage!
Key Features
- MM & MC capable
- True dual mono design

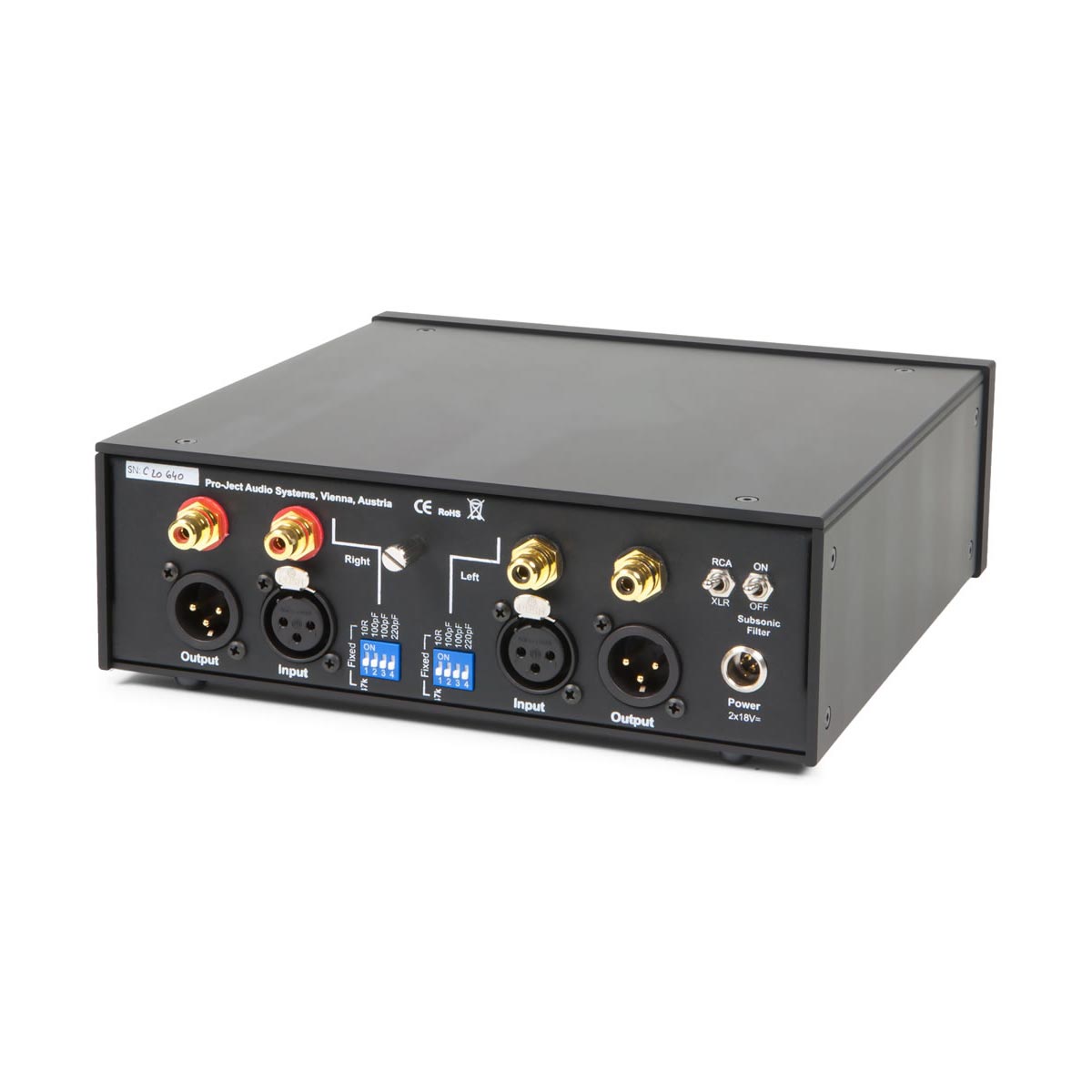

- Balanced XLR & unbalanced RCA In & outputs
- Fully passive RIAA & DECCA equalisation
- Unique continuously variable input impedance loading, matches every cartridge (adjustment even while playing)
- RCA & XLR In & out
- Superior low noise / low distortion
- Classy & elegant dip switches
- DC power supply (< 1 watt standby power)
- Metal casing protects against vibration and interference
| Specifications | |
| Input Impedance | Fixed 10 Ohms or 47 kΩ, Variable 10 - 1,200 Ohms |
| Load Capacity Switchable | 100 pF, 200 pF, 300 pF, 420 pF, 520 pF |
| Output Impedance | 50 Ohms |
| Gain MM / MC | RCA: 40, 50, 60 dB / XLR: 46, 56, 66 dB |
| Signal to Noise Ratio | 91 dBA |
| THD | 0.019% |
| RIAA Accuracy | Within 0.3 dB / 20 Hz - 20 kHz |
| Subsonic Filter | 20 Hz / -12 dB |
| Inputs | RCA & XLR |
| Outputs | RCA & XLR |
| Power Supply | 2 x 18 V / 300 mA DC; 220 - 240 V, 50 Hz |
| Power Consumption | 150 mA DC <1 Watt Standby |
| Dimension (W x H x D) | 206 x 72 x 210 mm (With Sockets) |
| Weight | 2,000 g Without Power Supply |
