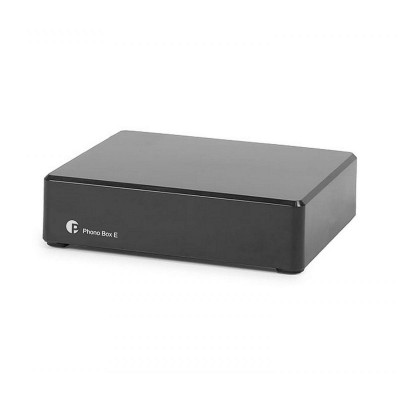

Phono Box E
Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry level price.
Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference.
Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc.) of your amplifier.
Key Features
- Amplification and RIAA equalisation for MM cartridges
- Design principle inspired by Dr. Sykora
- SMD circuitry
- Special low noise components
- Internal metal shielding
- Small size allows installation close to record player
- Gold plated RCA connection sockets
- Outboard power supply included
| Specifications | |
| Input Impedance | 47 kohms |
| Input Capacitance | 120 pF |
| Gain | 40 dB |
| Output Voltage (Typically) | 500 mV / 1 kHz at 5 mV / 1 kHz |
| Noise Floor | 88 dB (A Weighted) |
| THD | <0.05% |
| RIAA Deviation | Deviation Max. 0.5 dB / 20 Hz - 20 kHz |
| Input | 1 Pair RCA Socket |
| Output | 1 Pair RCA Socket |
| Outboard Power Supply | 18 V / 500 mA DC; 220 - 240 V, 50 Hz |
| Standby Power Consumption | < 1 Watt |
| Power Consumption | 20 mA DC |
| Dimension W x H x D (D with Sockets) | 120 x 32 x 100 (106) mm |
| Weight | 269 g Without Power Supply |
