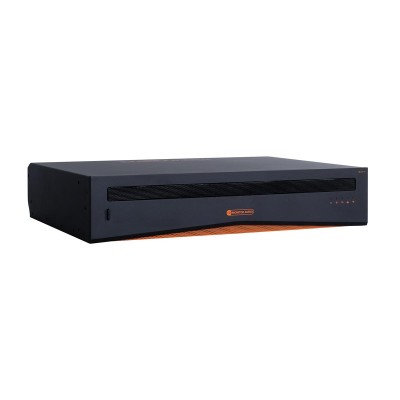

IA750-4
In a larger installation where pure power is required, the Monitor Audio IA750-4 is the ideal choice. A 2U full width high-power amplifier, it features full DSP matrix configuration and is simple to install and use. But power is its trump card: four channels of 750 W each deliver the most impressive home theatre sound imaginable. It’s capable of getting the very best out of any system and is the perfect partner for Monitor Audio’s THX Ultra certified Cinergy home theatre system.
Key Features
- 4 x 750 W
- Fully customisable DSP amplifier with web configurator
- Full width 2U rack format
- High performance Class D amplifiers ensure excellent power and sound delivery
- Power Sharing technology
- Supports 70/100V line level speakers
| Specifications | |
| Channels | 4 |
| Output Power @ 2 Ohms | 4 x 750 W SE |
| Output Power @ 4 Ohms | 4 x 750 W SE, 2 x 1500 W BTL |
| Output Power @ 8 Ohms | 4 x 400 W SE, 2 x 1500 W BTL |
| Output Power @ 70 V | 2 x 1200 W BTL |
| Output Power @ 100 V | 2 x 1500 W BTL |
| Maximum Total Output Power, All Channels Driven | 3000 W |
| Power Consumption | 700 W |
| Thermal Output | 2400 BTU |
| Polarity (Default) | Non-Inverting |
| Dimensions | 88 x 440 x 329 mm (3 6/16" x 17 5/16" x 12 15/16”) |
| Output Voltage | 80 Vp / 160 Vpp (SE Unloaded), 160 Vp / 320 Vpp (BTL Unloaded) |
| Signal to Noise Ratio | >108 dB (A-Weighted, 20 Hz – 20 kHz, 8 Ohm Load) |
| THD+N (Typical) | <0.05% (20 Hz – 20 kHz, 8 Ohm Load, 3 dB Below Rated Power) |
| Frequency Response | +0/-0.25 dB 20 Hz - 20 kHz (8 Ohm Load, 3 dB Below Rated Power) |
| Protection Circuits | Short Circuit -, DC, Undervoltage -, Temperature – and Overload Protection |
| Power Supply | Switch Mode Power Supply with Power Factor Correction (PFC) and Standby Converter |
| Operating Voltage/Frequency | Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz |
| Standby Consumption | <0.5 W |
| Accessories | Rack Mount Kit (Pre-Installed) |
| Power Ratings | 1% THD @ 120 VAC and 230 VAC |
| Cabinet Finish | Black Anodised |
* SE - Single Ended
** BTL - Bridge Tied Load
*** BTU - British Thermal Unit
