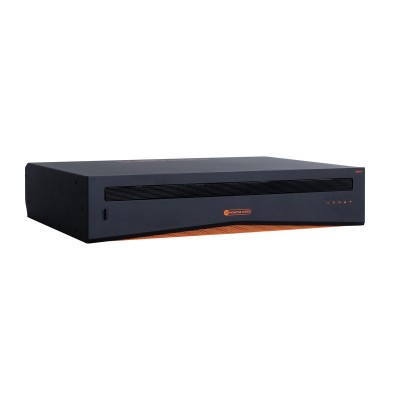

IA750-2
The IA750-2 is perfect for larger installations and outdoor systems. It offers two channels of 750 W each, plus it is ideal for subwoofer installations thanks to its power sharing technology where it can deliver 1500 W to Monitor Audio’s Cinergy Sub15. A 2U full width high power amplifier, it features full DSP matrix configuration using a web app configurator and is a breeze to install and use.
Key Features
- 2 x 750 W
- Fully customisable DSP amplifier with web configurator
- Full width 2U rack format
- High performance Class D amplifiers ensure excellent power and sound delivery
- Power Sharing technology
- Supports 70/100V line level speakers
| Specifications | |
| Channels | 2 |
| Output Power @ 2 Ohms | 2 x 750 W SE |
| Output Power @ 4 Ohms | 2 x 750 W SE, 1 x 1500 W BTL |
| Output Power @ 8 Ohms | 2 x 400 W SE, 1 x 1500 W BTL |
| Output Power @ 70 V | 1 x 1200 W BTL |
| Output Power @ 100 V | 1 x 1500 W BTL |
| Maximum Total Output Power, All Channels Driven | 1500 W |
| Power Consumption | 350 W |
| Thermal Output | 1200 BTU |
| Polarity (Default) | Non-Inverting |
| Dimensions | 88 x 440 x 329 mm (3 6/16" x 17 5/16" x 12 15/16”) |
| Output Voltage | 80 Vp / 160 Vpp (SE Unloaded), 160 Vp / 320 Vpp (BTL Unloaded) |
| Signal to Noise Ratio | >108 dB (A-Weighted, 20 Hz – 20 kHz, 8 Ohm Load) |
| THD+N (Typical) | <0.05% (20 Hz – 20 kHz, 8 Ohm Load, 3 dB Below Rated Power) |
| Frequency Response | +0/-0.25 dB 20 Hz - 20 kHz (8 Ohm Load, 3 dB Below Rated Power) |
| Protection Circuits | Short Circuit -, DC, Undervoltage -, Temperature – and Overload Protection |
| Power Supply | Switch Mode Power Supply with Power Factor Correction (PFC) and Standby Converter |
| Operating Voltage/Frequency | Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz |
| Standby Consumption | <0.5 W |
| Accessories | Rack Mount Kit (Pre-Installed) |
| Power Ratings | 1% THD @ 120 VAC and 230 VAC |
| Cabinet Finish | Black Anodised |
* SE - Single Ended
** BTL - Bridge Tied Load
*** BTU - British Thermal Unit
