DAC Box S2+
Digital to Analogue Converter
DAC Box S2+ comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32 bit / 768 kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2+ also comes with five digital filters for sound-shaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution datas up to 24 bit / 192 kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. Unwanted noise coming in through USB is double filtered to suppress them to a level where it can’t affect audio. The new aluminium/metal casing ensures highest aesthetics and protects against vibration and interference!
Key Features
- High end ESS Sabre ESS9038 DAC
- Proprietary clock circuity design
- Organic polymer capacitors and thin film miniMELF resistors
- 32 bit / 768 kHz PCM support
- DSD64, DSD128 & DSD256(DSD over PCM)
- Up to 24 bit / 192 kHz for optical & coax inputs
- 5 selectable digital filter characteristics
- 1 proprietary optimum transient digital filter
- Synchronisation of all internal oscillators
- Jitter as low as 100 Femtoseconds!
- Gold plated four layer PCB
- Full alu/metal sandwich casing
| Specifications | |

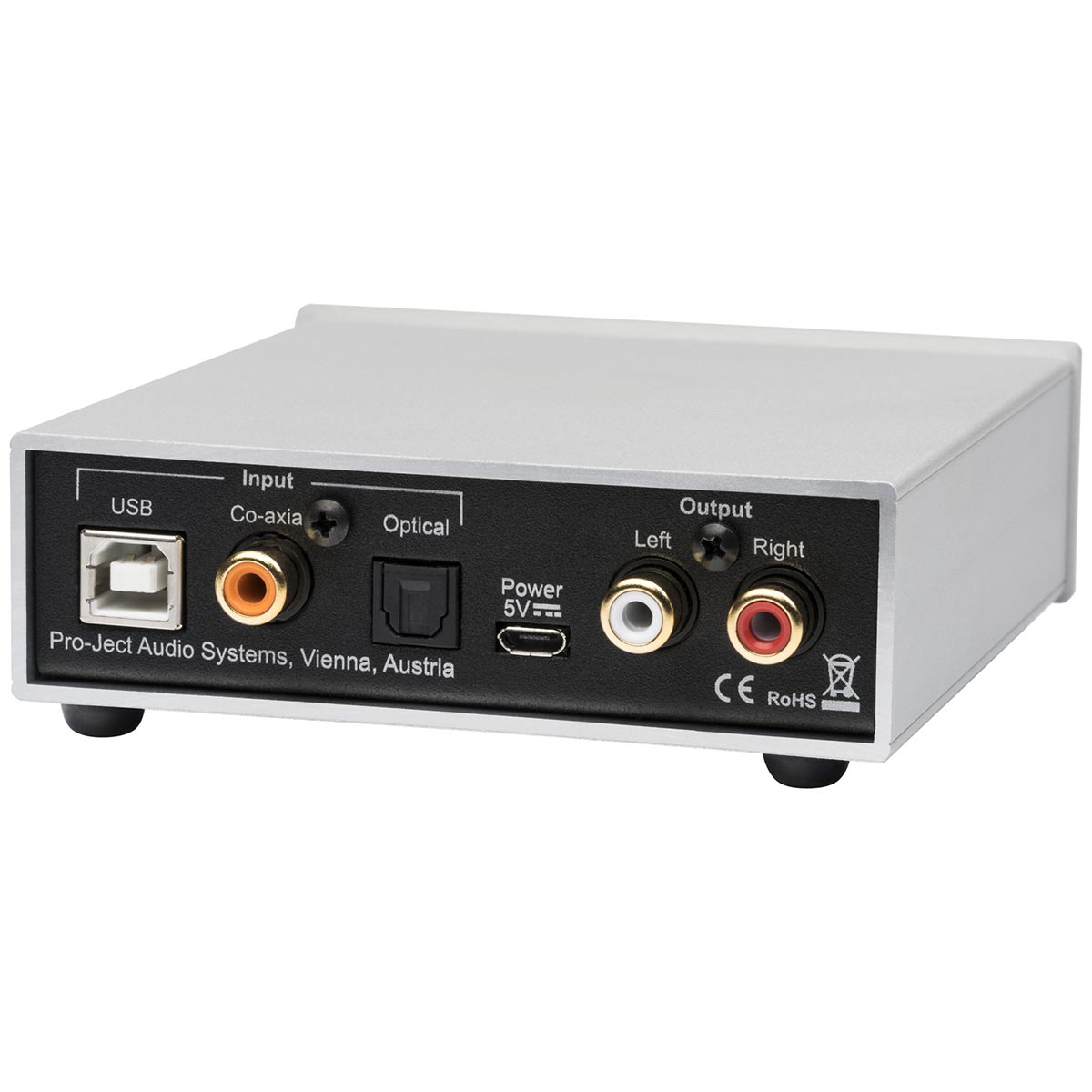

| Digital Inputs | 1 x USB (B), 1 x Coaxial (RCA), 1 x Optical (Toslink) |
| D/A Converter | 1 x ESS9038Q2M 32-Bit Playback Formats |
| Filter Settings | 5 Different Selectable on Front |
| USB | Up to DSD256, PCM up to 32 Bit / 768 kHz |
| Coaxial | PCM up to 24 Bit / 192 kHz |
| Optical | PCM up to 24 Bit / 192 kHz |
| Frequency Response | 20 Hz - 20 kHz |
| THD | 0.0007% 0 dB, 2 V RMS, 1 kHz |
| Dynamic Range | 120 dB |
| Output | 1 Pair of RCA/Cinch Sockets |
| Outboard Power Supply | 5 V / 1 A DC (Included) |
| Dimensions (W x H x D) | 103 x 37 x 122 mm (Including Knob and Connectors) |
| Weight | 355 g (Without Power Supply) |
