CD11MKII
The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players.

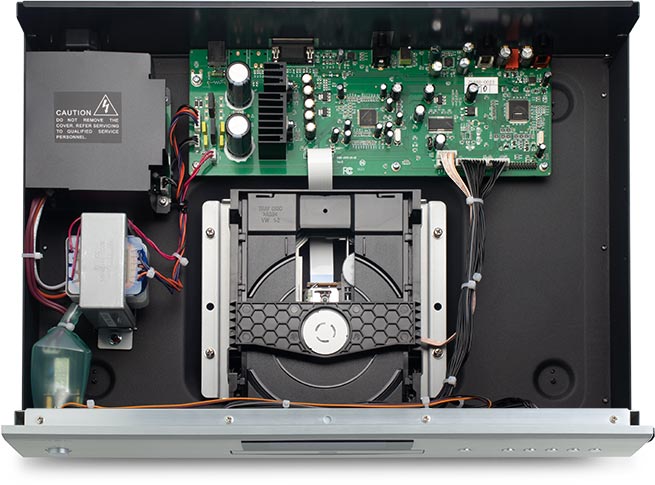

The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.
Digital to Analogue conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits. This sound-first design renders music on a large, open sound stage with both power and finesse.
Intuitive CD control functions on the front panel and included remote control ensure simple operation. The front panel graphic display shows playback status and disc meta data information including the title and artist.
The CD11MKII is available in both black and silver colours.
Key Features
- Texas Instruments premium 32-bit/384 kHz Digital to Analogue Converter
- Smooth tray loading CD mechanism
- Outputs including RCA analogue and Coaxial digital
- 12 volt trigger input
- Includes remote control
Engineered with Care
| Specifications | |
| Total Harmonic Distortion (THD) | 0.009% @ 1 kHz |
| Frequency Response | 20 Hz - 20 kHz ±0.5 dB |
| S/N Ratio (IHF "A" Weighted) | >125 dB |
| Dynamic Range | >99 dB |
| Digital to Analogue Converter | Texas Instruments |
| Channel Balance | ±0.5 dB |
| Channel Separation | >115 dB @ 10 kHz |
| Intermodulation Distortion | 0.009% @ 1 kHz |
| Phase Linearity | ±0.5 Degrees |
| Analogue Output Impedance | 470 Ω |
| Digital Output | 0.5 V, Peak to Peak |
| Load Impedance | 75 Ω |
| Dimensions (W x H x D) | 430 x 98 x 314 mm (17" x 3.8" x 12.4") |
| Front Panel Height | 80 mm (3.15") |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 15 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 6.2 kg (13.7 lb) |
| BTU Rating | 40 BTU/h |
