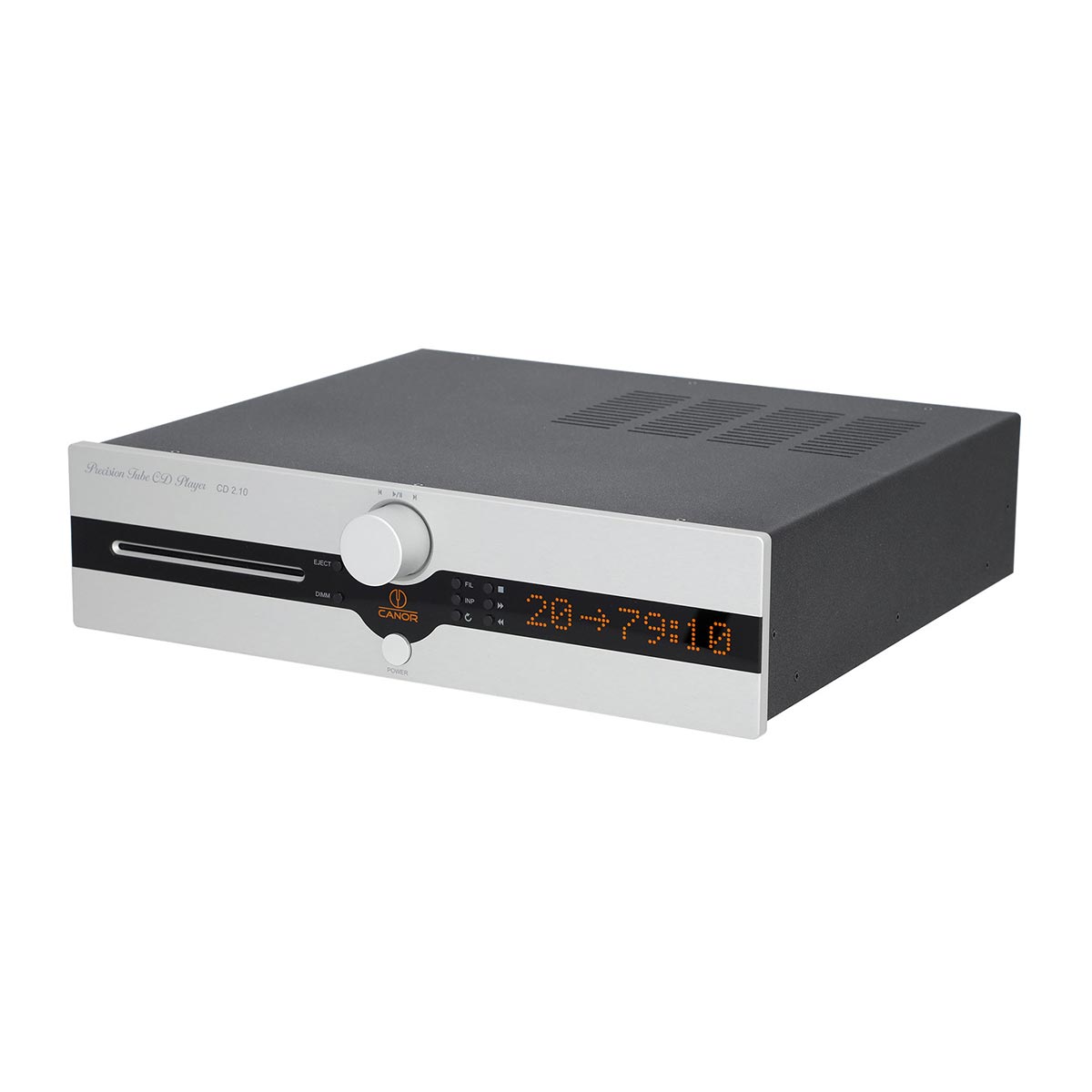

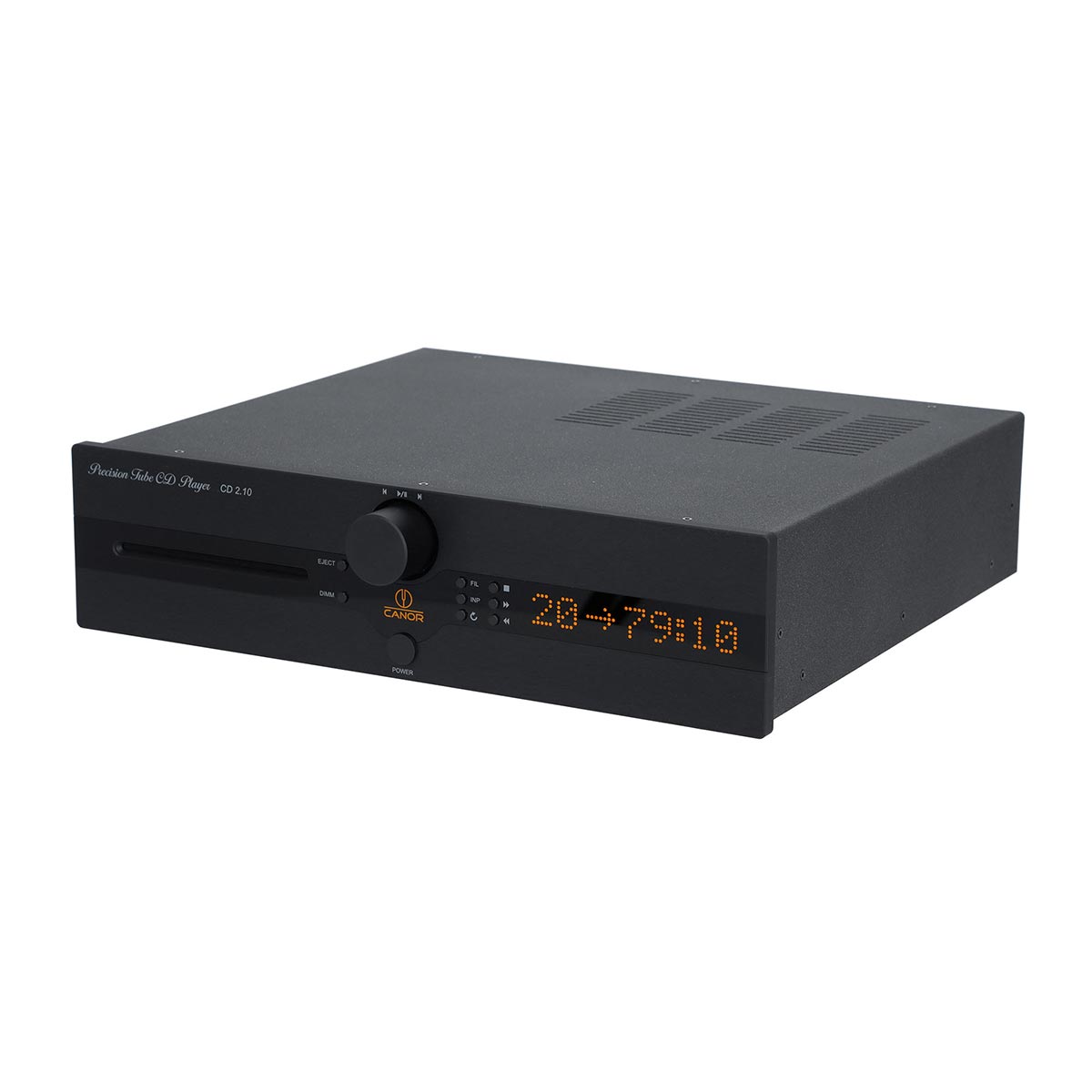

Canor CD 2.10 Tube CD player / DAC
Canor CD 2.10 is a tube DA converter / CD player utilizing AK4490 32-bit DA converter.
Highlights
- It operates also as a high-quality DAC
- Analogue and digital parts are strictly separated and independently powered
- Super symmetrical passive filters optimised for the highest steepness
Main Features
Sample Rate Converter
The Canor CD 2.10 is equipped with a sample rate converter that up-samples all the sample rates (from all the inputs – USB, SPDIF as well as CD) on the level 192 kHz.
The sample rate converter provides the same low jitter for all inputs and sample rates. The jitter is up to 50 ps.

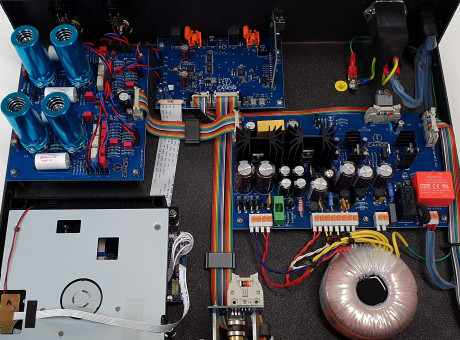

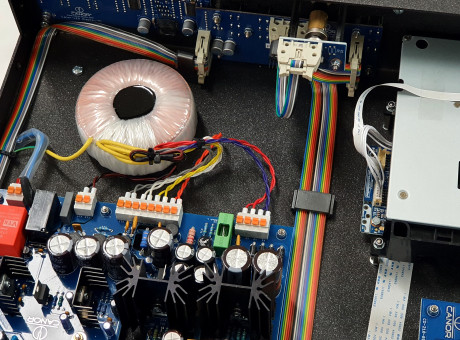

Input Toroid Transformer
Input toroid transformer is relatively small in size and is characterized by a low radiated magnetic field and low mechanical hum.

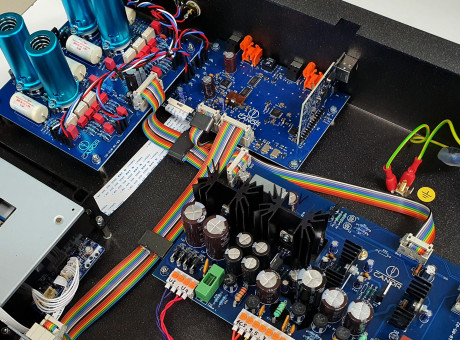

Analogue and Digital Parts
The device is optimized for USB playback (USB - PCM 32 bit/768 kHz, DSD64, 128 and 256).
Product Features
- A tube DA converter/CD player utilizing AK4490 32-bit DA converter
- A silent slot-in CD drive mechanism
- PCB’s utilize our premium CMT™ technology
- Analogue signal is being processed by strictly symmetrical tube circuits
- Coaxial input separated by a high-frequency transformer
- Super symmetrical passive filters optimized for the highest steepness
| Specifications | |
| Frequency Range | 20 – 20,000 Hz ±0.8 dB |
| Output Impedance | <150 Ω |
| Total Harmonic Distortion | <0.005% / 1 kHz |
| Signal-to-Noise Ratio | >102 dB (20 Hz - 20 kHz) |

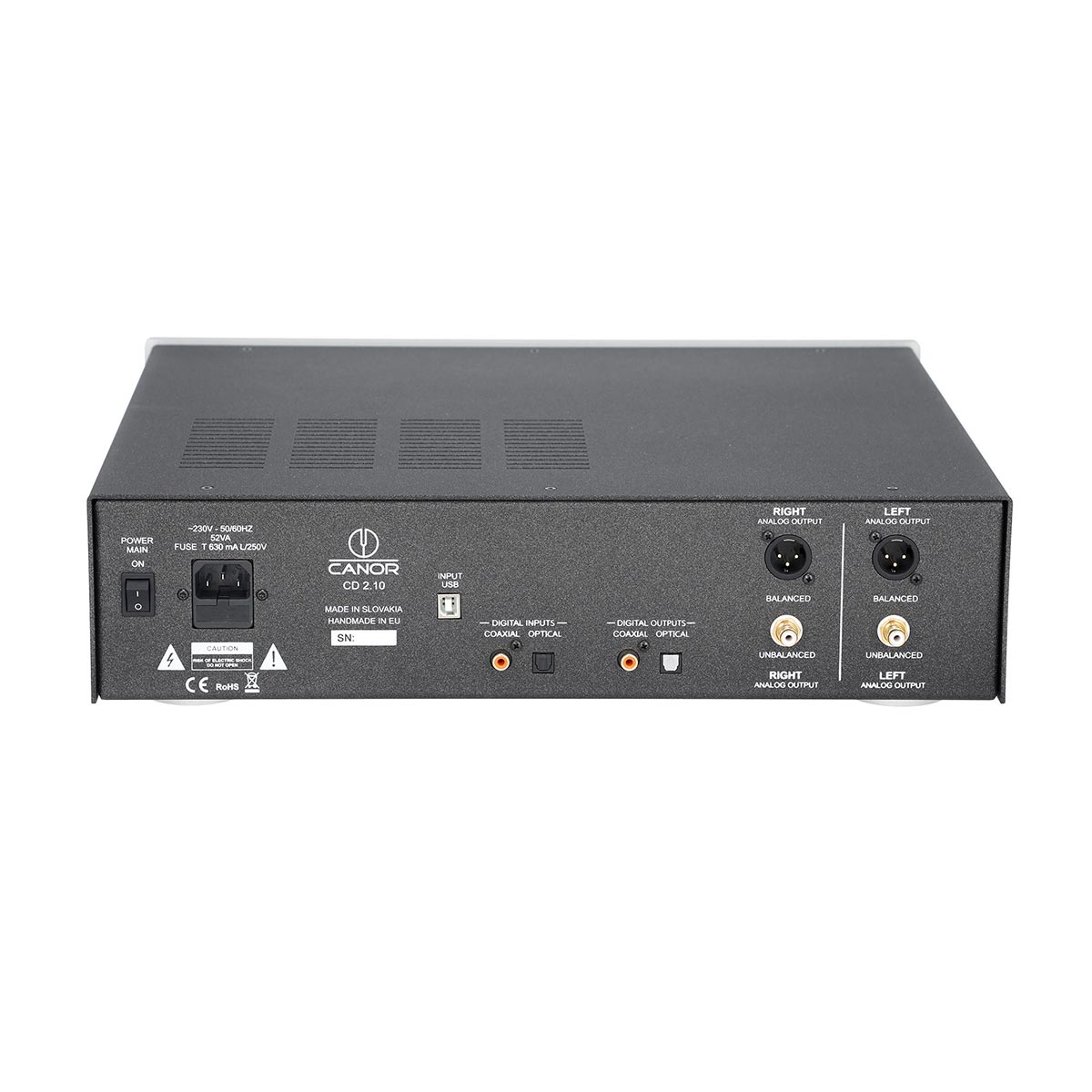

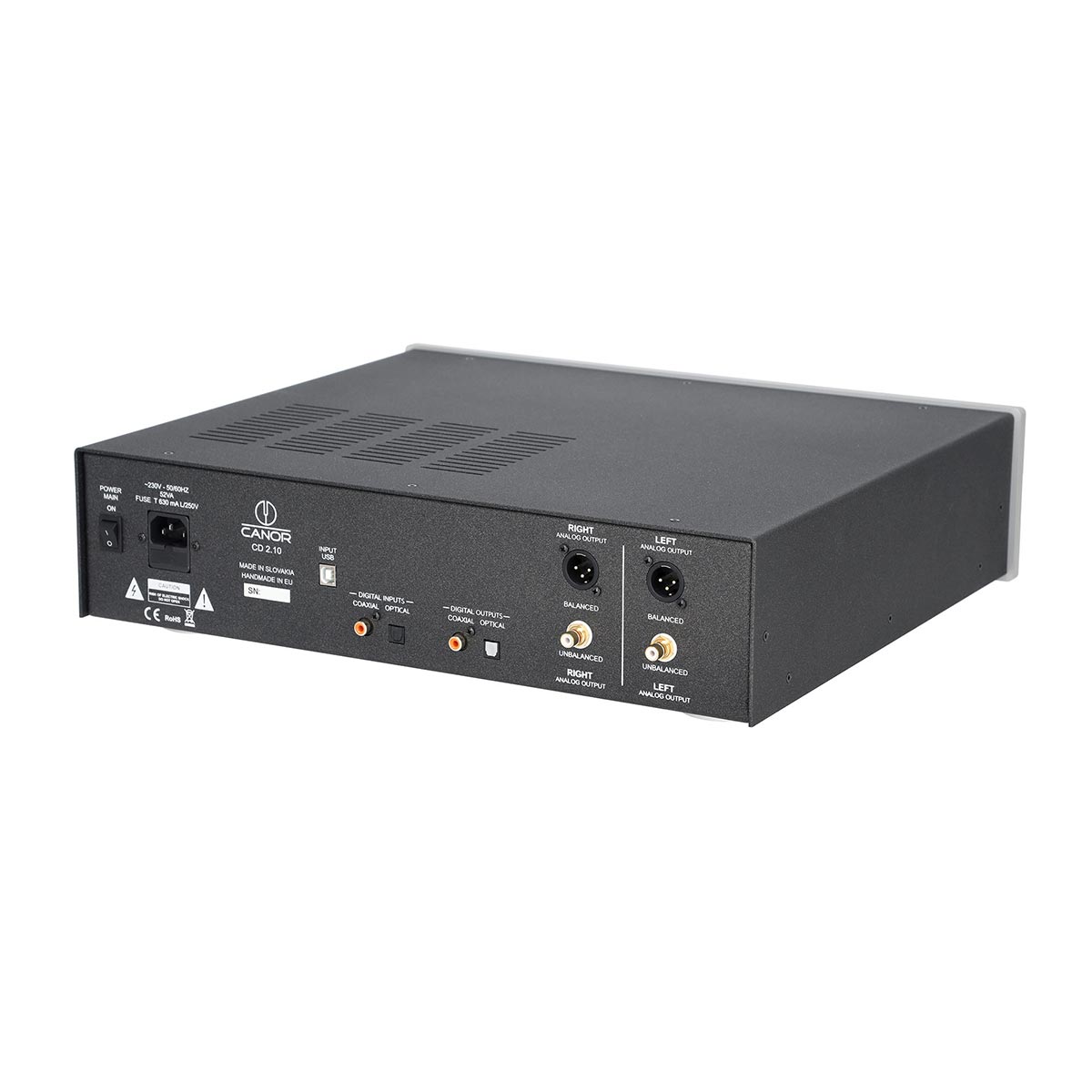

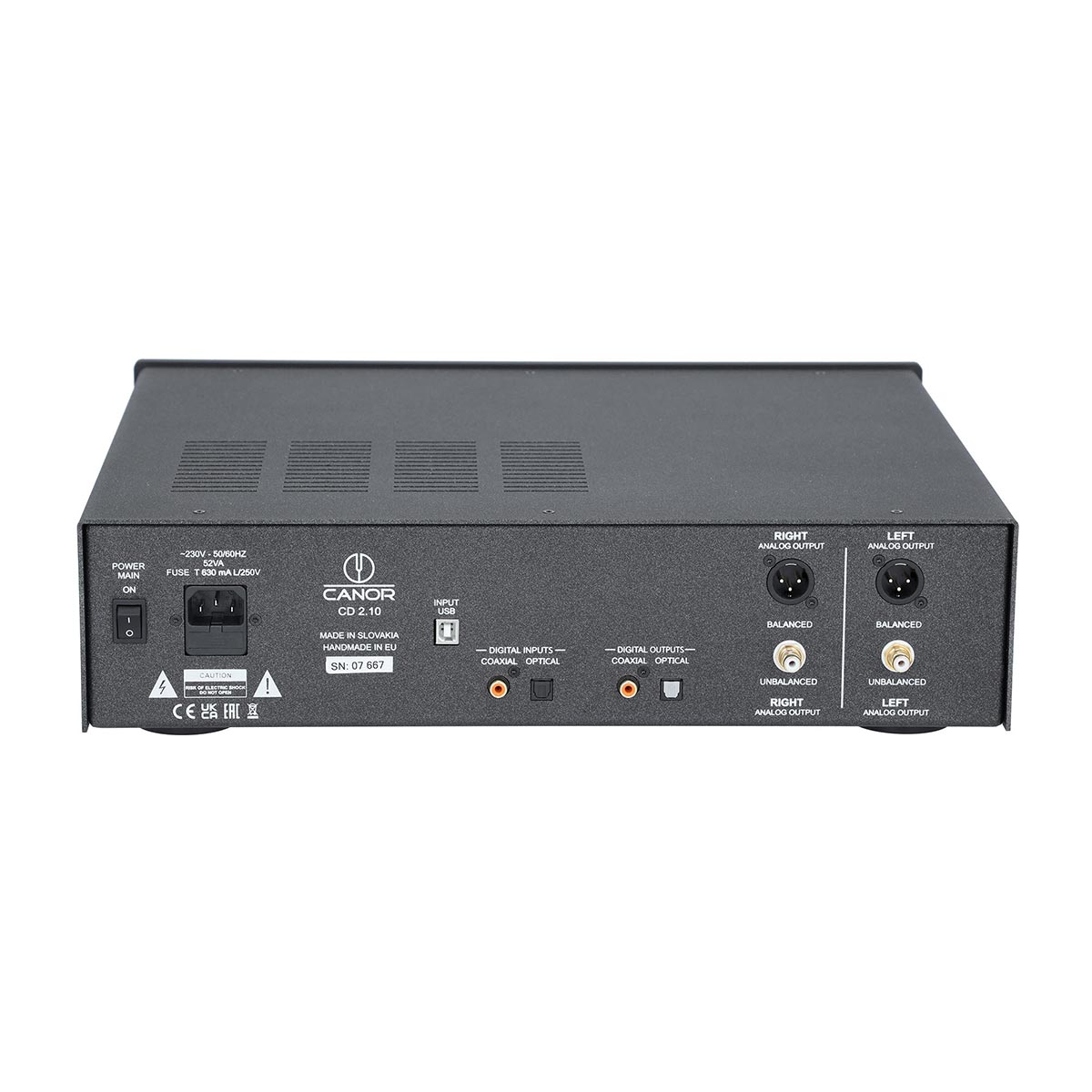

| Outputs | RCA / XLR |
| Analogue Output Voltage RCA / XLR | 2 V RMS / 4 V RMS |
| Digital Inputs | USB, Optical and Coax |
| Digital Outputs | Optical and Coaxial |
| Tube Complement | 4 x 6922 |
| Power | 230 V / 50 Hz / 52 VA |
| Dimensions (W x H x D) | 435 x 120 x 405 mm |
| Weight | 12 kg |
