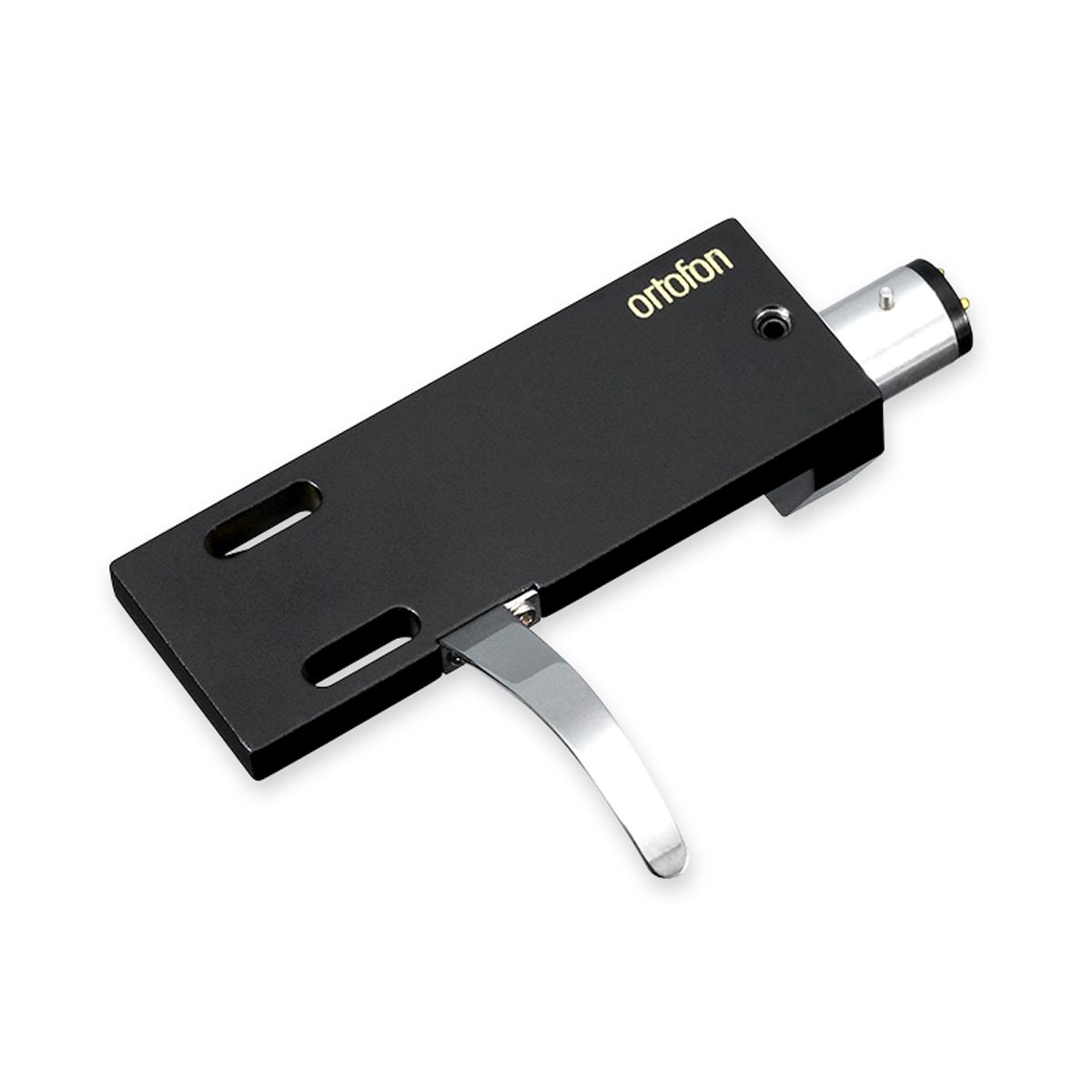

Ortofon LH-4000 Headshell
The LH-4000 is a basic high quality headshell designed specifically for Hi-Fi applications. Providing a clean, minimalist aesthetic, the LH-4000 is great for a wide variety of cartridges, especially recommended for the MC Quintet series.
Special Features:
- Azimuth adjustable, which is beneficial for optimal channel separation
- Ergonomic fingerlift for easy handling

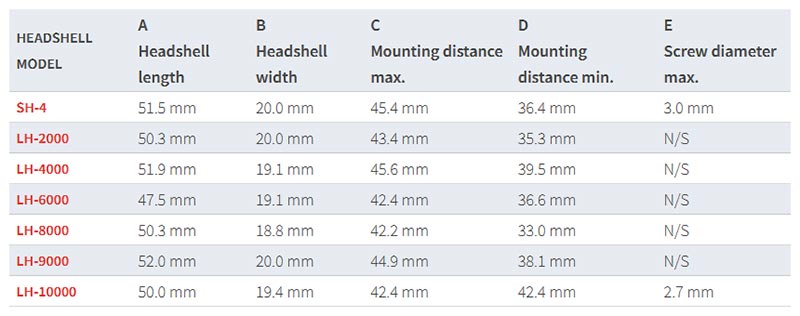

Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align cartridge and tonearm correctly. Please scroll to the bottom of the page to see the headshells mounting dimensions chart.

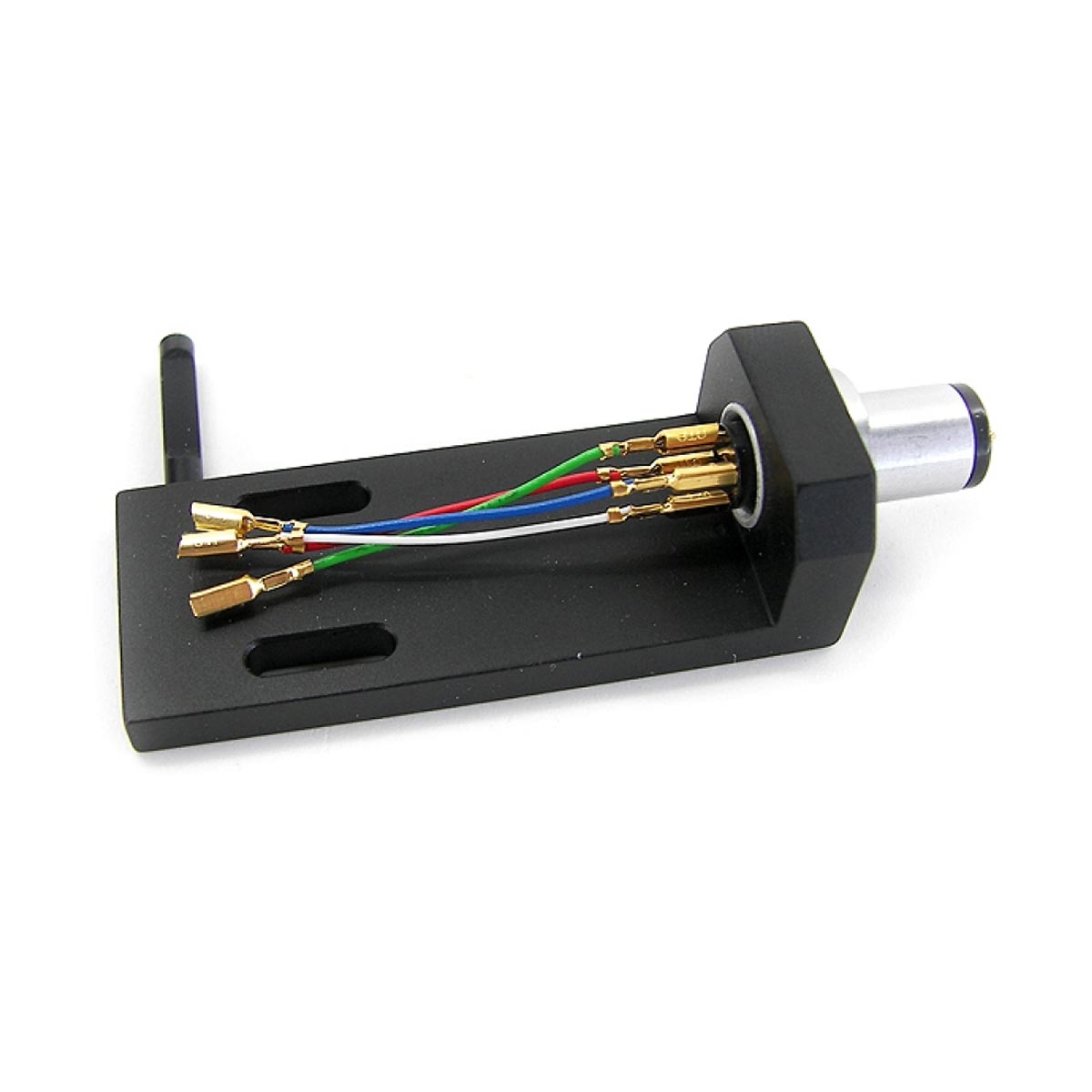

The LH-4000 Comes with Leadwires for Easy and Convenient Connection
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.
We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

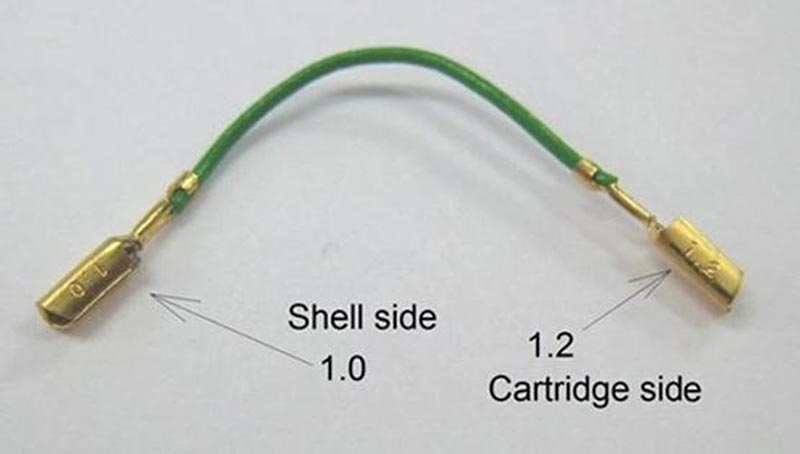

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.
Key Features
- Universal mount
- Solid aluminum build
- Azimuth adjustable by means of hexagon wrench
- PIN conductor - Gold plated
- Weight without screws: 14.3 grams

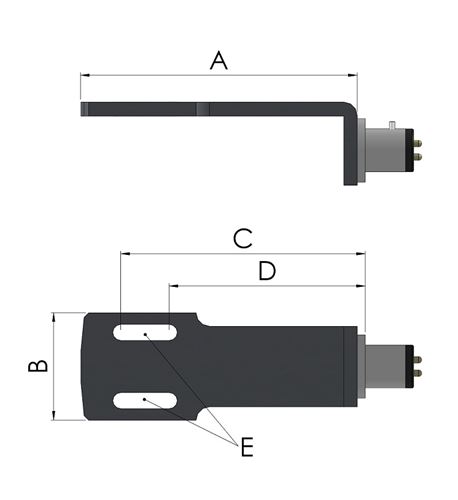

- Headshell length (A): 51.9 mm
- Headshell width (B): 19.1 mm
- Mounting distance max. (C): 45.6 mm
- Mounting distance min. (D): 39.5 mm
