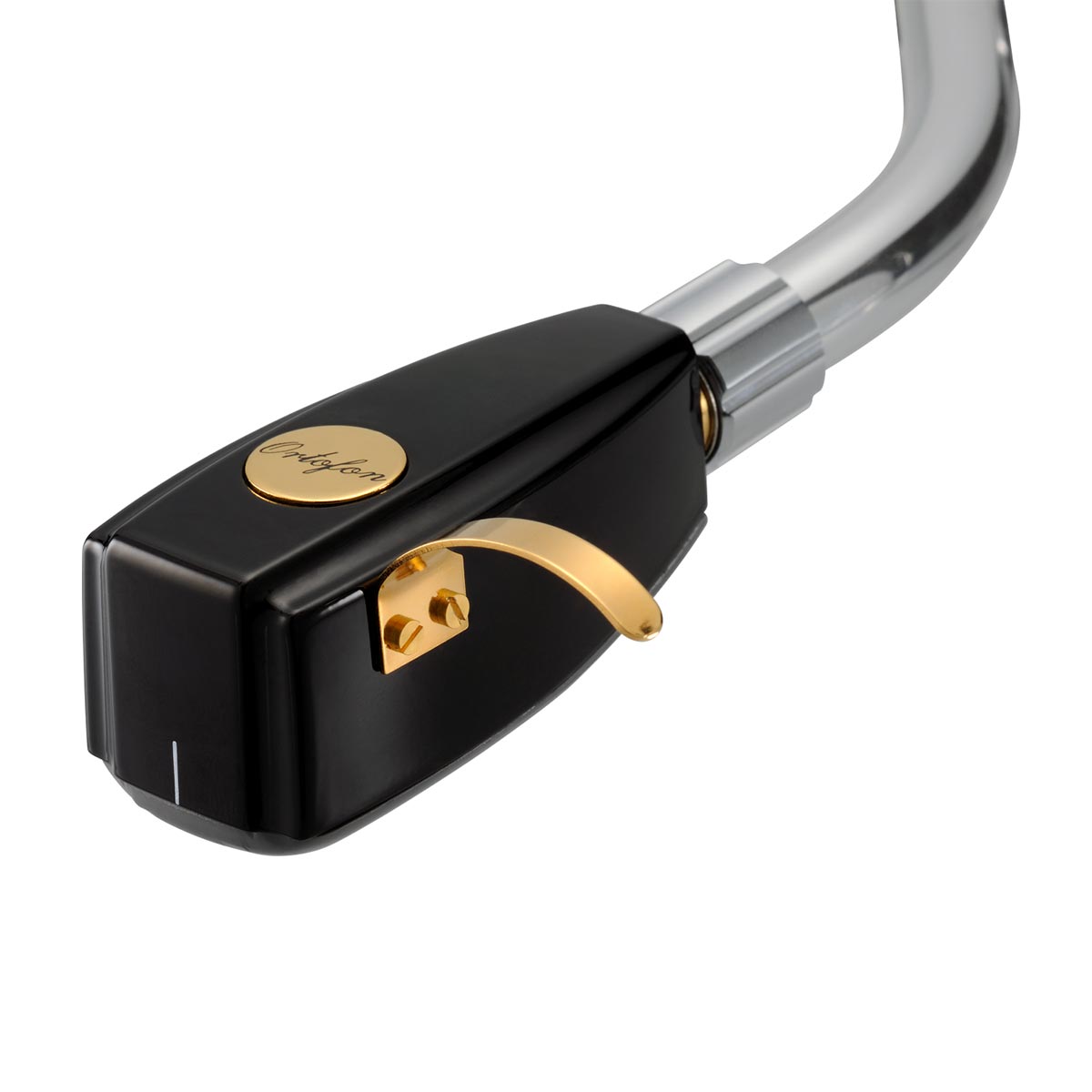

SPU Synergy G
The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.
The SPU Synergy G modernizes the classic SPU design with a number of optimizations designed for optimum compatibility and sonic purity.
For Optimum Compatibility and Sonic Purity
Features
The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.
While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.
| Specifications | |
| Output Voltage at 1 kHz, 5 cm/sec. | 0.5 mV |
| Channel Balance at 1 kHz | 1.5 dB |
| Channel Separation at 1 kHz | 23 dB |
| Channel Separation at 15 kHz | 15 dB |
| Frequency Response | 20 Hz - 20 kHz +2 dB |
| Tracking Ability at 315 Hz at Recommended Tracking Force | 60 µm |
| Compliance, Dynamic, Lateral | 8 µm/mN |
| Stylus Type | Nude Elliptical |
| Stylus Tip Radius | r/R 8/18 µm |
| Tracking Force Range | 3.0-4.0 g (30-40 mN) |
| Tracking Force Recommended | 3.5 g (35 mN) |
| Tracking Angle | 20° |
| Internal Impedance, DC Resistance | 2 Ohm |
| Recommended Load Impedance | 10 - 50 Ohm |
| Coil Wire Material | High Purity Copper (OFC) |
| Cartridge Body Material | Ground Wood and Resin Composite |
| Cartridge Colour | Gloss Black |
| Cartridge Weight | 28 g |
