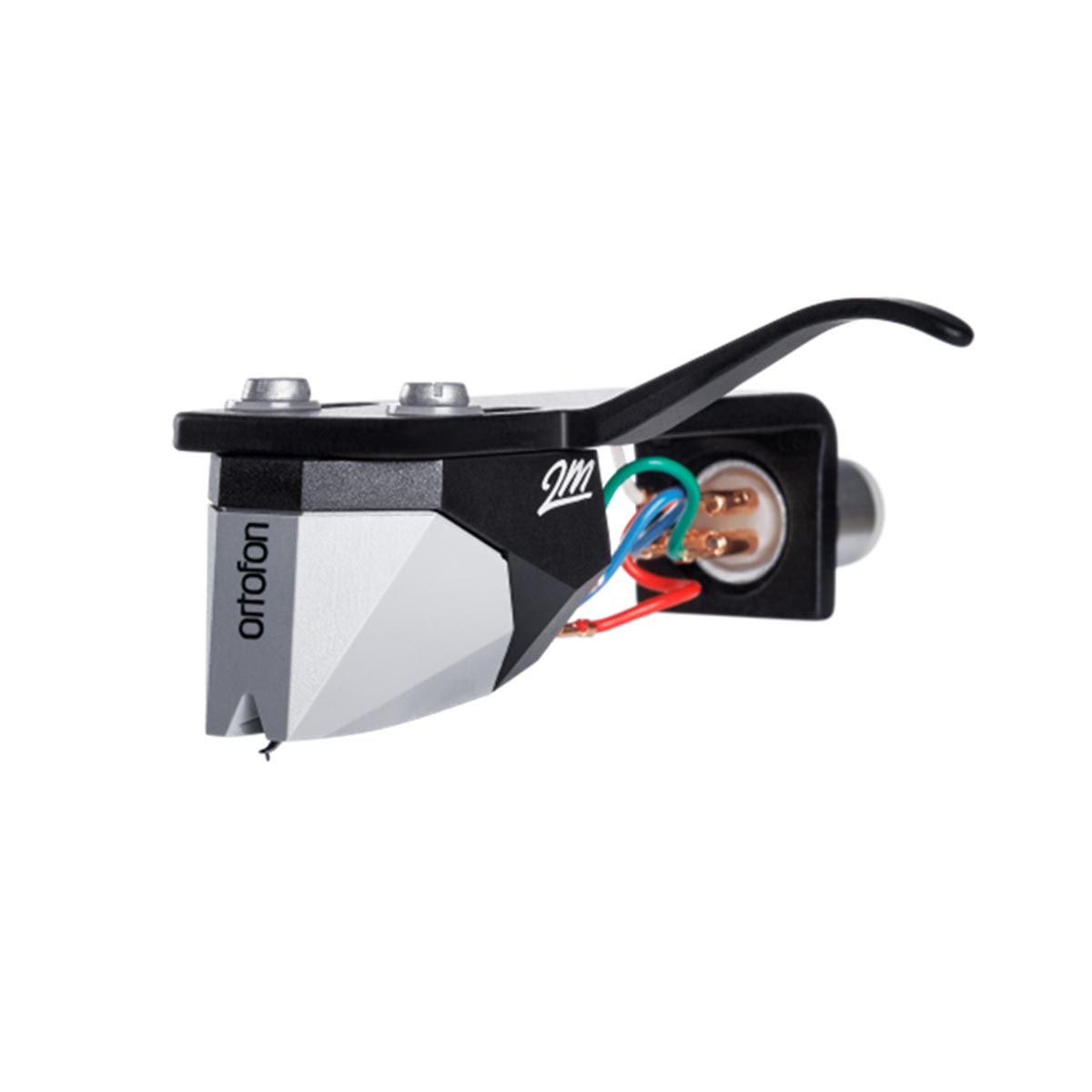

Ortofon 2M 78 Pre-Mounted MM (Moving Magnet) Cartridge

Brand: Ortofon
Product Code: ORT-2M78-SH4-MM-CTG
Warranty: 2 Years
$379.00
Qty:
Ortofon
Truck
Free Shipping On Orders Over $99
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

It's Never Been Easier to Experience

Compatibility

Experience the convenience of the 2M 78 Premounted – a smart and refined choice for those seeking straightforward installation and effortless replacement on their S-shaped tonearm. The SH-4 headshell's resilience and stability are enhanced by its slender and refined design. A robust yet lightweight construction, coupled with an ergonomic, extended finger lift, ensures easy handling and pickup.

Journey back in time with the 2M 78 Mono Premounted Cartridge, specially designed for playing 78 rpm shellac records. Immerse yourself in the authentic nostalgia of mono vinyl records, brought to life with unparalleled precision and fidelity.

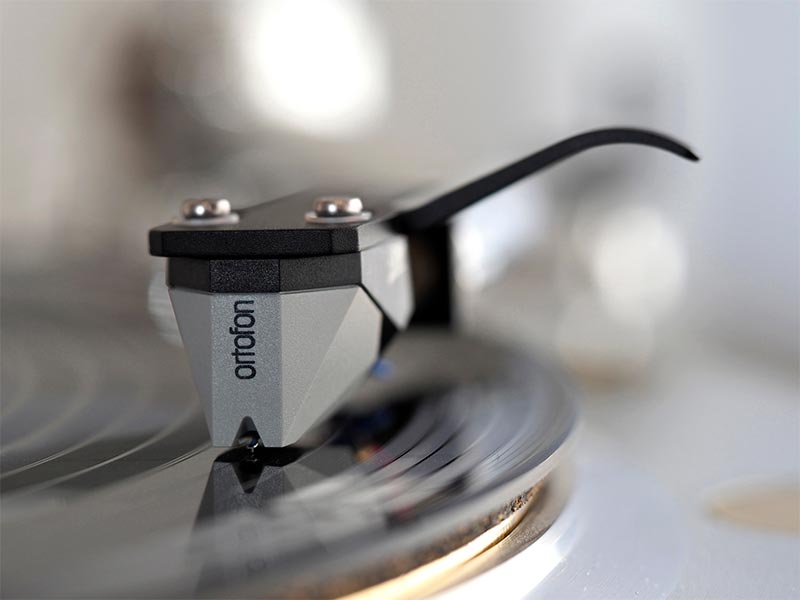

Ortofon 2M 78 Pre-Mounted

Made for Mono

Stylus

The 2M 78 features a stylus' tip with a Spherical diamond, perfect for playback of 78 rpm shellac records. These unique records necessitate a larger stylus profile, and the 2M 78 flawlessly accommodates this requirement, ensuring optimal playback quality and preserving the authenticity of your cherished collection.

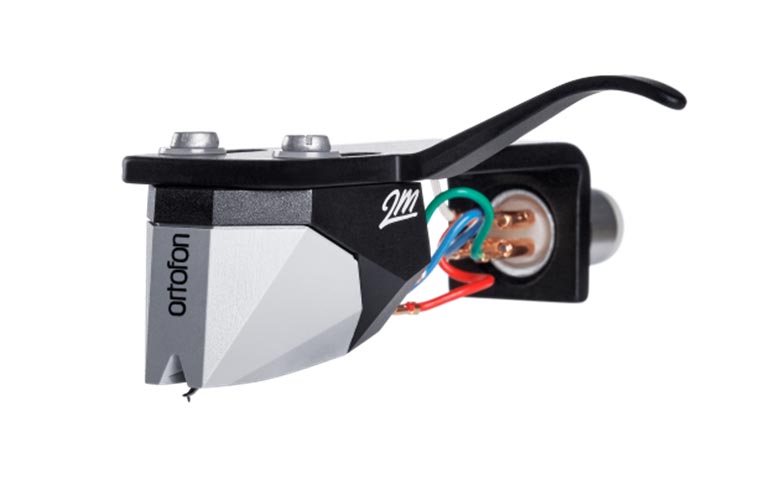

Ortofon 2M 78 Pre-Mounted

Enjoy True Mono

2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

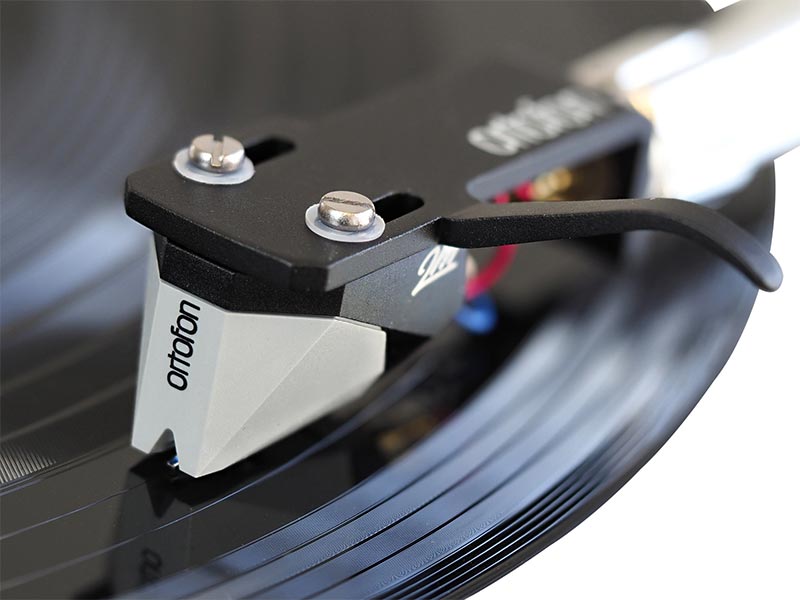

Ortofon 2M 78 Pre-Mounted
Specifications
Output Voltage at 1 kHz, 5 cm/sec. 4 mV
Frequency Response 20 Hz - 20 kHz +3 / -1 dB
Tracking Ability at 315 Hz at Recommended Tracking Force 70 µm
Compliance, Dynamic, Lateral 18 µm/mN
Stylus Type Spherical
Stylus Tip Radius R 65 µm
Tracking Force Range 1.6-20 g (16-20 mN)
Tracking Force Recommended 1.8 g (18 mN)
Tracking Angle 20°
Internal Impedance, DC Resistance 700 Ohm
Internal Inductance 350 mH
Recommended Load Resistance 47 kOhm
Recommended Load Capacitance 150-300 pF
Cartridge Colour, Body/Stylus Black/Grey
Cartridge Weight 7.2 g
Premounted Cartridge Weight 16.7 g
